„Digitus DN-10180“ tinklo plokštė

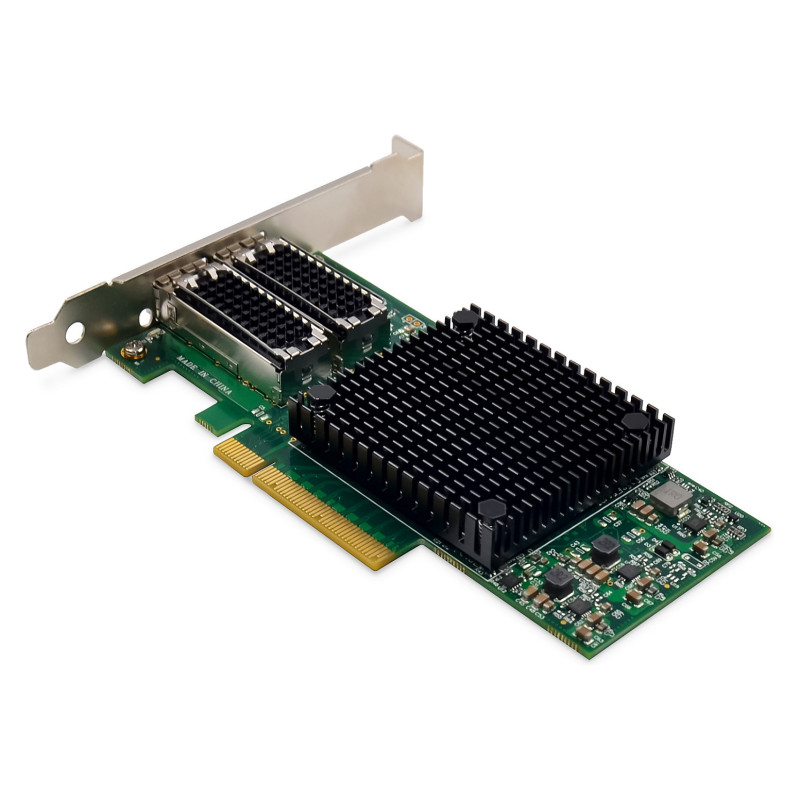

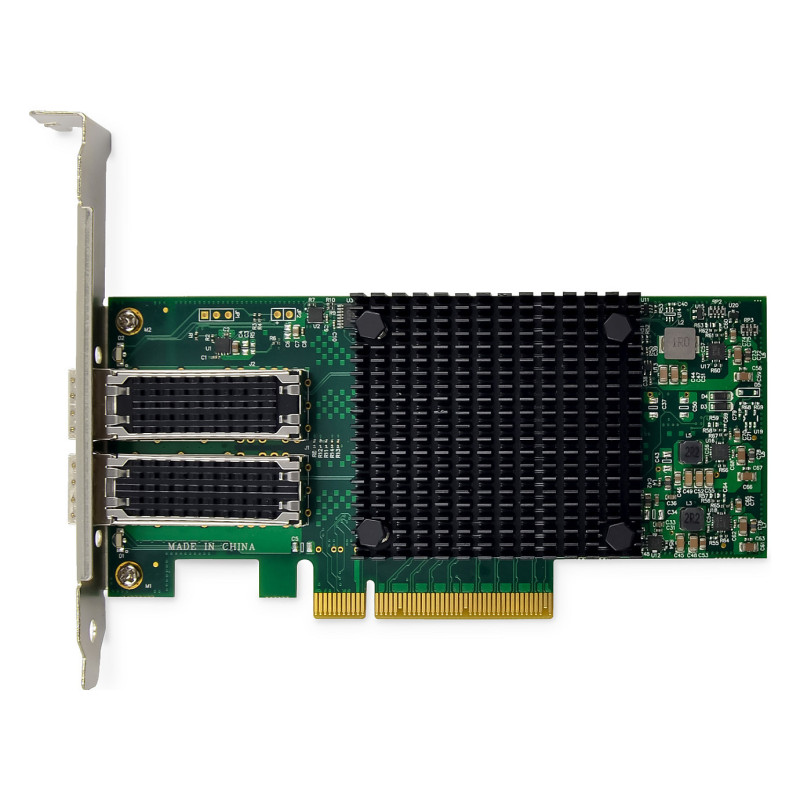

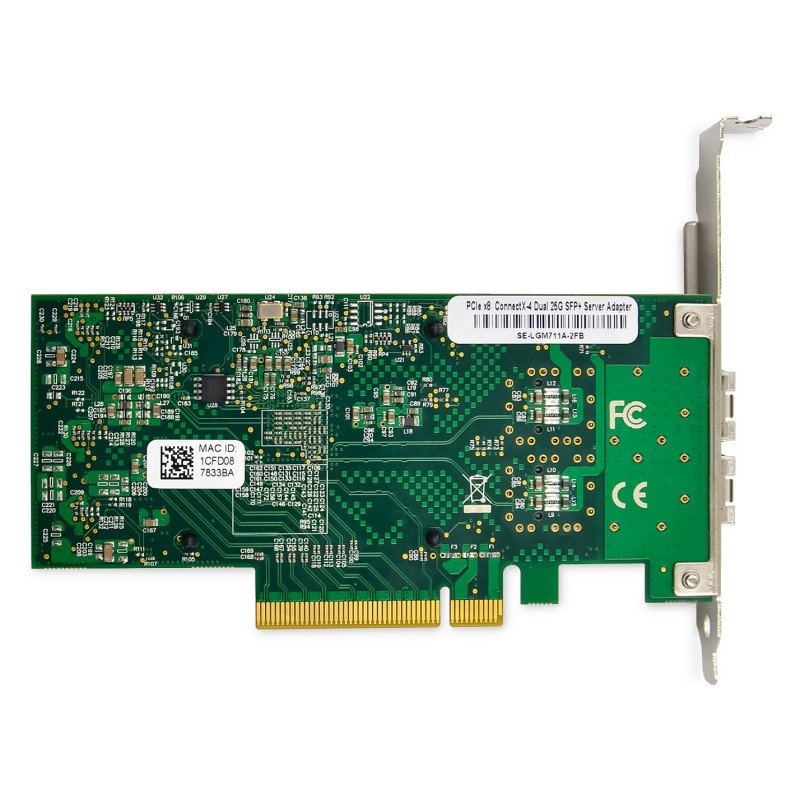

Digitus 2 port 25 Gigabit Ethernet network card, SFP28, PCI Express, Mellanox chipset. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s. Product colour: Black, Green

Introducing the DN-10180 - a high-performance network interface card that is designed to provide reliable and efficient network connectivity for your server or workstation. This card is fully compliant with PCI Express Specification Revision 3.0, 1.1, and 2.0, and supports link rates of 2.5, 5.0, or 8.0GT/s at x8.

- Supports dual-Port 25G,10G, or 1Gb/s SFP+
- Compliant with PCI Express Specification Revision 3.0,1.1 and 2.0,2.5, 5.0, or 8.0GT/s link rate x8
- Support Standards IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2
- Jumbo frame support 9.6KB
- Independent NC-SI SMBus interface

Introducing the DN-10180 - a high-performance network interface card that is designed to provide reliable and efficient network connectivity for your server or workstation. This card is fully compliant with PCI Express Specification Revision 3.0, 1.1, and 2.0, and supports link rates of 2.5, 5.0, or 8.0GT/s at x8. The DN-10180 features auto-negotiation capabilities that allow it to operate at x8, x4, x2, or x1, making it compatible with a wide range of devices. It also supports MSI/MSI-X mechanisms for efficient interrupt handling and dual-Port 25G, 10G, or 1Gb/s SFP+ connectivity for flexible network deployment. This network interface card is designed to support a wide range of industry standards, including IEEE802.3by, 25G supporting all FEC modes, IEEE802.3az Energy Efficient Ethernet, IEEE802.3ap based auto-negotiation and KR startup, and IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2. The DN-10180 also supports jumbo frame support up to 9.6KB, independent NC-SI SMBus interface, independent stand-by and wake-on-Lan signals, hardware-based reliable transport, collective operation offloads, and PeerDirect RDMA (aka GPUDirect communication acceleration). Other key features of the DN-10180 include 64/66 encoding, extended reliable connected transport, dynamically connected transport, RDMA over Converged Ethernet (RoCE), TCP/UDP/IP stateless offload, LSO.LRO. checksum offload, and hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks. This network interface card also supports SR-IOV, Multi-function, Enhanced QoS, VMware support, and up to 256 virtual functions and 8 physical functions per port. It offers guaranteed QoS for VMs and is compatible with OpenMPI, IBM PE, OSU MPI, and Intel MPI protocols. The DN-10180 is designed to support remote boot over Ethernet, iSCSI, PXE, and UEFI and is compatible with a wide range of operating systems, including FreeBSD, Linux 5.x and above, VMware 5.5/6.0/6.5/6.7, Windows Server 2008/2012/2016/2019, and Win7/Win8/Win8.1/Win10 32 or 64bit. Overall, the DN-10180 is a high-performance network interface card that offers reliable and efficient network connectivity for your server or workstation. It is designed to meet the demands of modern data centers and is compatible with a wide range of devices and operating systems.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 2
Fiber optic connector: SFP28
PCI version: 3.0
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 25000 Mbit/s
Feature: Wake-on-LAN ready
Feature: Jumbo frames support
Jumbo frames: 9600
Feature: Quality of Service (QoS) support
Feature: iSCSI support

Design

Component for: PC/Server
Product colour: Black, Green
Feature: Internal
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported: Yes
Other operating systems supported: FreeBSD
Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019

Weight & dimensions

Width: 70 mm
Depth: 20 mm
Height: 150 mm
Weight: 150 g

Packaging data

Package width: 155 mm
Package depth: 30 mm
Package height: 220 mm
Package weight: 257.5 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual

Logistics data

UK Trade Tariff code: 84718000

Other features

Feature: PCI-SIG* SR-IOV Capable
Feature: Intelligent Offloads
Package volume: 1023 cm³
