„Digitus DN-10130-1“ tinklo plokštė

Digitus Gigabit Ethernet PCI Express Network Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Black

Unprecedented speed is now available over your existing network cabling - Built to run the fastest network applications

- Adds an extra Gigabit port to a PC using PCI Express
- Gigabit data transfer rates of up to 1000 Mbps

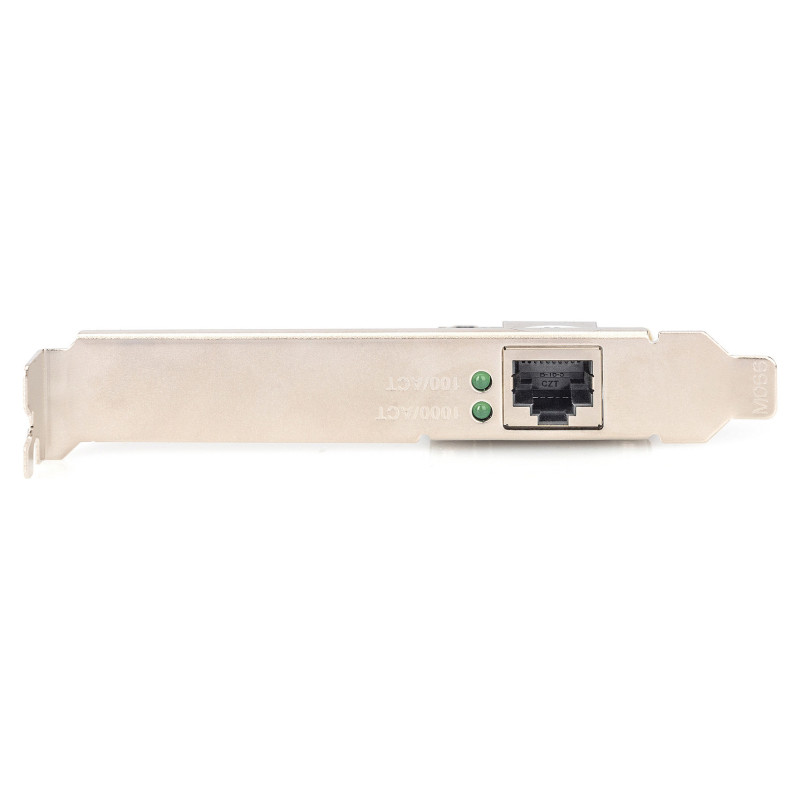

- Space-saving, low-profile plate

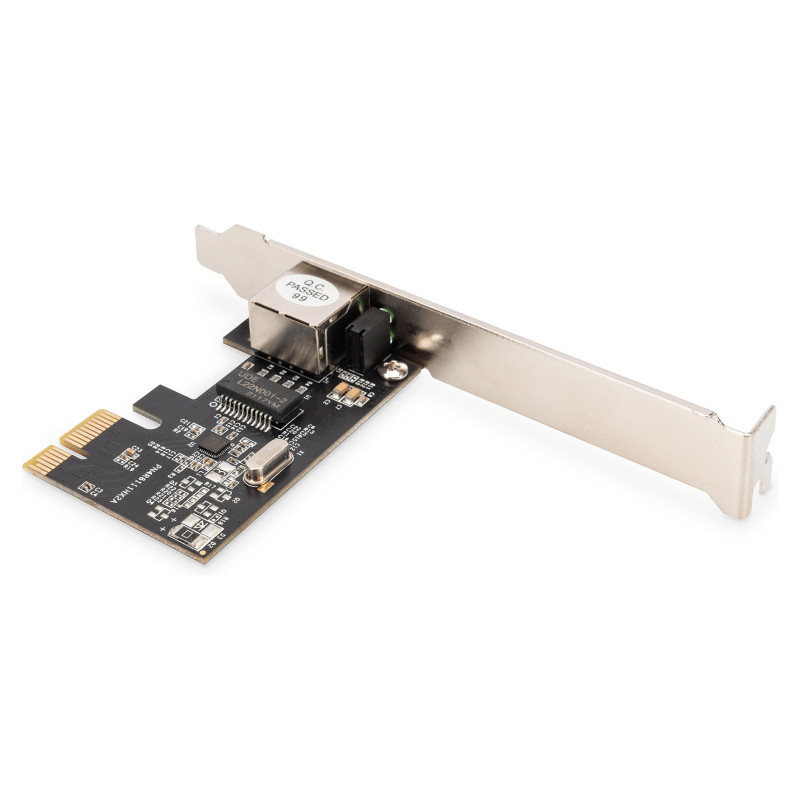

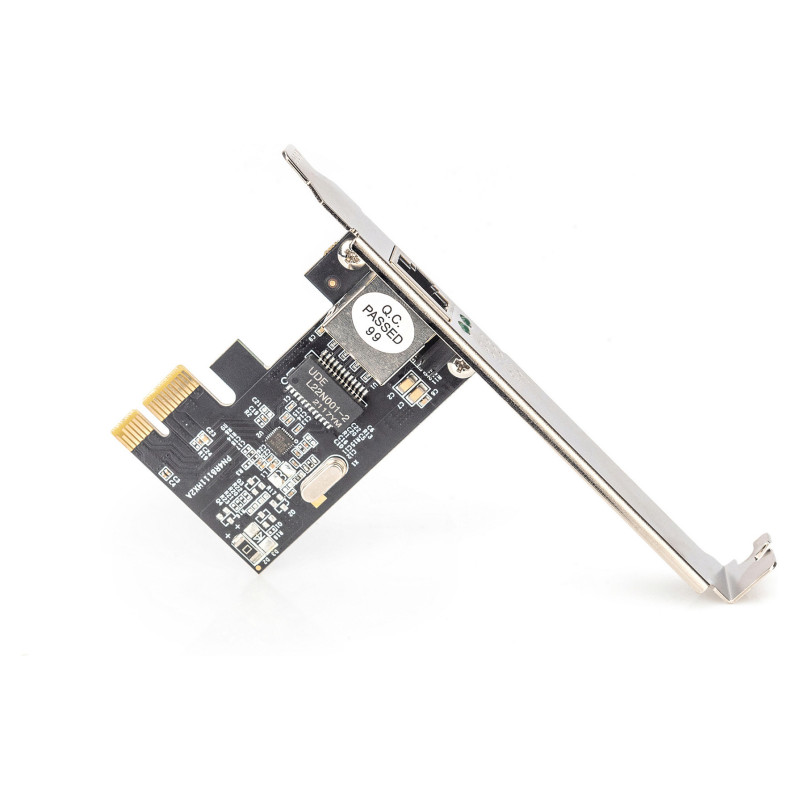

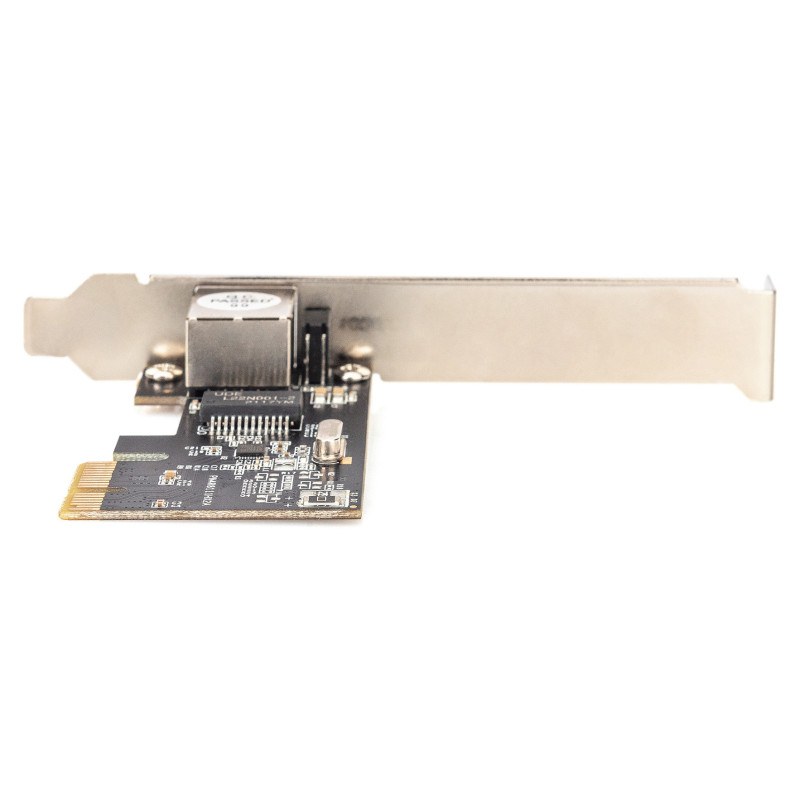

Gigabit Ethernet PCI Express Card,32-bit, low profile bracket, Realtek chipset

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 1.1
PCI Card form factor: Half-height (low-profile)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Auto MDIX IEEE
Feature: Auto-negotiation

Design

Component for: PC
Product colour: Black
Feature: Internal
Chipset: Realtek RTL8111H
Feature: Plug and Play
LED indicators: Yes
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 200 mm
Depth: 140 mm
Height: 35 mm

Packaging data

Package width: 200 mm
Package depth: 140 mm
Package height: 35 mm
Package weight: 150 g

Packaging content

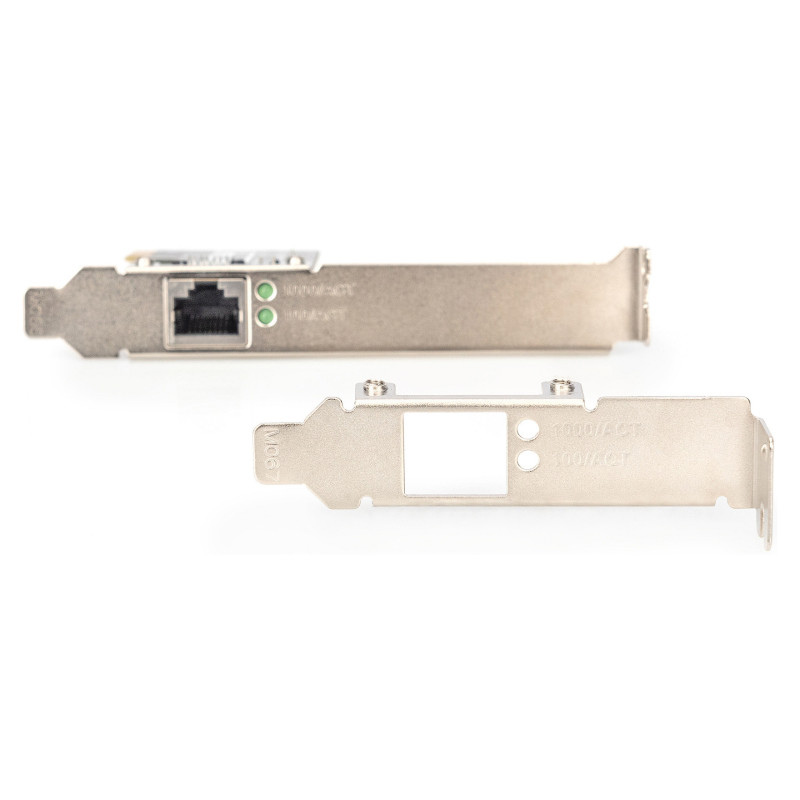

Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85176990
