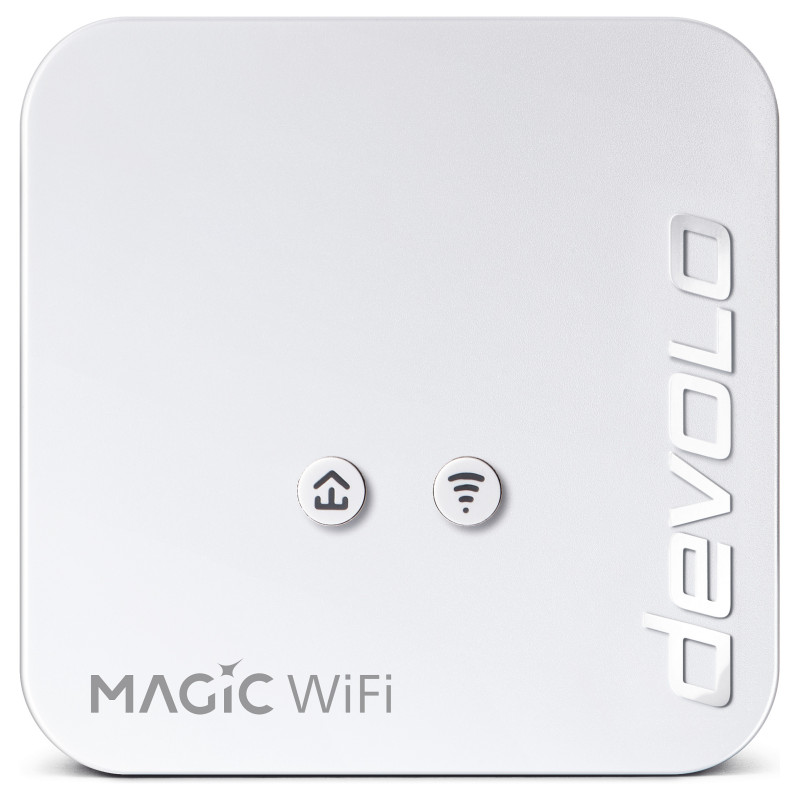

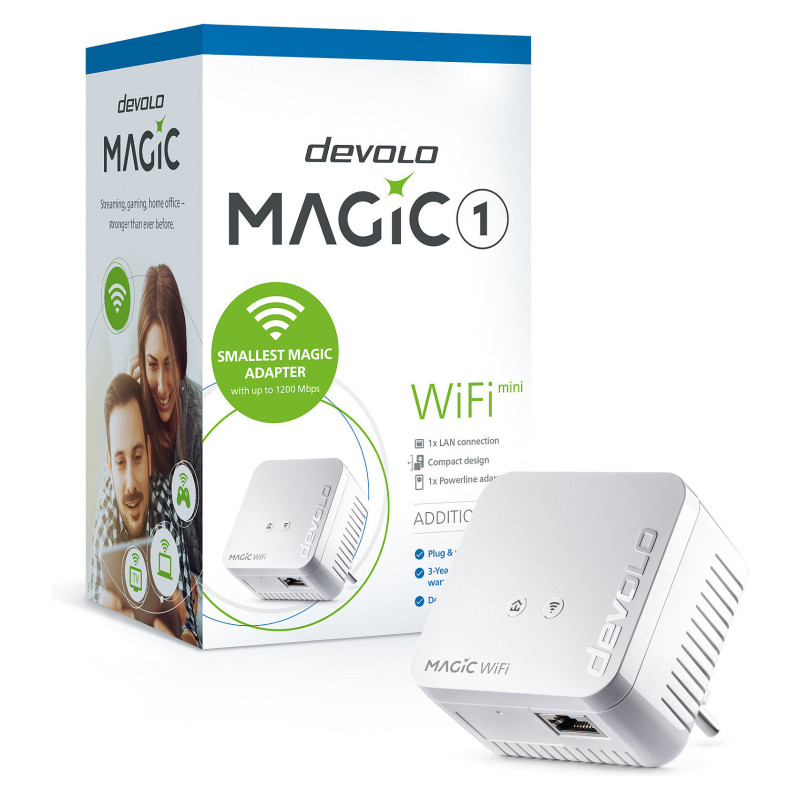

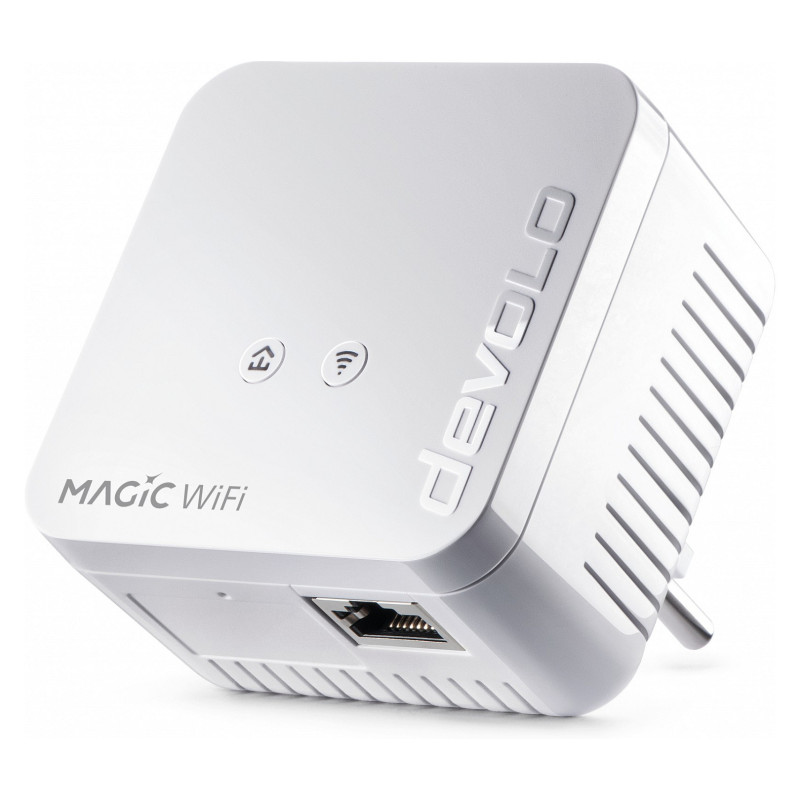

Devolo Magic 1 WiFi mini

Devolo Magic 1 WiFi mini. Maximum data transfer rate: 1200 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Power plug: Type C. Power consumption (typical): 4.4 W, Power consumption (standby): 1 W, AC input voltage: 196 - 250 V. Product colour: White, Antenna type: Internal, LED indicators: PLC. Windows operating systems supported: Windows 10, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8..., Linux operating systems supported: Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra. Width: 68 mm, Depth: 68 mm, Height: 41 mm

Performance

Maximum data transfer rate: 1200 Mbit/s
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100,1200 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300,1200 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Power plug: Type C
Feature: Built-in power socket
PowerLine standard: HomePlug AC
Modulation: 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK
Security algorithms: 128-bit AES, WPA, WPA2, WPS, WPS-PBC, WPS-PIN
Maximum operating distance: 400 m
Feature: MIMO
Feature: Quality of Service (QoS) support
Feature: Plug and Play
Compatible products: devolo Magic

Power

Power consumption (typical): 4.4 W
Power consumption (standby): 1 W
AC input voltage: 196 - 250 V
AC input frequency: 50 Hz

Design

Antenna type: Internal
Antennas quantity: 2
LED indicators: PLC
Product colour: White
Certification: CE

System requirements

Windows operating systems supported: Windows 10, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 Pro, Windows 8 Pro x64
Linux operating systems supported: Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10
Feature: Mac compatibility
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Mobile operating systems supported: Android, iOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 68 mm
Depth: 68 mm
Height: 41 mm

Packaging data

Package width: 190 mm
Package depth: 118 mm
Package height: 92 mm
Package weight: 335 g
Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Quick installation guide
Feature: Manual
Cables included: LAN (RJ-45)

Logistics data

Harmonized System (HS) code: 85171800
