DeLOCK 95270 sąsajos plokštės / adapteris

DeLOCK M.2 Card to 2 x Serial RS-232 DB9 with Standard and Low Profile slot brackets. Host interface: PCIe, Output interface: RS-232, Expansion card standard: PCIe 2.1. Connector 1 gender: Male, Connector 2 gender: Male, Data transfer rate (max): 0.001 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 80 mm, Depth: 22 mm, Height: 8 mm. Quantity per pack: 1 pc(s), Package type: Box

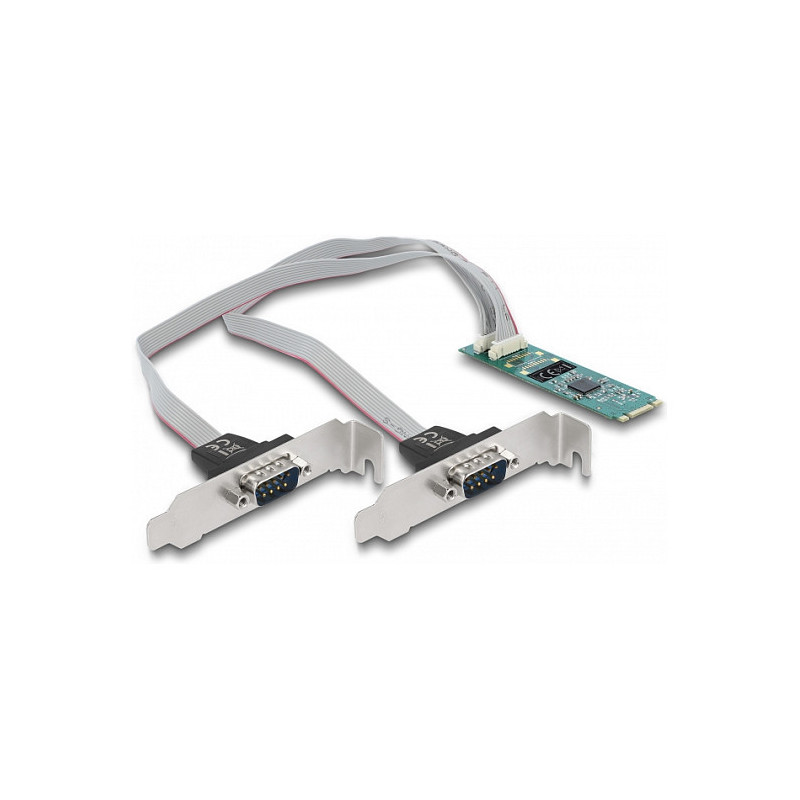

The M.2 to serial card by Delock expands the PC by two external RS-232 port. Different devices such as scanners, protocol converters, IoT devices etc. can be connected to the card. With the help of the included slot brackets and RS-232 cables, the M.2 card is suitable for installation into any computer case.

Ports & interfaces

Host interface: PCIe
Output interface: RS-232
Expansion card standard: PCIe 2.1
Serial ports quantity: 2
Serial interface type: RS-232

Design

Feature: Internal

Features

Connector 1 gender: Male
Connector 2 gender: Male
Data transfer rate (max): 0.001 Gbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Feature: Flow control support
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: RTS/CTS, XON/XOFF

System requirements

Server operating systems supported: Windows Server 2016, Windows Server 2019

Weight & dimensions

Width: 80 mm
Depth: 22 mm
Height: 8 mm

Packaging data

Quantity per pack: 1 pc(s)
Feature: Drivers included
Feature: Manual
Package type: Box
