DeLOCK 90566 sąsajos plokštės / adapteris

DeLOCK PCI Express x16 (x4 / x8) Card to 1 x NVMe M.2 Key M with LED illumination. Host interface: PCIe, Output interface: M.2. Product colour: Grey, Cooling type: Passive, Country of origin: China. Width: 44 mm, Depth: 98 mm, Height: 5 mm

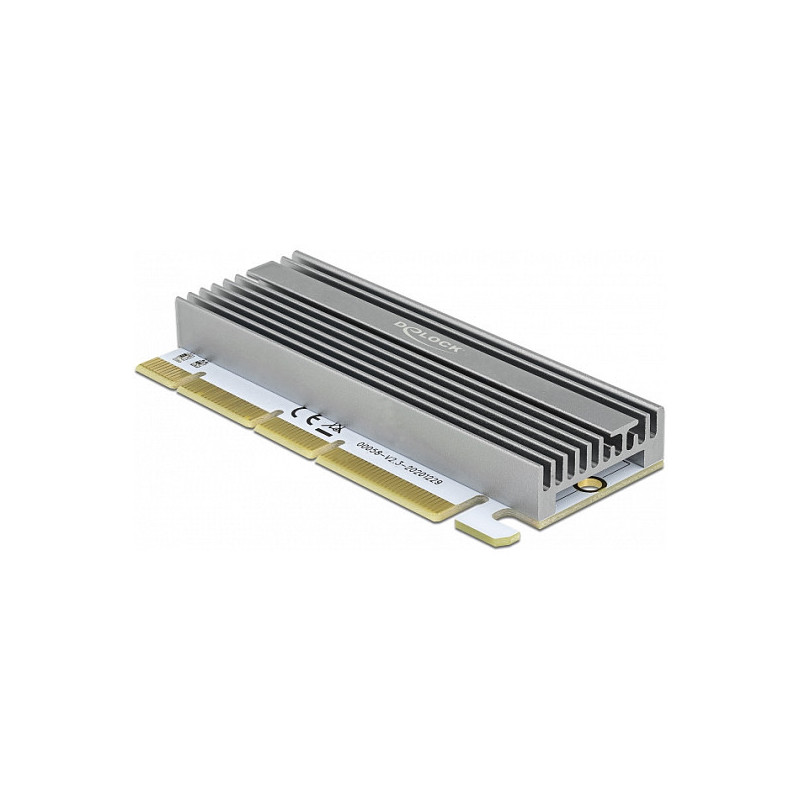

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. The card can be operated through the notches on an x1, x4, x8 or x16 slot. If the card will be installed in the PC, the slot bracket does not have to be removed.

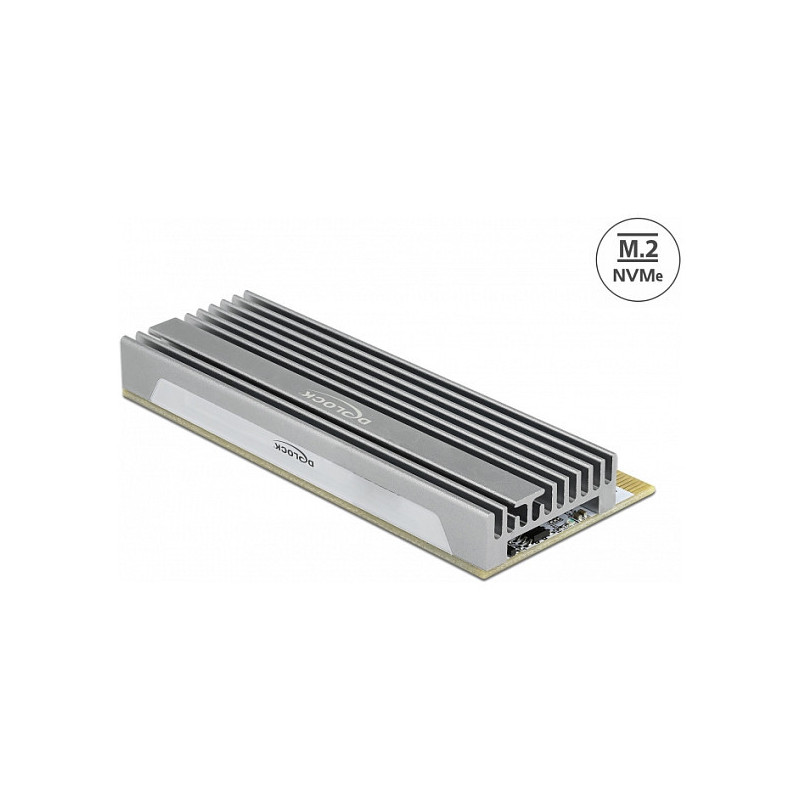

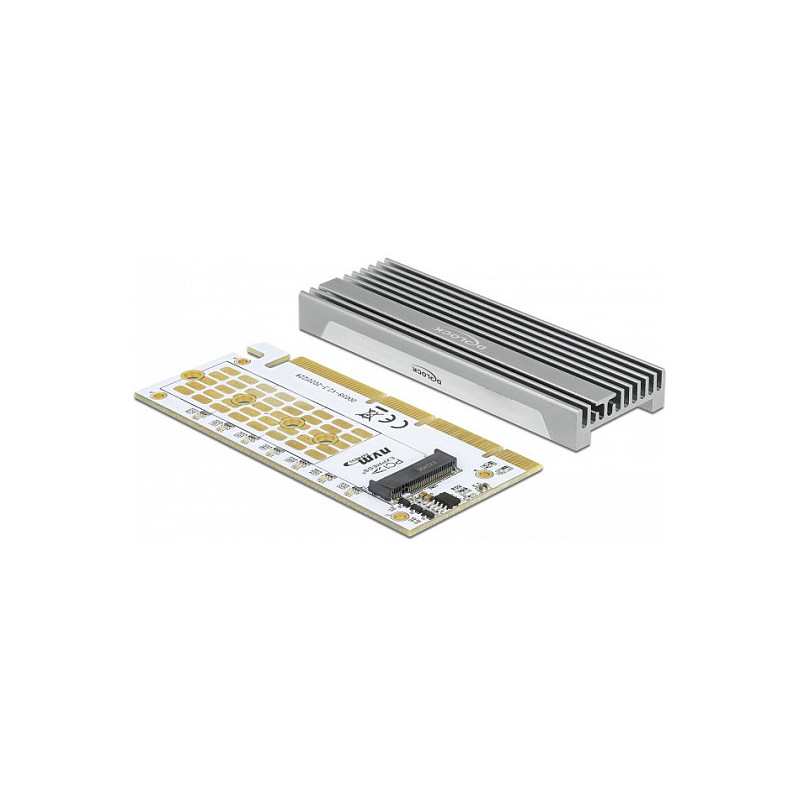

Heat sink and LED illumination

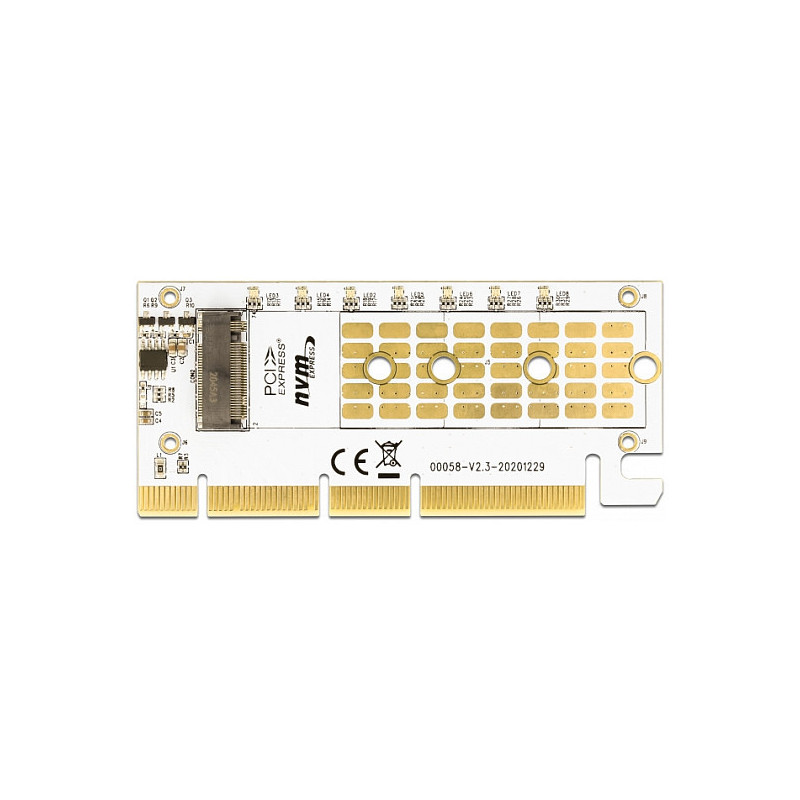

With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed. The PCIe card has 7 LEDs to illuminate the computer's interior. The RGB LEDs automatically change their colour in a colour gradient and use the complete colour spectrum.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Feature: NVMe
Number of M.2 (M) slots: 1

Design

Feature: Internal
Product colour: Grey
Cooling type: Passive
LED indicators: Yes
Country of origin: China

Features

Feature: S.M.A.R.T. support
Feature: TRIM support

Weight & dimensions

Width: 44 mm
Depth: 98 mm
Height: 5 mm

Packaging data

Feature: User guide
