„DeLOCK 90509“ sąsajos plokštės / adapteris

DeLOCK PCI Express x1 Card to 4 x external USB Type-A female SuperSpeed USB (USB 3.2 Gen 1). Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card standard: PCIe 2.0. Country of origin: China. Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8, Windows 8.1, Windows 8.1 x64, Linux operating systems supported: Kernel 3.3, Kernel 4.6.4

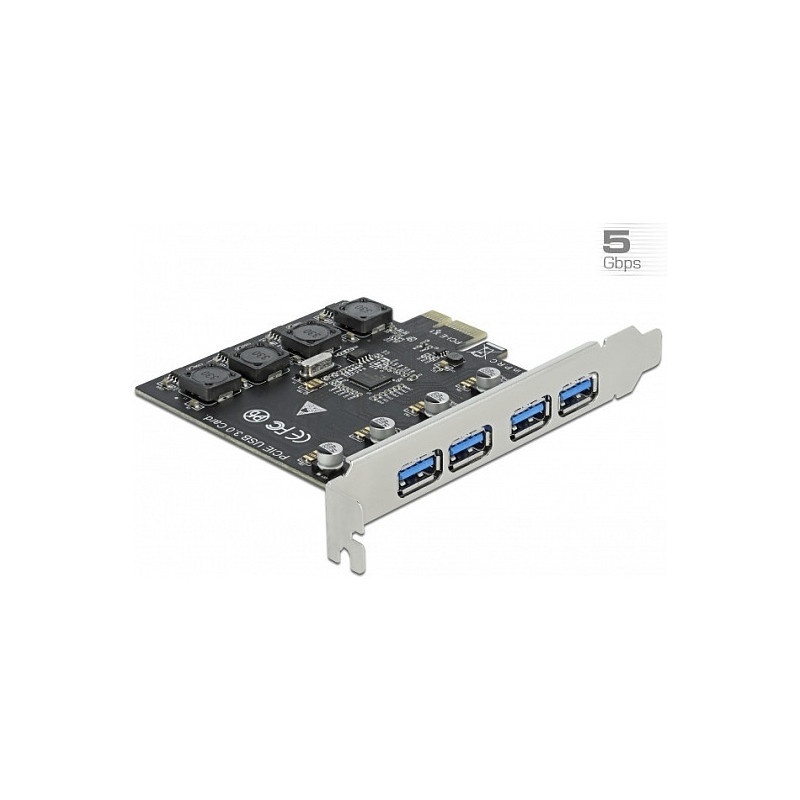

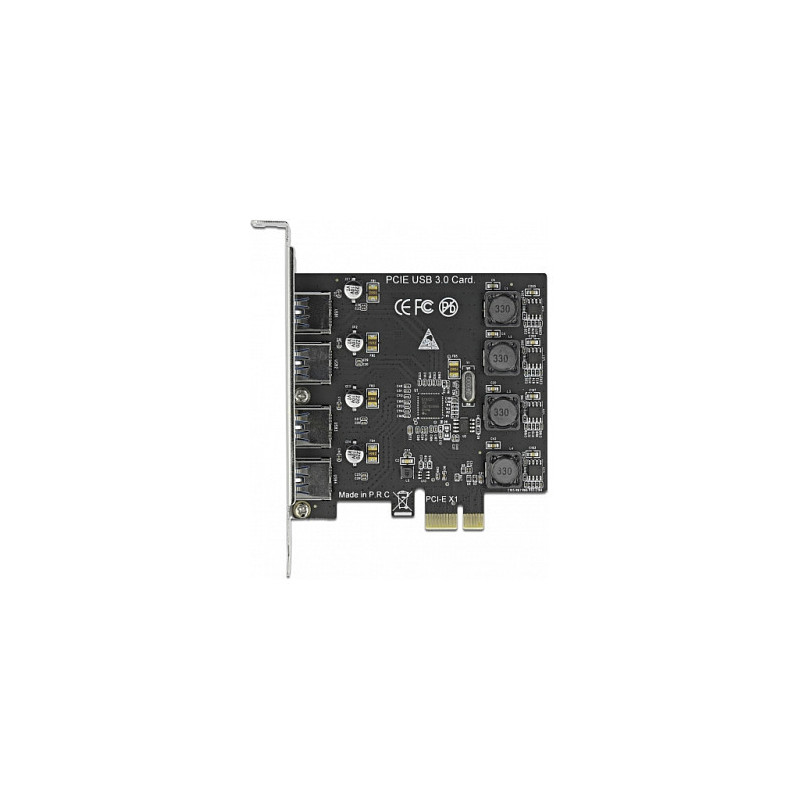

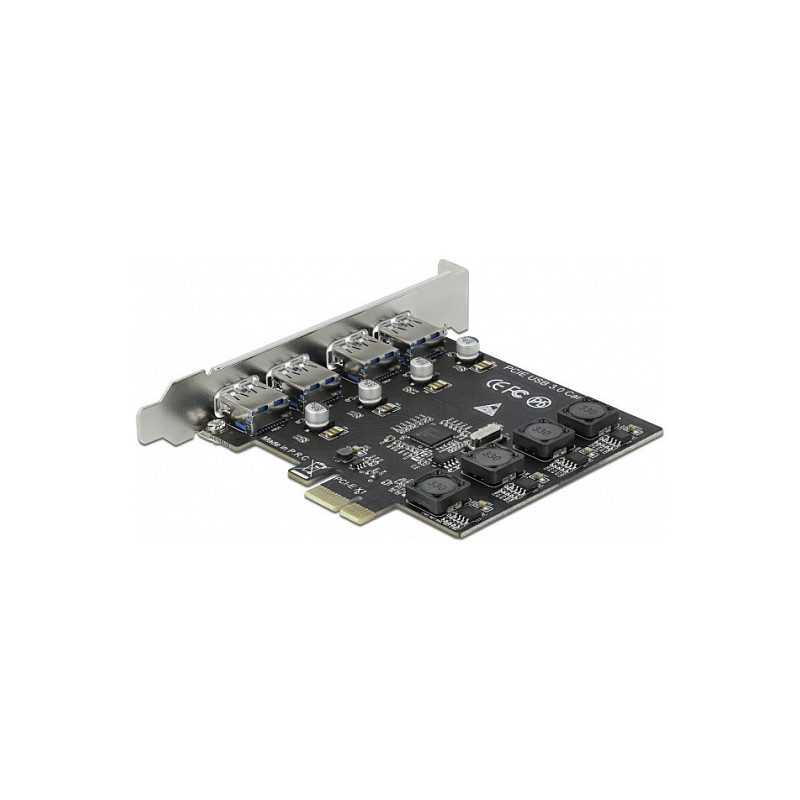

The PCI Express card by Delock expands a PC by four external USB 3.2 Gen 1 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected.

10 Watt output power per port
The card requires no additional power supply and can still supply 2 A at each port. Thus, a total of 8 A can be achieved when all ports are used.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Design

Feature: Internal
Country of origin: China

Features

Data transfer rate (max): 5 Gbit/s

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Kernel 3.3, Kernel 4.6.4

Packaging data

Feature: Manual
