DeLOCK 90504 sąsajos plokštės / adapteris

DeLOCK PCI Express x16 Card to 8 x internal SFF-8643 NVMe - Low Profile Form Factor. Host interface: PCIe, Output interface: Mini-SAS, Expansion card form factor: Low-profile. Cooling type: Passive. Data transfer rate (max): 32 Gbit/s. Server operating systems supported: Windows Server 2019. Package type: Box

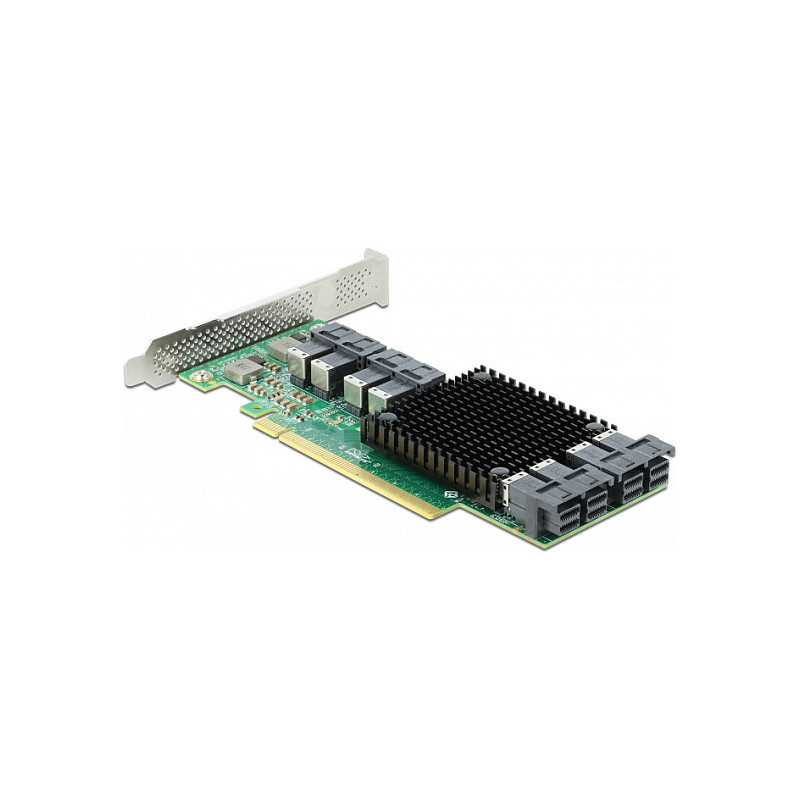

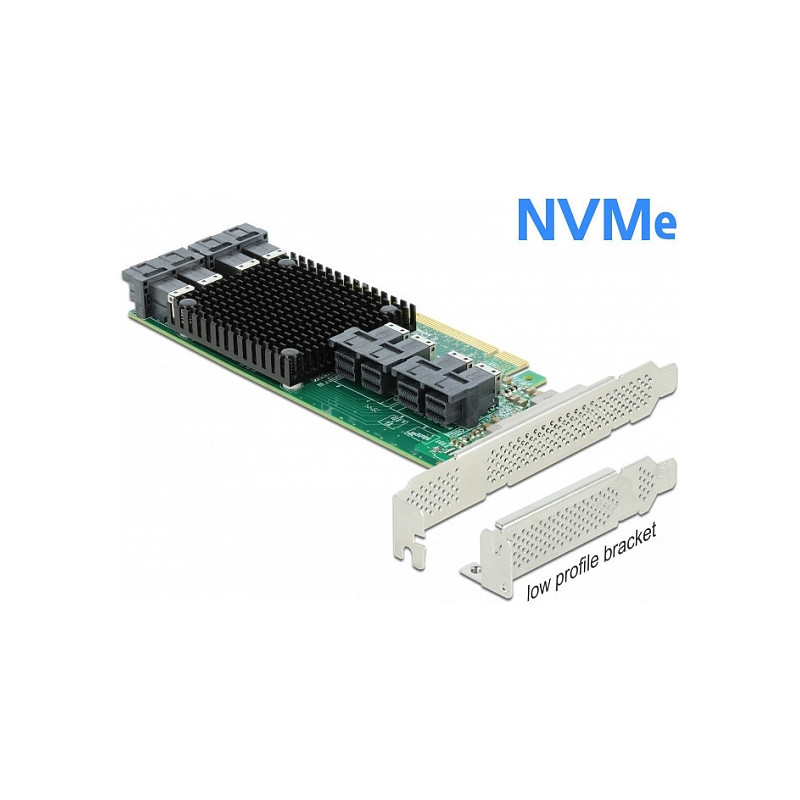

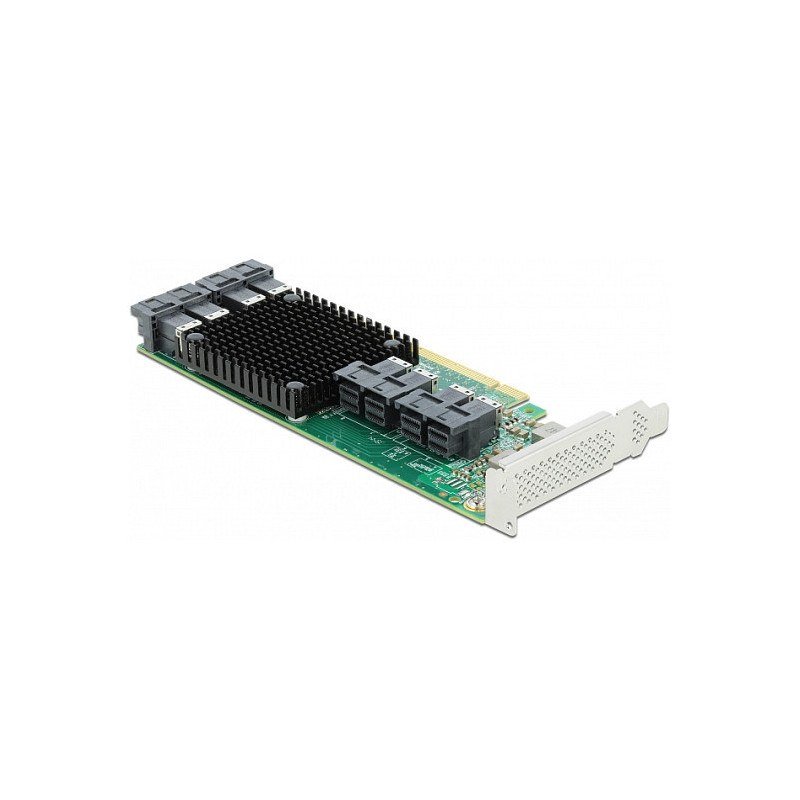

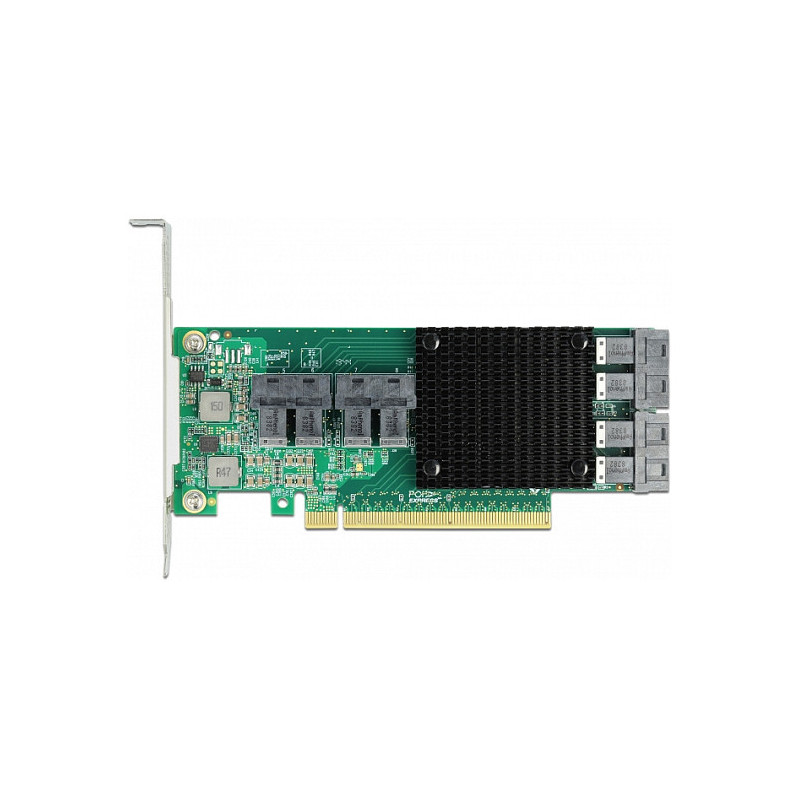

This PCI Express card by Delock expands the PC by eight SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.

Ports & interfaces

Host interface: PCIe
Output interface: Mini-SAS
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
Feature: NVMe
Internal mini-SAS ports: 8

Design

Feature: Internal
Cooling type: Passive
LED indicators: Yes

Features

Data transfer rate (max): 32 Gbit/s

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019

Packaging data

Feature: Mounting brackets included
Feature: Manual
Package type: Box
