DeLOCK 90305 sąsajos plokštės / adapteris

DeLOCK 90305. Host interface: PCIe, Output interface: M.2, Expansion card form factor: Low-profile. Chipset: Asmedia ASM2824, Data transfer rate (max): 32 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64. Package type: Box

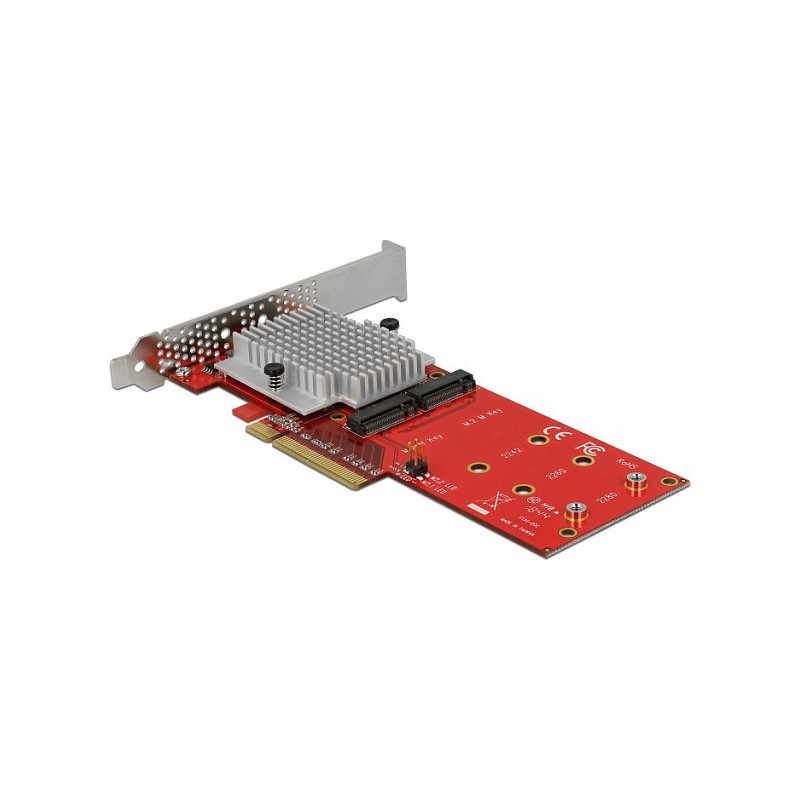

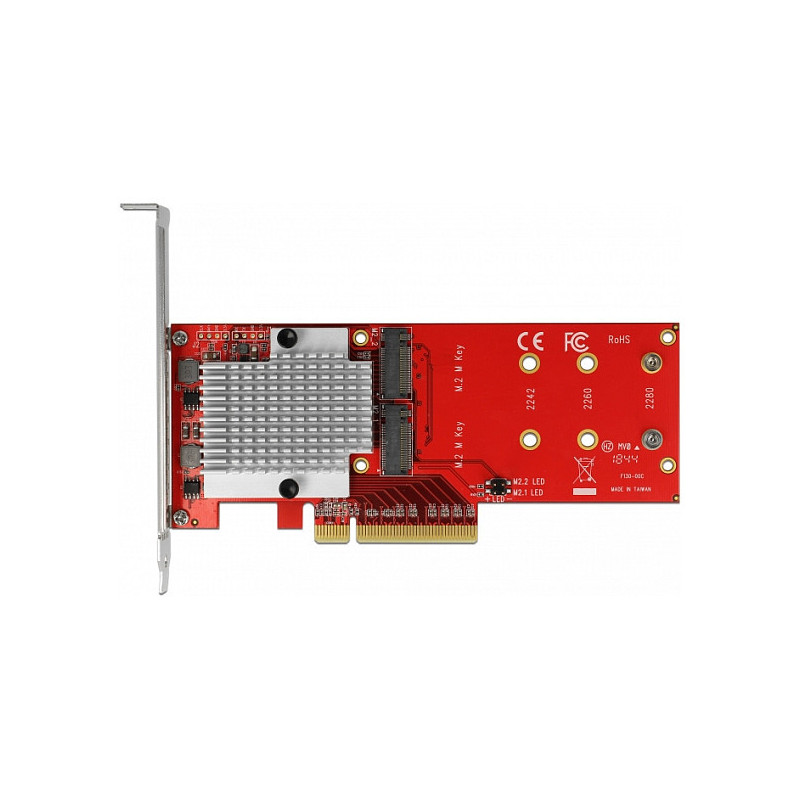

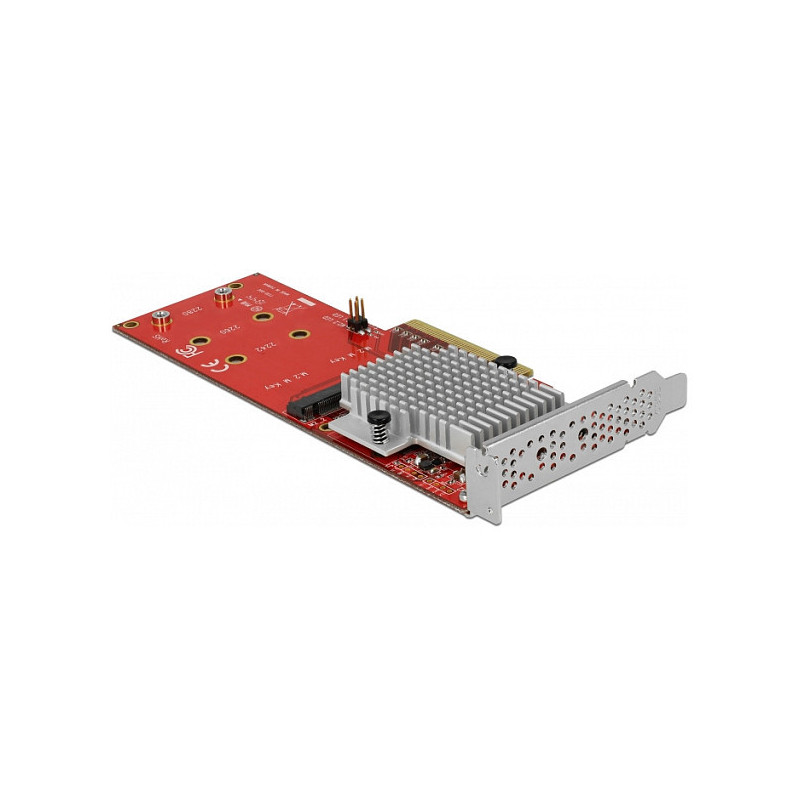

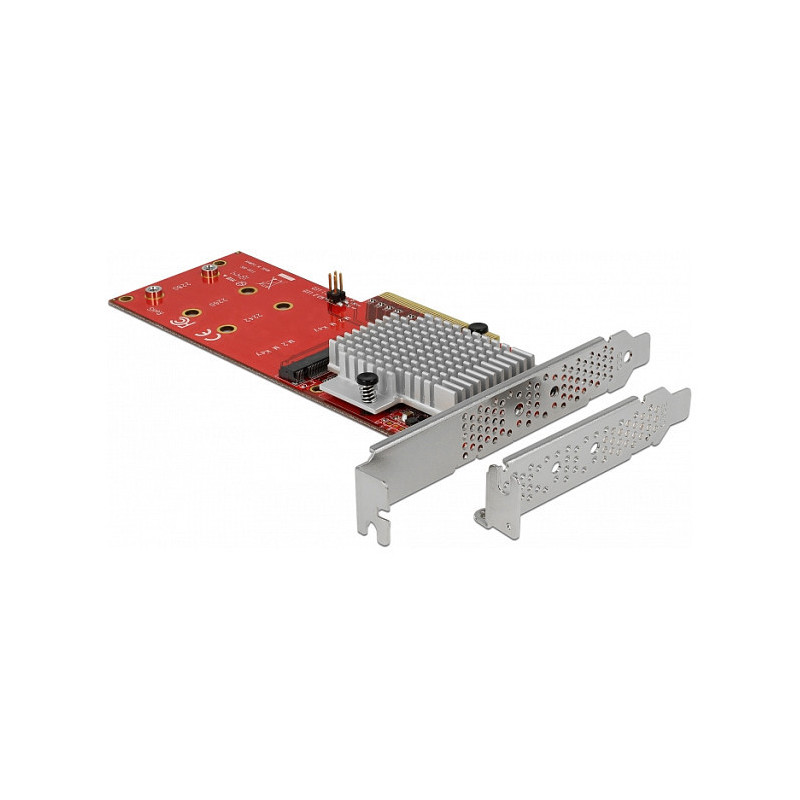

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected.

Delock M.2 PCIe card for gaming and server
Especially in the gaming and server range, this card is ideally suited to expand the existing system by two fast M.2 NVMe slots. Both slots can be used simultaneously.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
Feature: NVMe
Number of M.2 (M) slots: 2

Design

Feature: Internal

Features

Chipset: Asmedia ASM2824
Data transfer rate (max): 32 Gbit/s

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Packaging data

Quantity: 1
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
