„DeLOCK 90161“ sąsajos plokštės / adapteris

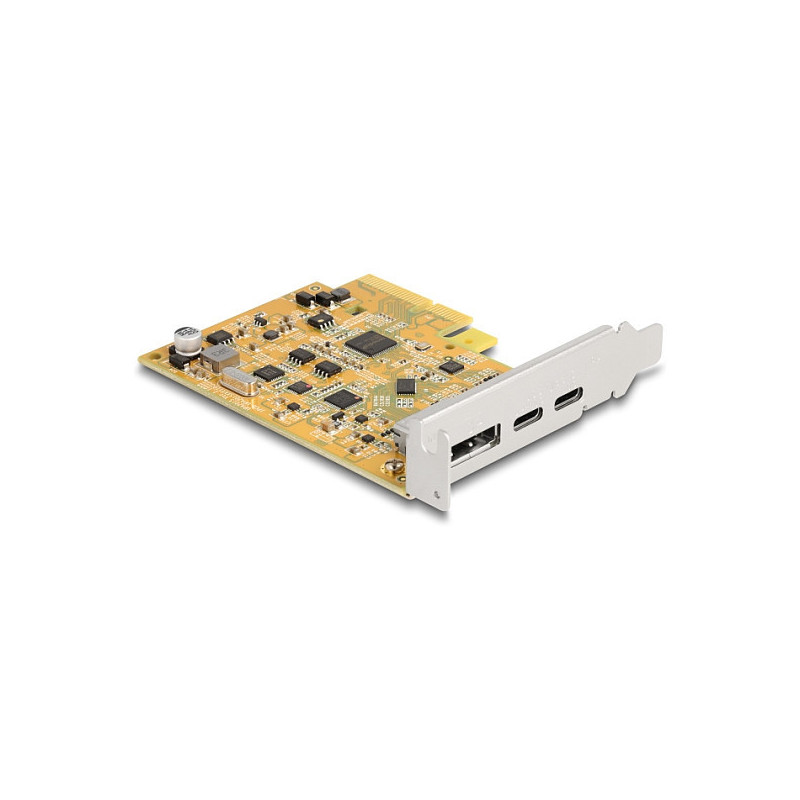

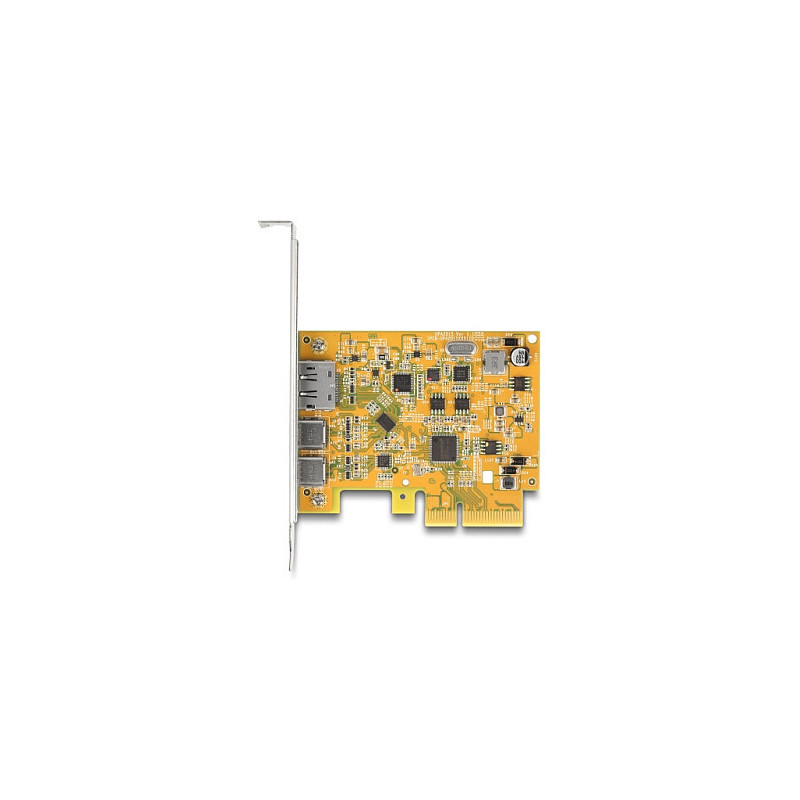

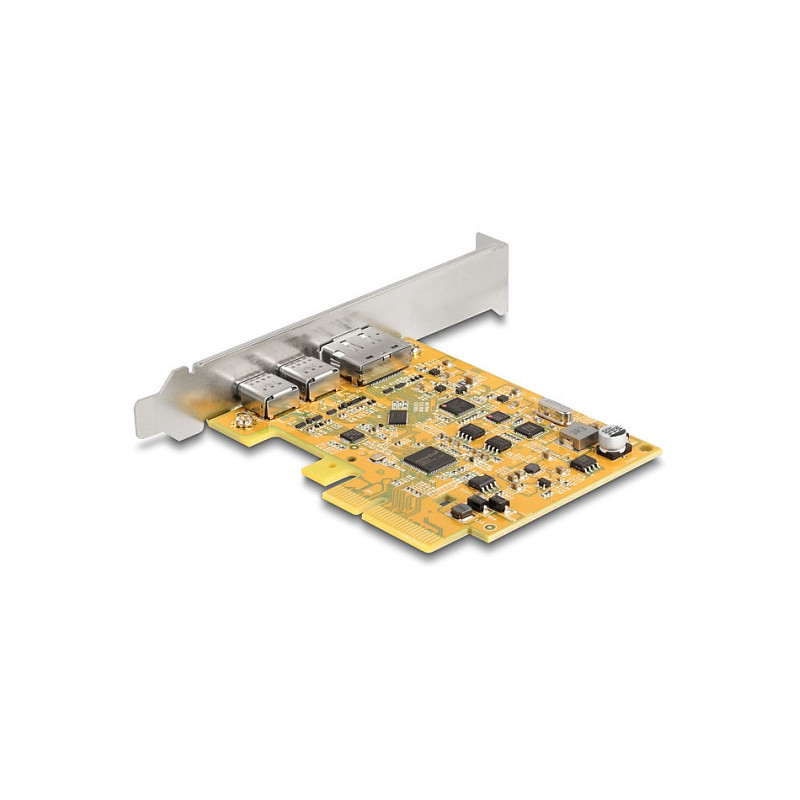

DeLOCK PCI Express x4 Card to 1 x external USB Type-C 10 Gbps female + 1 x external USB Type-C 10 Gbps (DP Alt Mode) female. Host interface: PCIe, Output interface: DisplayPort, USB Type-C, Expansion card standard: PCIe 3.0. Product colour: Metallic, Yellow. Quantity per pack: 1 pc(s), Cables included: DisplayPort, Package type: Box

This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.

Video output at USB-C™ port

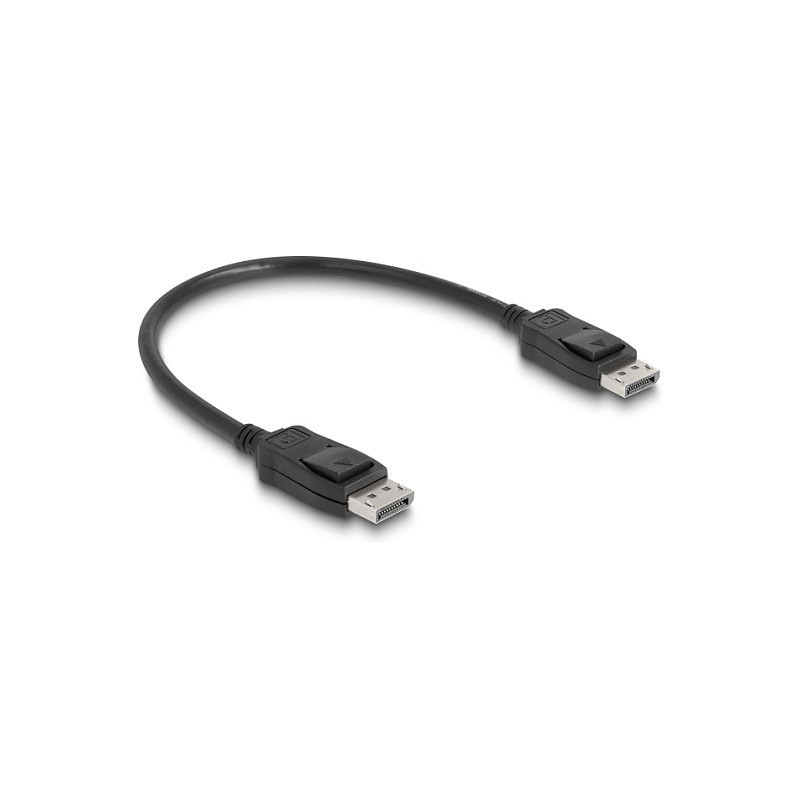

By using the included cable, the DisplayPort connector of the PCI Express card can be connected to a DisplayPort output of a graphics card on the motherboard. Therefore one USB-C™ port will be DP Alt Mode capable. A monitor can be connected to this port in order to transmit video and audio signals. The maximum resolution of the output depends on the input signal.

Ports & interfaces

Host interface: PCIe
Output interface: DisplayPort, USB Type-C
Expansion card standard: PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Design

Feature: Internal
Product colour: Metallic, Yellow

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Packaging data

Quantity per pack: 1 pc(s)
Cables included: DisplayPort
Feature: Manual
Package type: Box
