„DeLOCK 90101“ tinklo antena

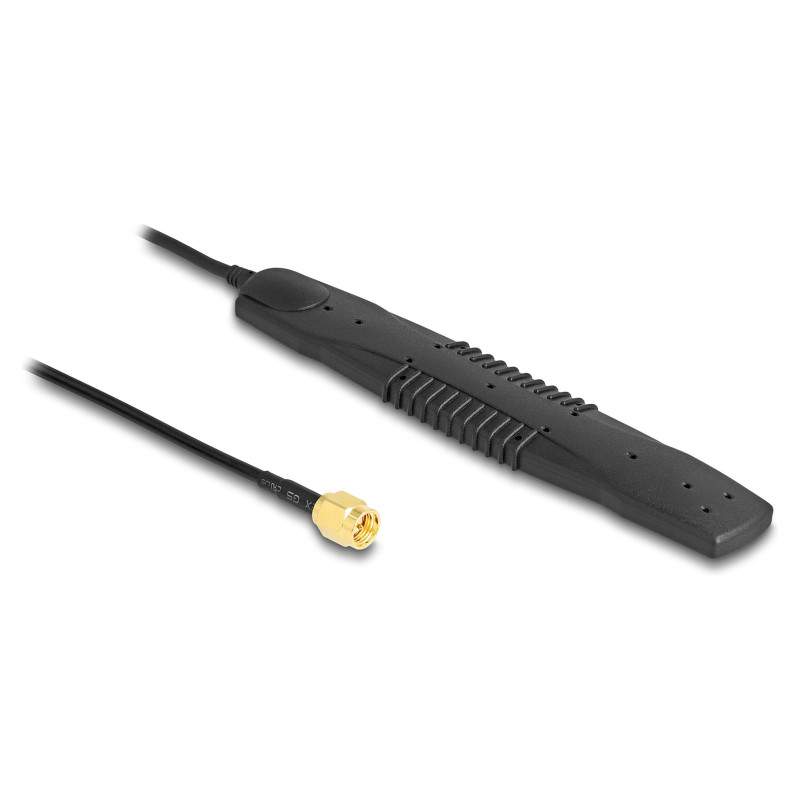

DeLOCK 5G LTE, WLAN Antenna SMA plug 2,5 dBi omnidirectional fixed black self-adhesive. Antenna gain level (max): 2.5 dBi, Frequency band: 0.6 - 0.96 / 1.71 - 6 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Voltage Standing Wave Ratio (VSWR): 2.0:1. Width: 22.8 mm, Depth: 129.5 mm, Height: 7 mm. Package type: Box. Quantity per pack: 1 pc(s)

This 5G LTE and WLAN antenna can be installed indoors and can be used for reception of different bands. It is completely compatible to GSM, CDMA, GPRS, UMTS, LTE, 5G low band Sub-6 GHz, Bluetooth, WiFi, WLAN, Zigbee and ISM.

Performance

Frequency band: 0.6 - 0.96 / 1.71 - 6 GHz
Impedance: 50 Ω
Antenna gain level (max): 2.5 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Voltage Standing Wave Ratio (VSWR): 2.0:1
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Feature: Ultraviolet (UV) resistant

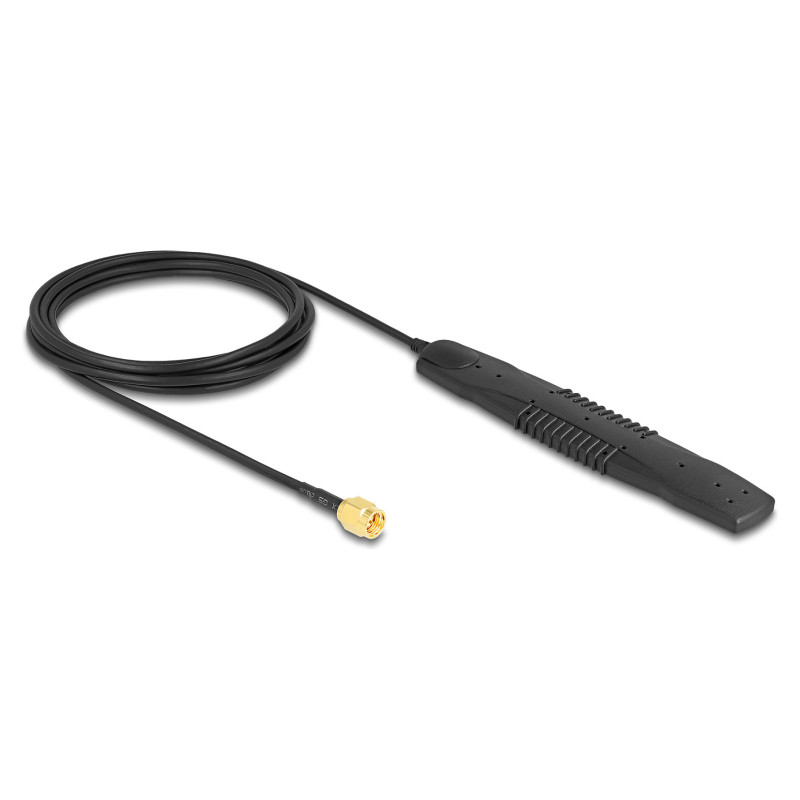

Cable length: 3 m
Cable type: RG-174

Operational conditions

Operating temperature (T-T): -20 - 80 °C

Weight & dimensions

Width: 22.8 mm
Depth: 129.5 mm
Height: 7 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Country of origin: Taiwan
