„DeLOCK 90090“ sąsajos plokštės / adapteris

DeLOCK PCI Express 4.0 x16 Card to 4 x internal NVMe M.2 Key M 110 mm - Bifurcation - Low Profile Form Factor. Host interface: PCIe, Output interface: M.2, PCIe, Host interface gender: Male. Product colour: Metallic, Purpose: PC, LED indicators: Status. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64, Linux operating systems supported: Linux Kernel 5.9, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13,..., Server operating systems supported: Windows Server 2019. Quantity per pack: 1 pc(s), Package type: Box

Description

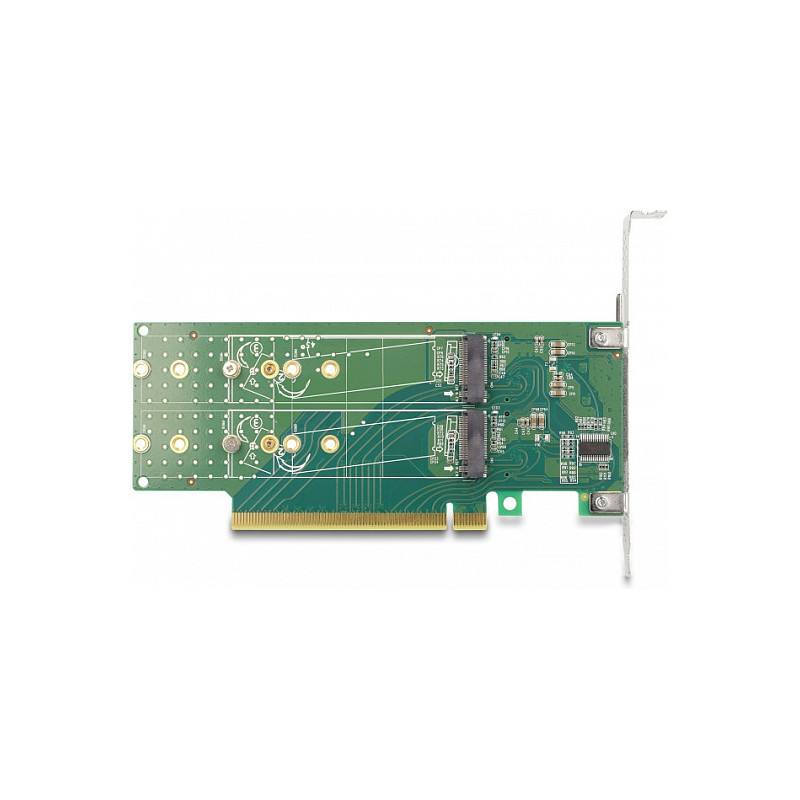

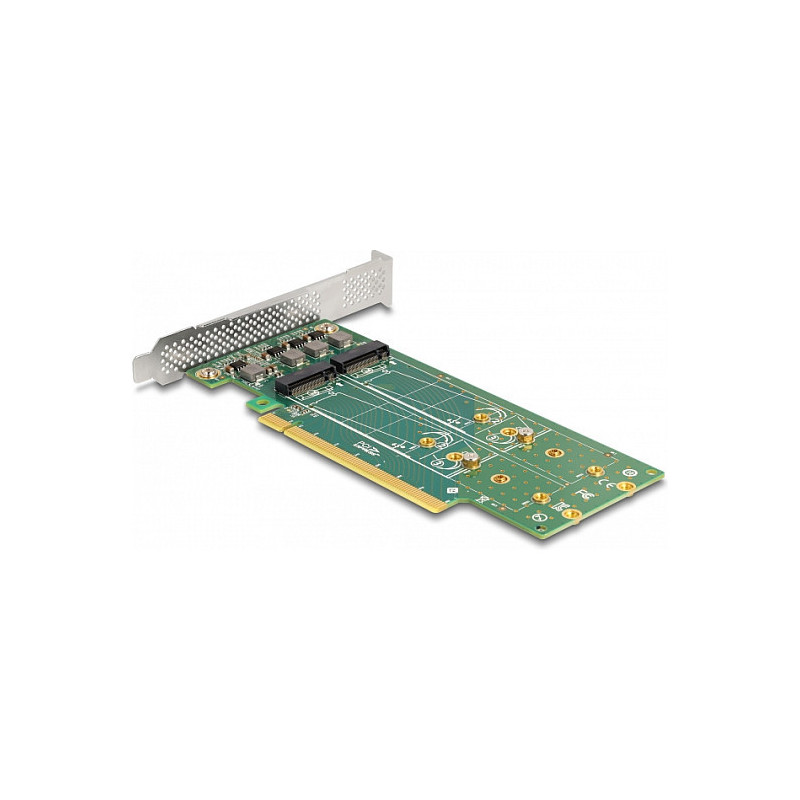

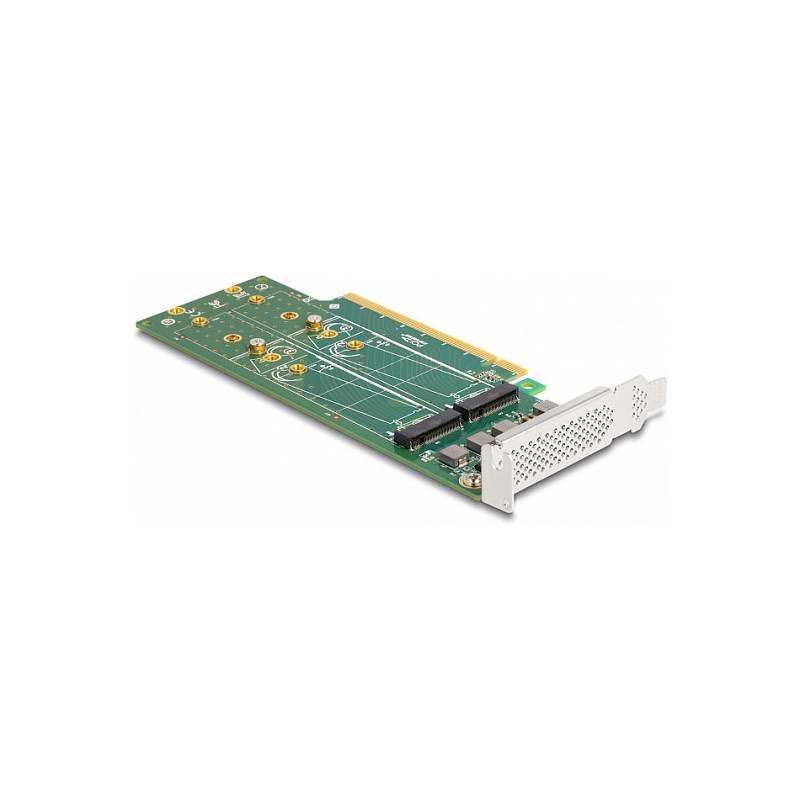

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 22110, 2280 and 2260 can be connected.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.

Ports & interfaces

Host interface: PCIe
Host interface gender: Male
Output interface: M.2, PCIe
Expansion card form factor: Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe

Design

Feature: Internal
Product colour: Metallic
Purpose: PC
LED indicators: Status

Features

Feature: S.M.A.R.T. support
Feature: TRIM support

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Linux Kernel 5.9, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15
Server operating systems supported: Windows Server 2019
Other operating systems supported: UEFI 2.3

Packaging data

Quantity per pack: 1 pc(s)
Feature: Mounting brackets included
Feature: Manual
Package type: Box
