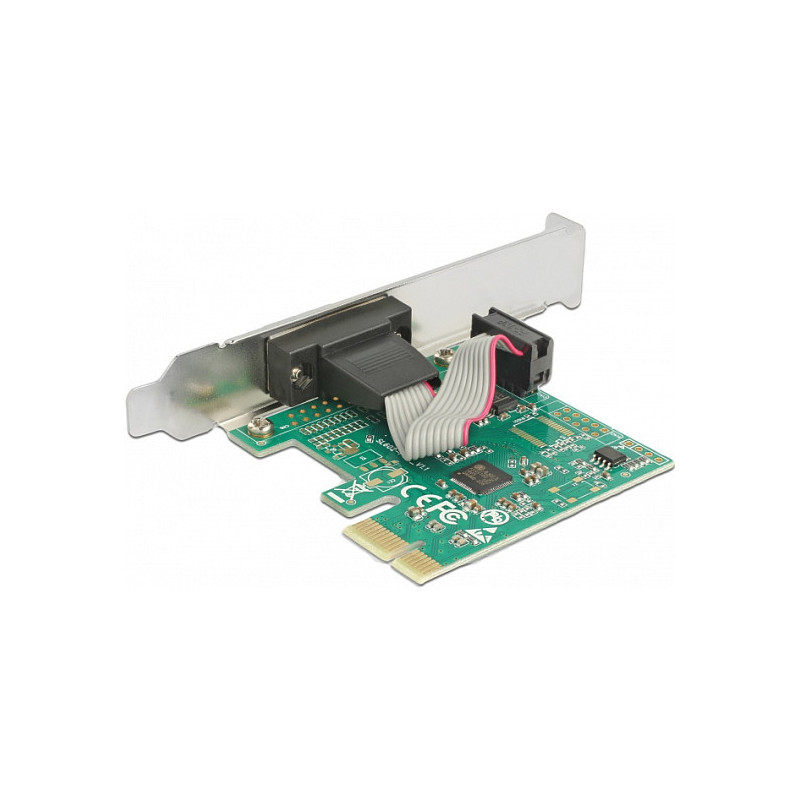

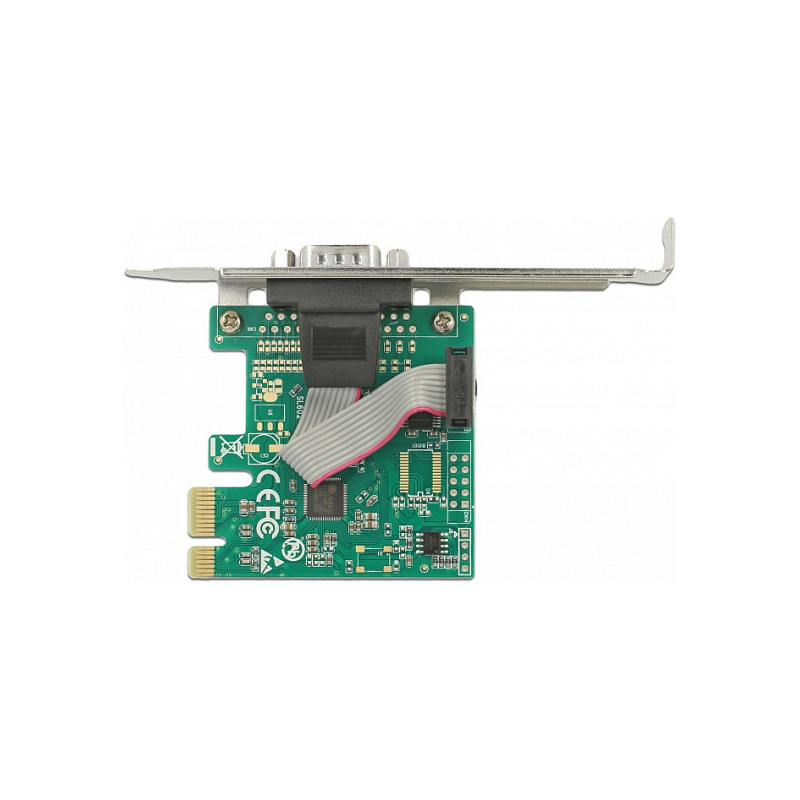

DeLOCK 89948 sąsajos plokštės / adapteris

DeLOCK 89948. Host interface: PCIe, Output interface: RS-232. Product colour: Green, Country of origin: China. Chipset: ASIX AX99100, FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, 9. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Width: 60 mm, Depth: 64 mm, Height: 16 mm

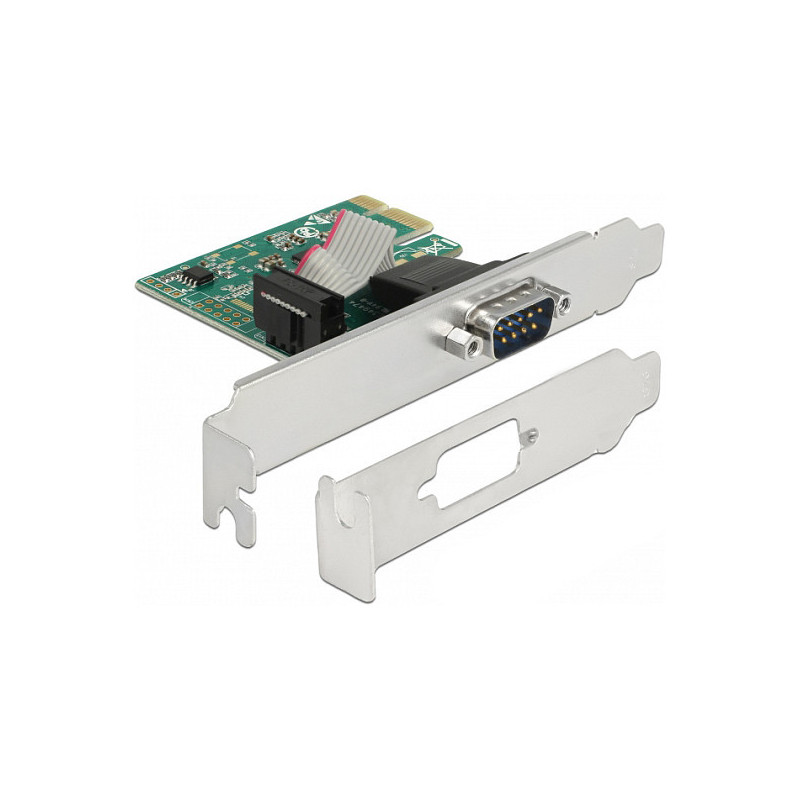

The PCI Express card by Delock expands a PC by one external serial RS-232 port. Devices such as scanners, protocol converters, POS systems, infrared -, IoT - devices etc. and different modes can be used. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

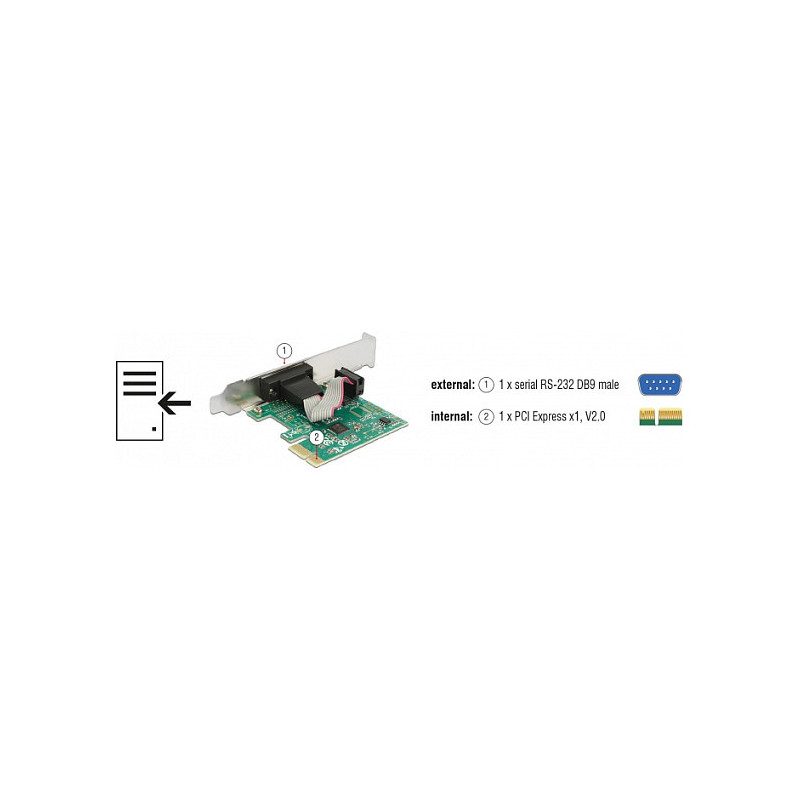

Ports & interfaces

Host interface: PCIe
Output interface: RS-232

Design

Feature: Internal
Product colour: Green
Country of origin: China

Features

Chipset: ASIX AX99100
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1

Weight & dimensions

Width: 60 mm
Depth: 64 mm
Height: 16 mm

Packaging data

Quantity: 1
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
