DeLOCK 89447 sąsajos plokštės / adapteris

DeLOCK 89447. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 2.0. Chipset: SUN2410, Data transfer rate (max): 0.0001152 Gbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,.... Cables included: Serial, Package type: Box

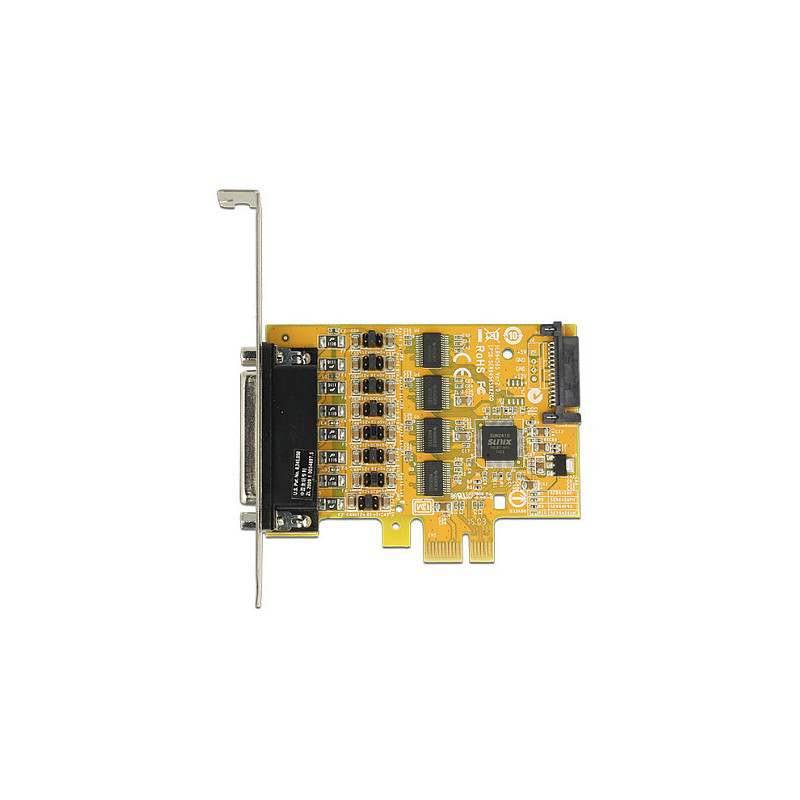

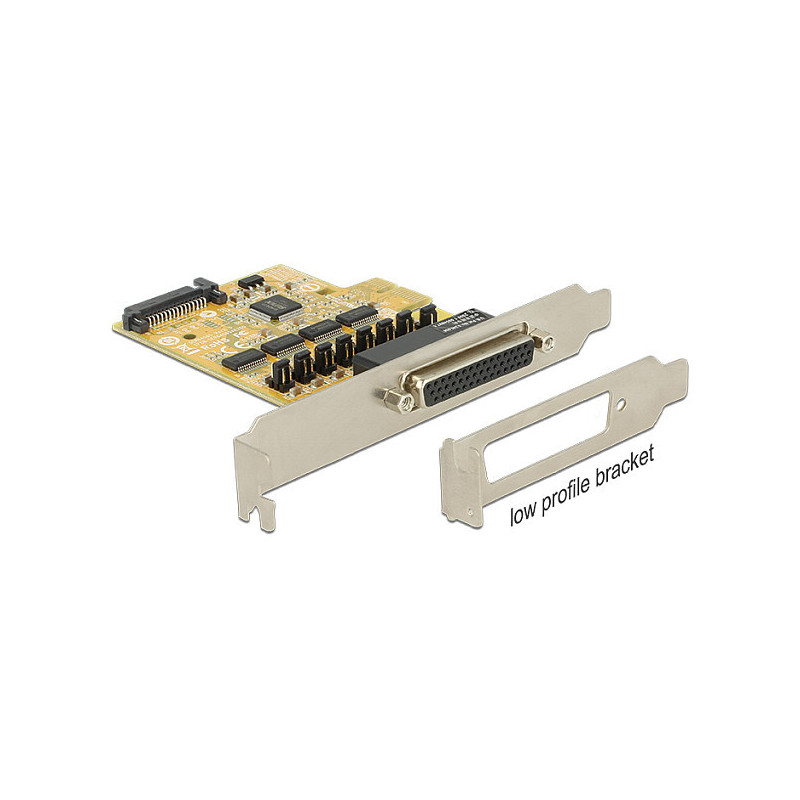

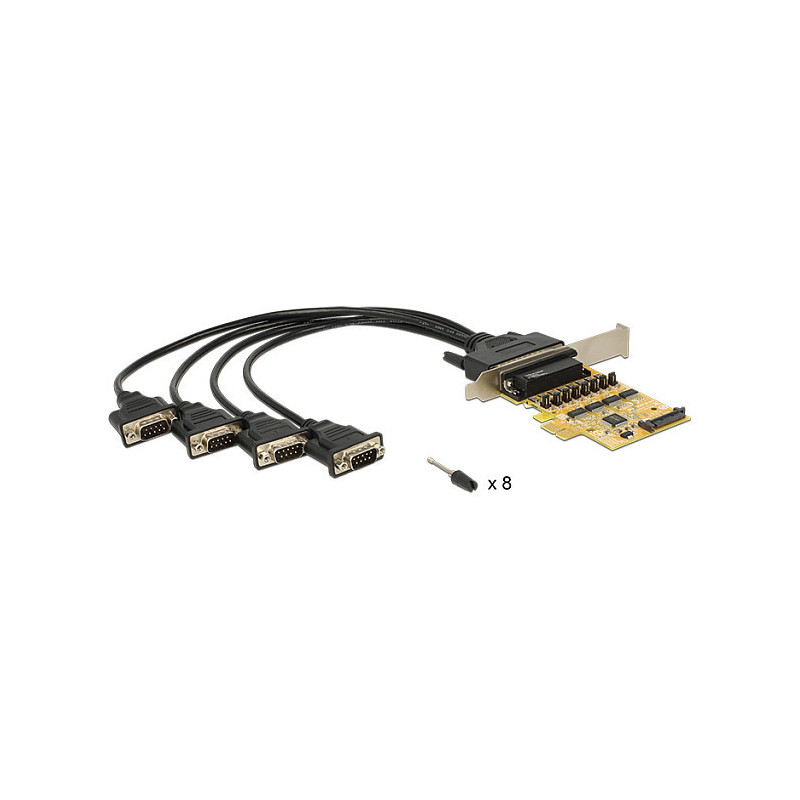

The Delock PCI Express card expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V. Included are thumbscrews for the individual serial ports, so either serial devices with screws or with nuts can be connected to the ports. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Expansion card standard: PCIe 2.0
Serial interface type: RS-232

Design

Feature: Internal

Features

Chipset: SUN2410
Data transfer rate (max): 0.0001152 Gbit/s
FIFO (First In, First Out): 128 B

Packaging data

Cables included: Serial
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020

Other features

Feature: RS-232 interface
