„DeLOCK 89139“ tinklo plokštė

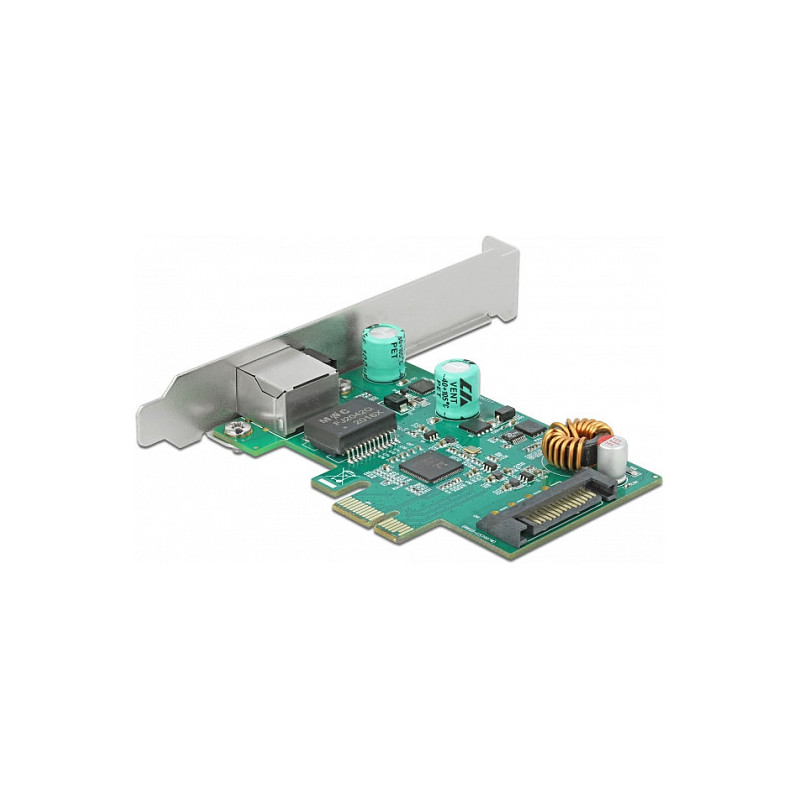

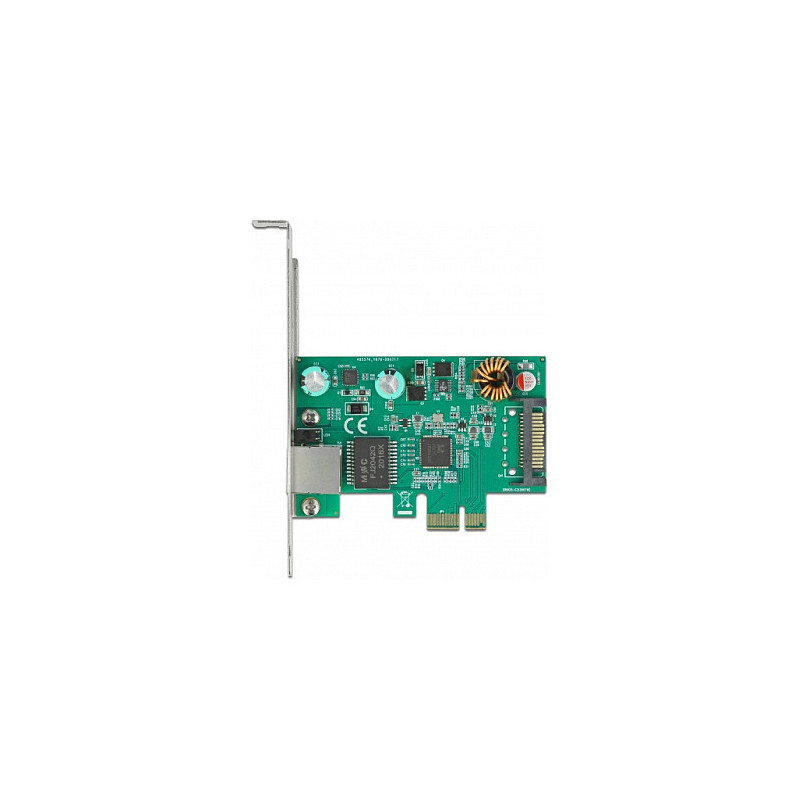

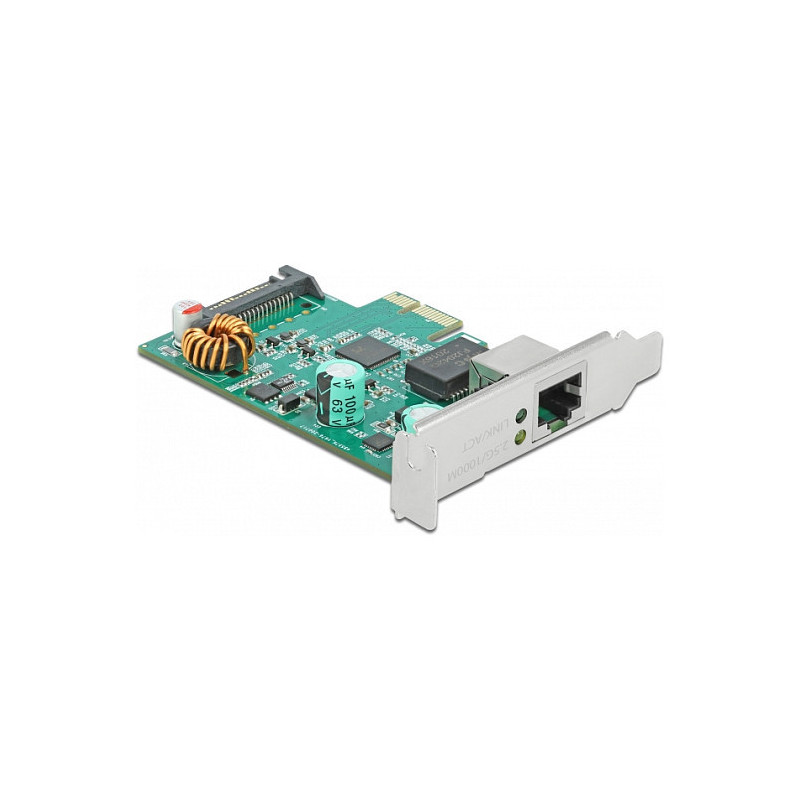

DeLOCK PCI Express x1 Card 1 x RJ45 2.5 Gigabit LAN PoE+ RTL8125. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 4000 Mbit/s

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

PoE support
The RJ45 port supports Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.1

Network

Maximum data transfer rate: 4000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
LAN controller: Realtek RTL8125

Design

Component for: PC
Feature: Internal
LED indicators: Yes

System requirements

Windows operating systems supported: Yes

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual
