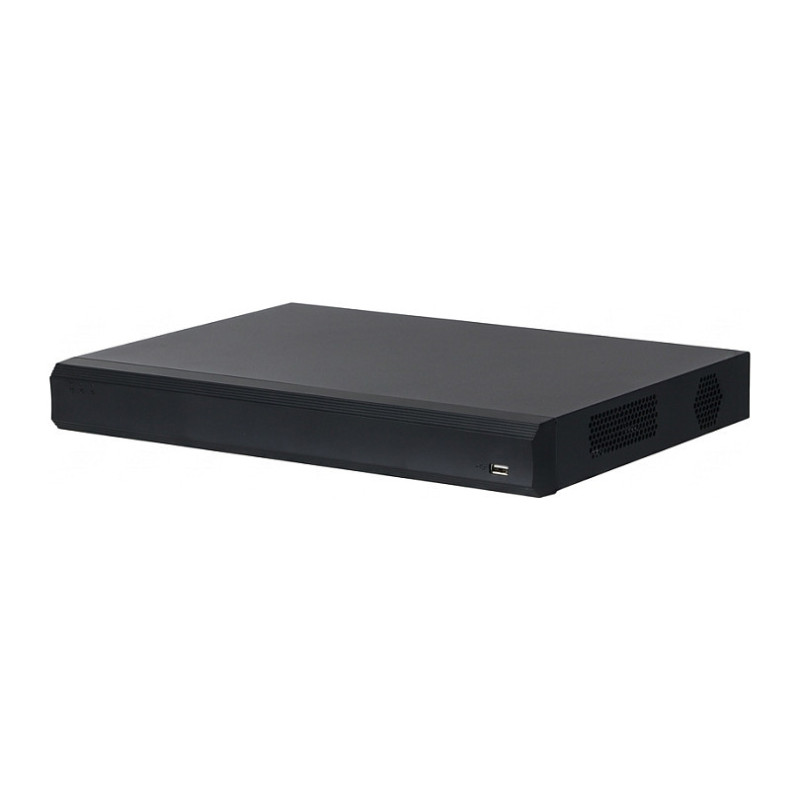

„Dahua Technology WizSense NVR4208-EI“ tinklo vaizdo įrašymo įrenginys

Dahua Technology WizSense NVR4208-EI. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;.... Rack capacity: 1U, Product colour: Black, Certification: EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN.... Power consumption (max): 10 W, Power consumption (typical): 25.5 W

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense makes your video intelligent, simple and inclusive.
Intelligent: WizSense is powered by AI chip and deep learning algorithm. It provides various features that realize accurate alarms for human and vehicle, as well as quick target search, maximizing resources to increase overall efficiency.
Simple: WizSense offers simple configuration, especially for SMD Plus that can be enabled by just a single button. It eases your daily job and also empowers you with better business decisions.
Inclusive: WizSense is cost-effective that everyone can enjoy the benefits of AI advancement. With affordable prices and easy configuration, WizSense aims to fast accelerate the AI adoption in the industry and brings AI to everyone's daily life.

Performance

Video input channels: 8 channels
Alarm input channels: 4
Alarm output channels: 2
Video recording modes: 720p, 960p, 1080p
Maximum resolution: 3840 x 2160 pixels
Feature: People counting
Feature: Multi-screen
Audio formats supported: G.711 A-law, G.711 μ-law, G.726, PCM
Video formats supported: H.264, H.264+, H.265, H.265+
Image formats supported: MJPEG
Operating system installed: Embedded LINUX
Feature: Backup function
Input bandwidth: 256 Mbit/s
Output bandwidth: 256 Mbit/s
Feature: Face detection

Hard drive

Number of HDDs supported: 2
Maximum storage capacity: 16 TB
HDD interface: SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity: 8
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
Audio RCA inputs: 1
Audio RCA outputs: 1
Feature: DC-in jack
Networking standards: IEEE 802.3af, IEEE 802.3at

Features

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Certification: EN IEC 61000-3-2:2019+A1:2021;EN 61000-3-3:2013+A1:2019+A2:2021; EN55035:2017+A11:2020; EN 50130-4:2011+A1:2014CE-LVD: EN 62368-1:2014

Power

Power consumption (max): 10 W
Power consumption (typical): 25.5 W

System requirements

Mobile operating systems supported: Android, iOS
Browser supported: Chrome; IE9 and later; Firefox

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 93%
Storage temperature (T-T): -20 - 60 °C

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Width: 375 mm
Depth: 284.3 mm
Height: 53 mm
Weight: 1.51 kg
Package width: 433 mm
Package depth: 141 mm
Package height: 366 mm
Package weight: 2.76 kg
