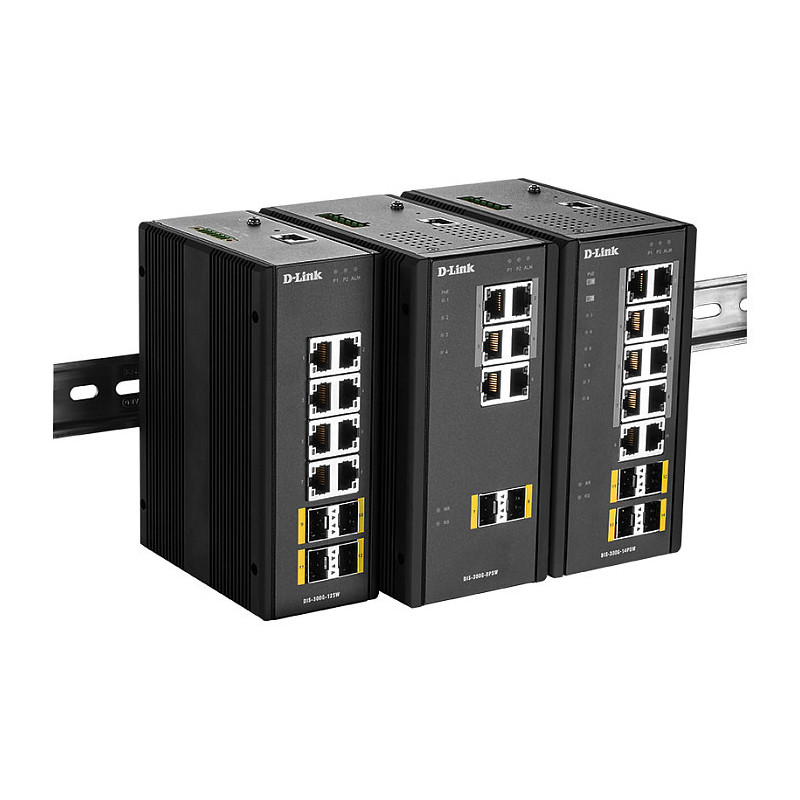

D-Link DIS‑300G‑12SW

D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... DC input voltage: 12 - 58 V. Wall mountable

Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with SFP slots
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That's why every DIS-switch comes with a 5-year D-Link warranty.

High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic shaping
Feature: System event log
MIB support: RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Fiber optic connector: LC

Network

Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs: 1024

Data transmission

MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000

Security

DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithms: HTTPS, SNMP, SNMPv3, SSH
Authentication type: IEEE 802.1x, RADIUS
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Design

Product colour: Black
LED indicators: LAN, Status
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Electromagnetic compatibility: FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6

Performance

Feature: Firmware upgradeable

Power

DC input voltage: 12 - 58 V
Power consumption (max): 17 W
Power protection features: Over current, Reverse polarity

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 61 mm
Depth: 154 mm
Height: 109 mm
Weight: 1.09 kg

Packaging data

Package width: 195 mm
Package depth: 242 mm
Package height: 118 mm
Package weight: 1.53 kg

Technical details

Shipping (inner) case height: 27 cm
Shipping (inner) case width: 41 cm
Shipping (inner) case length: 60 cm
Shipping (inner) case net weight: 15.3 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 346.7 kg
Master (outer) cases per pallet (air): 20 pc(s)
Products per pallet (air): 200 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 110 cm
Pallet height (air): 148.5 cm
Pallet gross weight (sea): 478.6 kg
Master (outer) cases per pallet (sea): 28 pc(s)
Products per pallet (sea): 280 pc(s)
Pallet height (sea): 2.02 m
Shipping (inner) case gross weight: 16.5 kg

Certificates

Certification: IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE

Logistics data

Harmonized System (HS) code: 85176990
