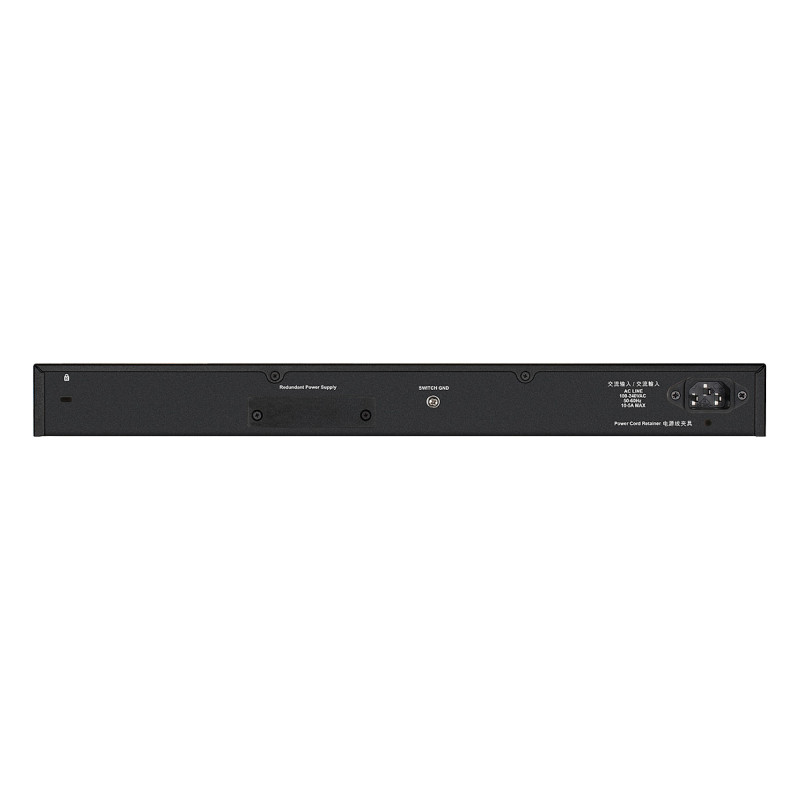

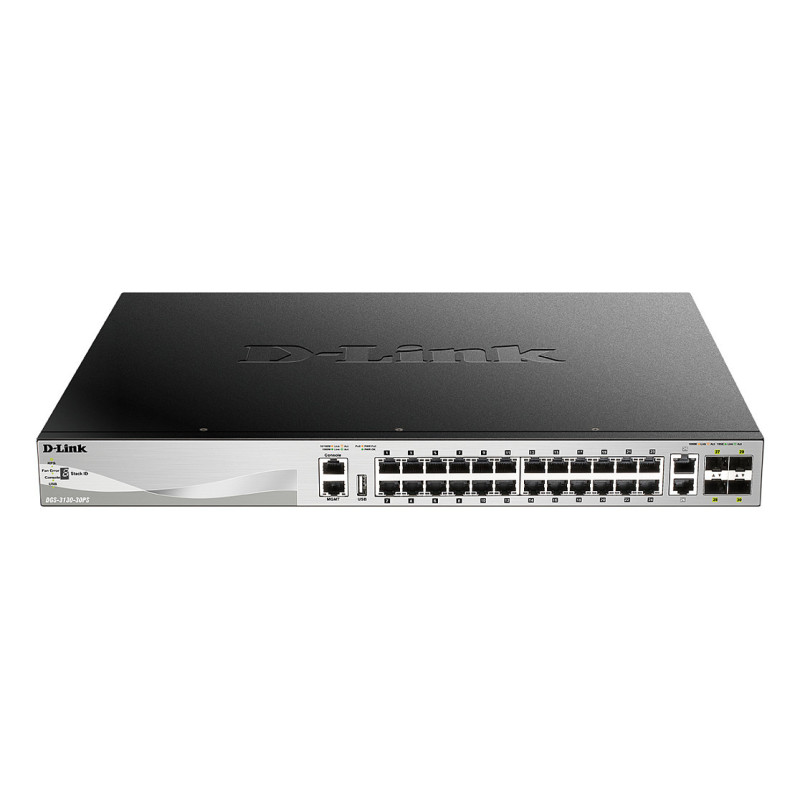

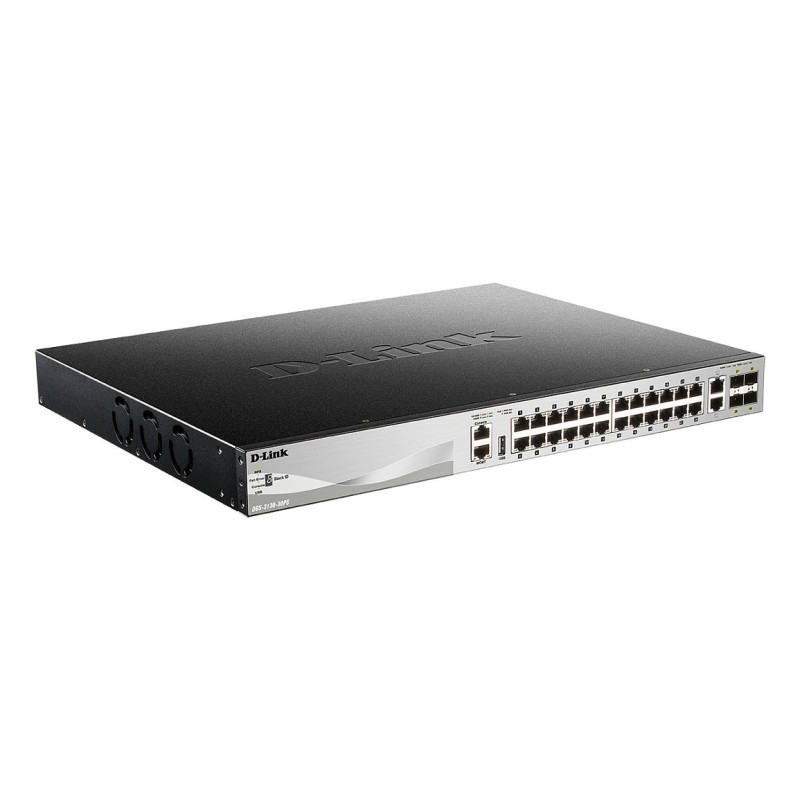

D-Link DGS-3130-30PS / E network switch

D-Link DGS-3130-30PS/E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 168 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Fiber optic connector: SFP+
USB 2.0 ports quantity: 1
Power connector: AC-in jack

Network

Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 168 Gbit/s
Forwarding rate: 125 Mpps
MAC address table: 16384 entries
Number of queues: 8
Feature: Jumbo frames support
Packet buffer memory: 2 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) egress: 512
Access Control List (ACL) ingress: 2048
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv3, SSH-2, SSL/TLS
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
Feature: Password protection
Queue scheduling algorithms: Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Multicast features: Controllable multicast

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
Routing protocols: RIP

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Grey
LED indicators: Yes
Number of fans: 3 fan(s)

Performance

Physical stacking (units): 9
Virtual stacking (units): 32
Noise level: 53.4 dB
Mean time between failures (MTBF): 279418 h

Power

Power source: DC
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 38.74 W
Power consumption (max): 454.55 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1550.92 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 430 mm
Height: 44 mm
Weight: 5.6 kg

Certificates

Certification: FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI
