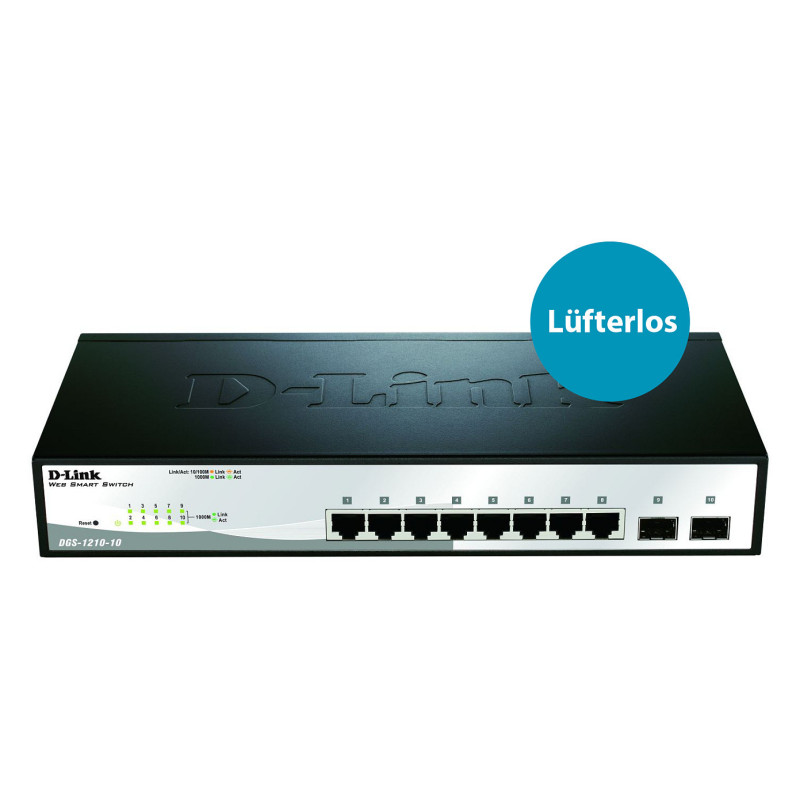

D-Link DGS-1210-10

D-Link DGS-1210-10. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U

The DGS-1210-52 Web Smart switch with advanced management functions including SNMP, Web Management, SmartConsole Utility, and compact command line provides a complete and affordable solution for small and medium businesses.

The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv6*. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and medium-sized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

Energy Saving
DGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switch so that unnecessary power consumption can be saved during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC's operating system. In the first installation, the SmartConsole Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, offer a sophisticated method of batch operations for multiple switches.

Auto Surveillance VLAN and Voice VLAN
The D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic are at their highest levels. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features
Equipped with a complete line-up of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network
D-Link's innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
MIB support: Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: Auto-negotiation

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.512 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black, Grey

Performance

Mean time between failures (MTBF): 205249 h

Power

AC input voltage: 100 - 240 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 373.96 BTU/h

Weight & dimensions

Width: 280 mm
Depth: 126 mm
Height: 44 mm
Weight: 980 g

Packaging data

Package width: 286 mm
Package depth: 325 mm
Package height: 70 mm
Package weight: 2.08 kg

Technical details

Shipping (inner) case height: 31.7 cm
Shipping (inner) case width: 34.6 cm
Shipping (inner) case length: 38.2 cm
Shipping (inner) case net weight: 10.4 kg
Products per shipping (inner) case: 5 pc(s)
Pallet gross weight (air): 425.5 kg
Master (outer) cases per pallet (air): 36 pc(s)
Products per pallet (air): 180 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 140.3 cm
Pallet gross weight (sea): 625.9 kg
Master (outer) cases per pallet (sea): 54 pc(s)
Products per pallet (sea): 270 pc(s)
Pallet height (sea): 2.04 m
Shipping (inner) case gross weight: 11.1 kg

Logistics data

Harmonized System (HS) code: 85176990
