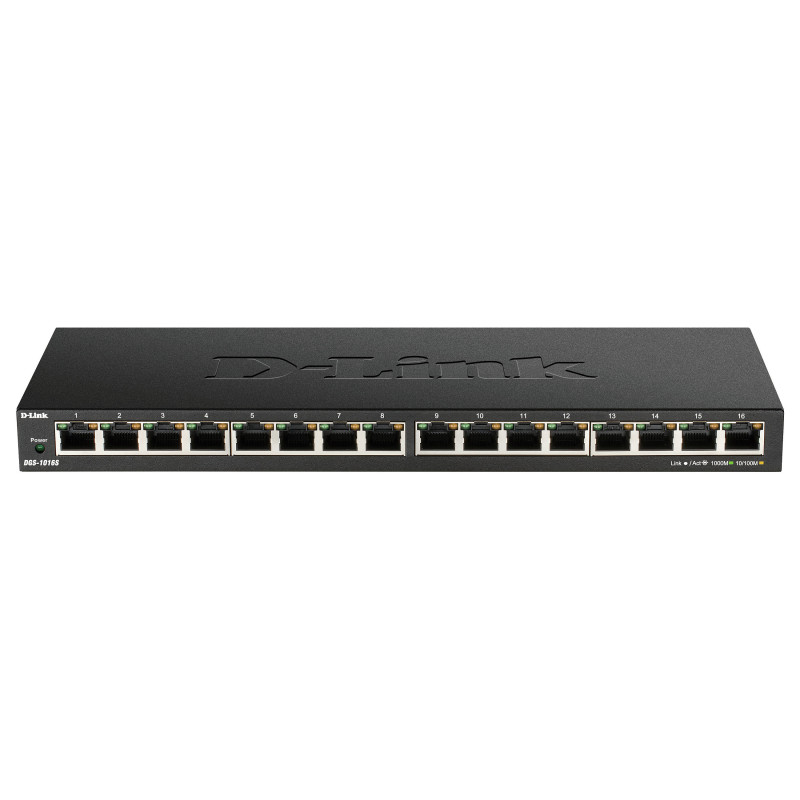

D-Link DGS-1016S

D-Link DGS-1016S. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. DC input voltage: 12 V

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Cable length detection

Data transmission

Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 0.512 MB

Design

Product colour: Black
LED indicators: Activity, Link, Power, Speed

Performance

Feature: Fanless
Mean time between failures (MTBF): 564658 h

Power

DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 8.89 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 30.32 BTU/h

Weight & dimensions

Width: 280 mm
Depth: 110 mm
Height: 25 mm
Weight: 770 g

Certificates

Certification: CE, FCC, ICES 003, RCM
