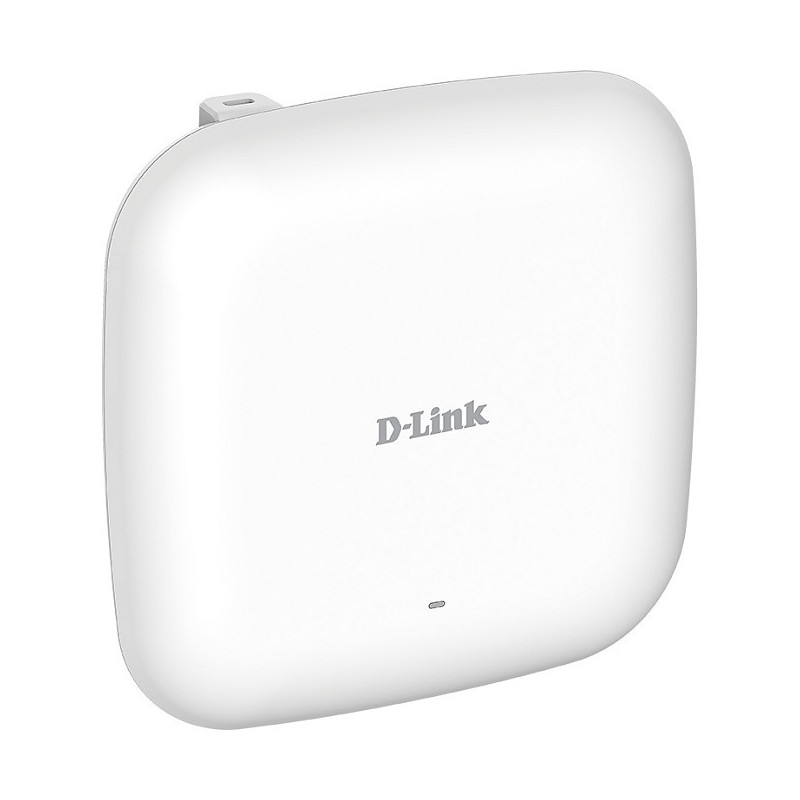

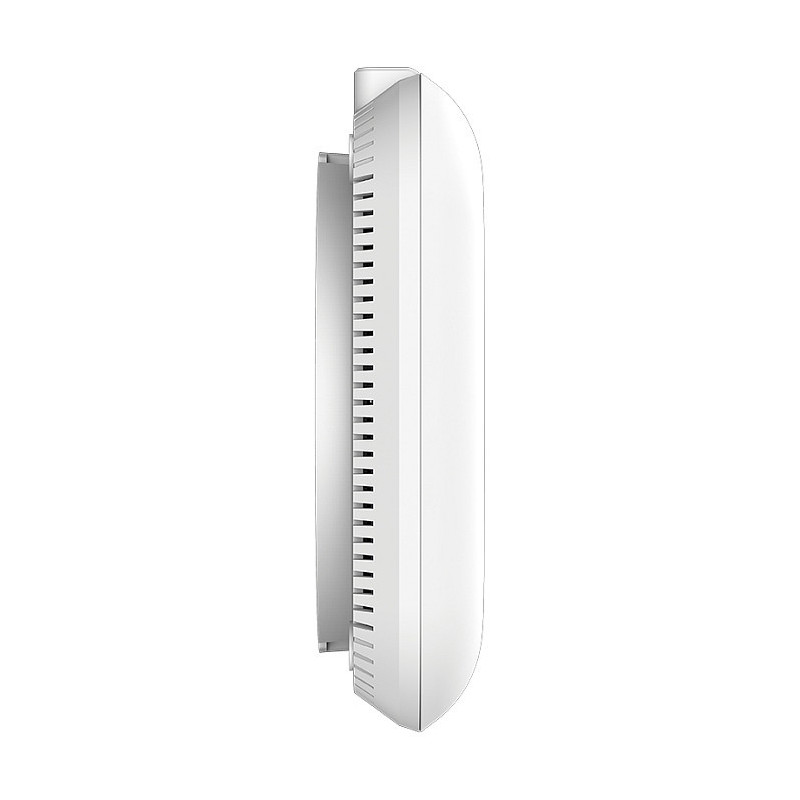

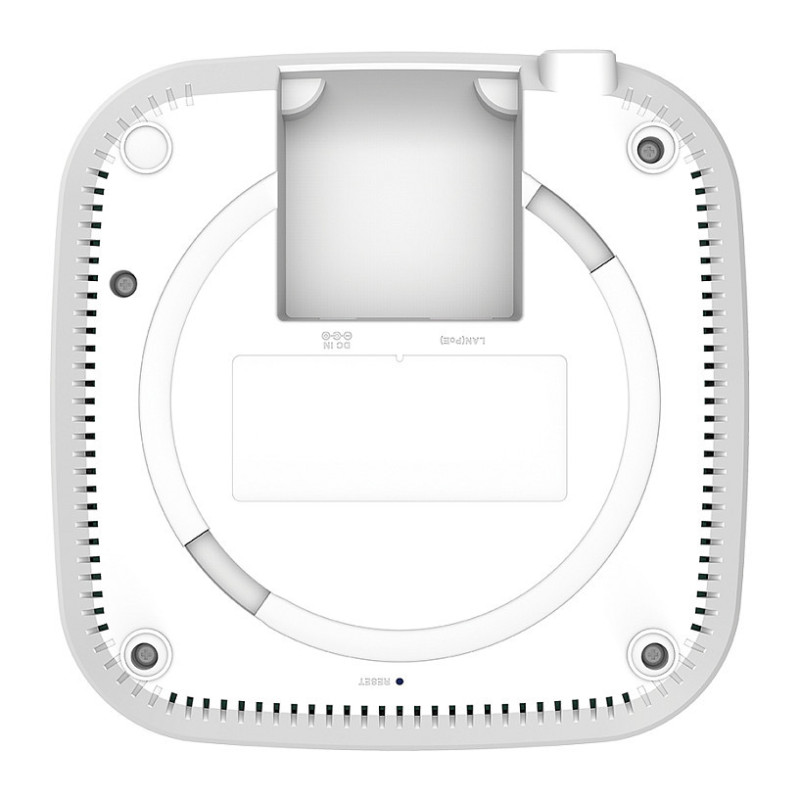

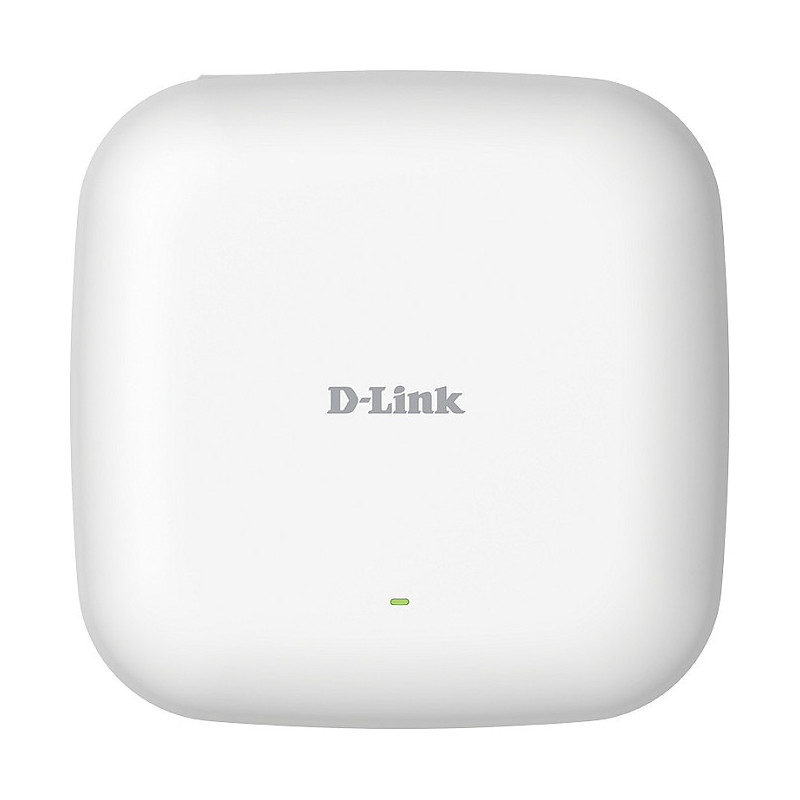

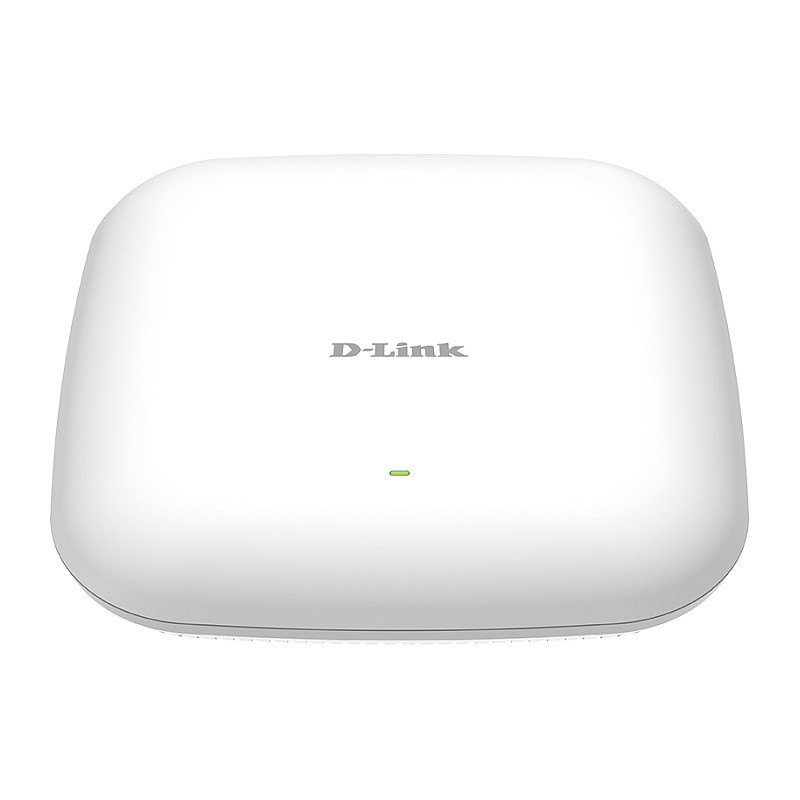

D-Link AC1200

D-Link Wireless AC1200 Wave2 Dual Band Indoor PoE Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, SSID. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 6.5 W

The WiFi4EU ready DAP-2662 Wireless AC1200 Wave 2 Dual-Band PoE Access Point is designed to provide wireless connectivity in public places, such as public buildings, libraries, health centres and museums, with secure and centrally manageable dual-band Wi-Fi. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless. For centralise network management, administrators can use D-Link's free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1200 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4, 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology: 10/100/1000Base-T(X)
Transmitting power: 26 dBmW
Mean time between failures (MTBF): 341897 h

Security

Security algorithms: 64-bit WEP, 128-bit WEP, SSID
Number of SSID supported: 16

Ports & interfaces

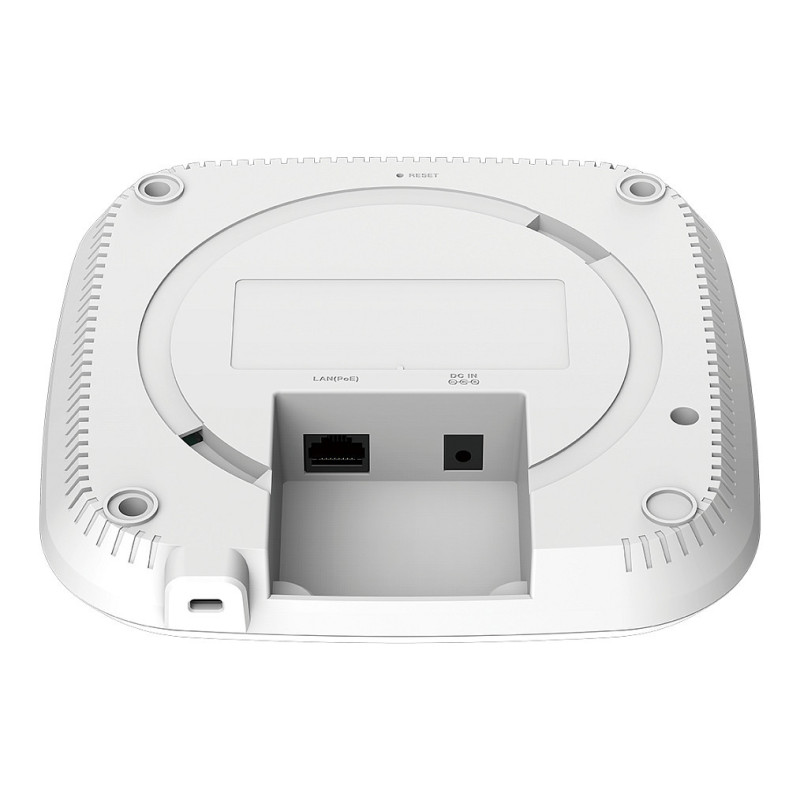

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V
Power consumption (max): 6.5 W

Design

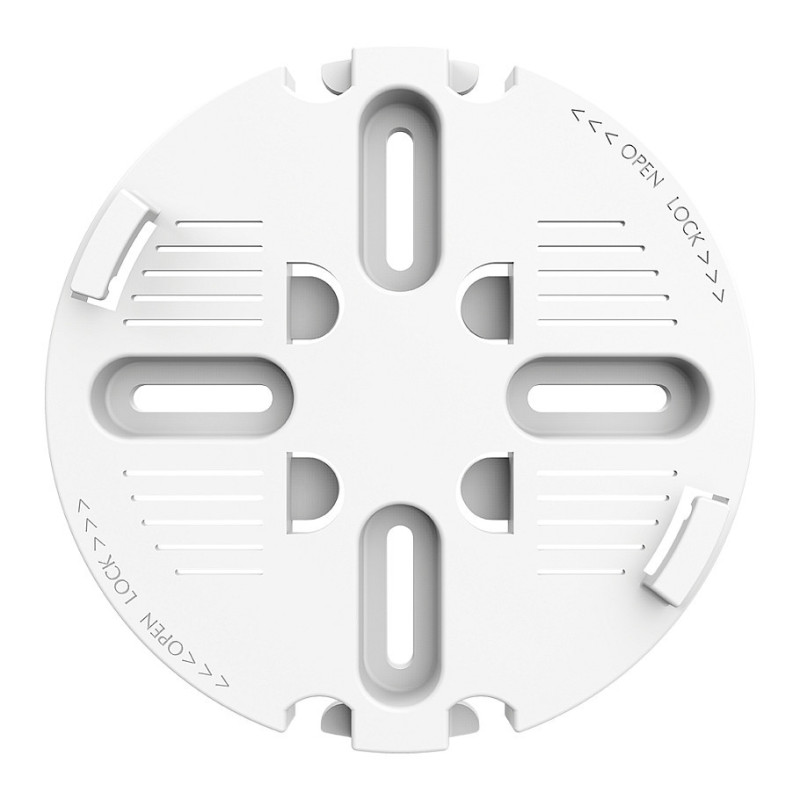

Placement: Ceiling, Table, Wall
Product colour: White
Feature: Cable lock slot
LED indicators: Power

Antenna

Antenna type: Internal
Antenna features: Integrated antenna
Antennas quantity: 2
Antenna gain level (max): 3.8 dBi

Technical details

Shipping (inner) case length: 43.1 cm
Shipping (inner) case width: 38.3 cm
Shipping (inner) case height: 26.8 cm
Shipping (inner) case net weight: 3.9 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 174 kg
Master (outer) cases per pallet (air): 42 pc(s)
Products per pallet (air): 420 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 110 cm
Pallet height (air): 2.01 m
Pallet gross weight (sea): 174 kg
Master (outer) cases per pallet (sea): 42 pc(s)
Products per pallet (sea): 420 pc(s)
Pallet height (sea): 2.01 m
Shipping (inner) case gross weight: 4 kg

Certificates

Certification: FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint

Weight & dimensions

Width: 170 mm
Depth: 28 mm
Height: 170 mm
Weight: 350 g

Packaging data

Package width: 208 mm
Package depth: 248 mm
Package height: 73 mm
Package weight: 390 g

Packaging content

Quantity per pack: 1 pc(s)

Other features

Frequency range: 2400 - 5850 MHz

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 65 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 85176990
