„Cudy WE9300“ tinklo plokštė

Cudy WE9300. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 5765 Mbit/s, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz). Antenna type: 2x2

Lightning-Fast Wi-Fi Rivaling Ethernet
Enjoy a increadibly stable multi-gig connection that ensures seamless performance by aggregating multiple avaialble bands. This requires the Wi-Fi router and the desktop system to both support the MLO feature. Dual-band aggregation is available (6 + 5 GHz, 6 + 2.4 GHz, or 5 + 2.4 GHz).

More Reliable Bluetooth 5.4
Enhance power efficiency and boost reliability with integrated Bluetooth 5.4. Experience longer battery life on your bluetooth keyboards, mice, and headphones and enjoy reduced latency and fewer recharges.

Standard and Lower Brakets Included
Suitable for both standard tower PCs and low-profile HTPC builds. Install the antennas and position them vertically facing your router for the optimal signal quality.

Compatible with Mainstream Motherboards
The Wi-Fi and powering requires a PCI-E 1x, 4x, 8x, or 16x slot on the motherboard. The Bluetooth function requires a USB 9-Pin connector on the motherboard.

Ports & interfaces

Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN / Bluetooth

Network

Maximum data transfer rate: 5765 Mbit/s
Networking standards: IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac
Feature: Wi-Fi
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Modulation: 4096-QAM
Security algorithms: WPA, WPA-PSK, WPA2, WPA3
Feature: Bluetooth
Bluetooth version: 5.4

Design

Component for: PC
Feature: Internal
Antenna: Yes
Antenna design: External
Antenna type: 2x2
Antenna gain level (max): 5.32 dBi

System requirements

Windows operating systems supported: Windows 11

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 70 mm
Depth: 45.5 mm
Height: 20 mm
Weight: 114.5 g

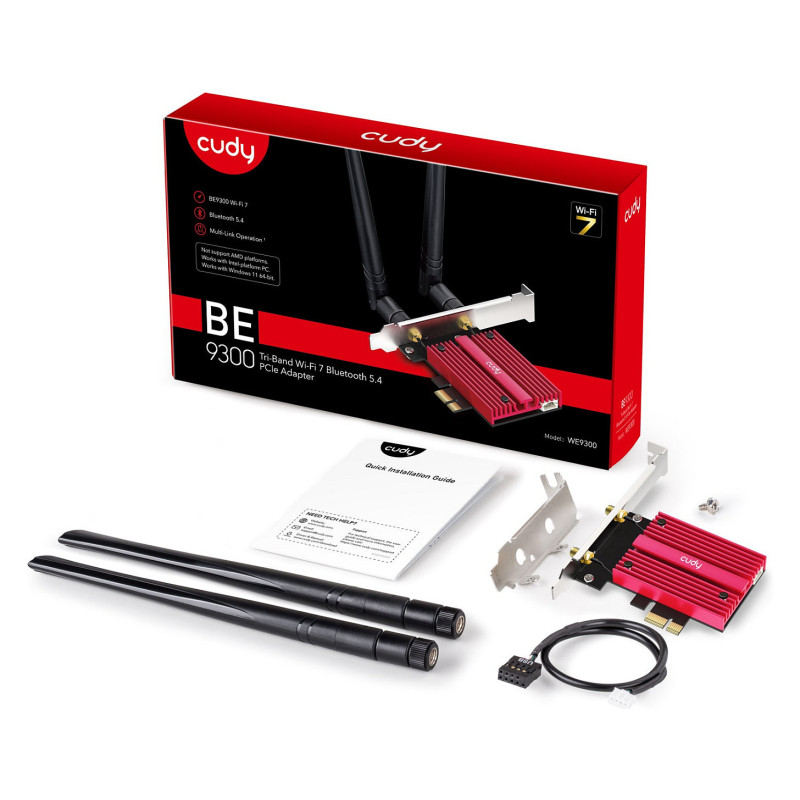

Packaging content

Feature: Mounting brackets included
Feature: Quick installation guide

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC)
