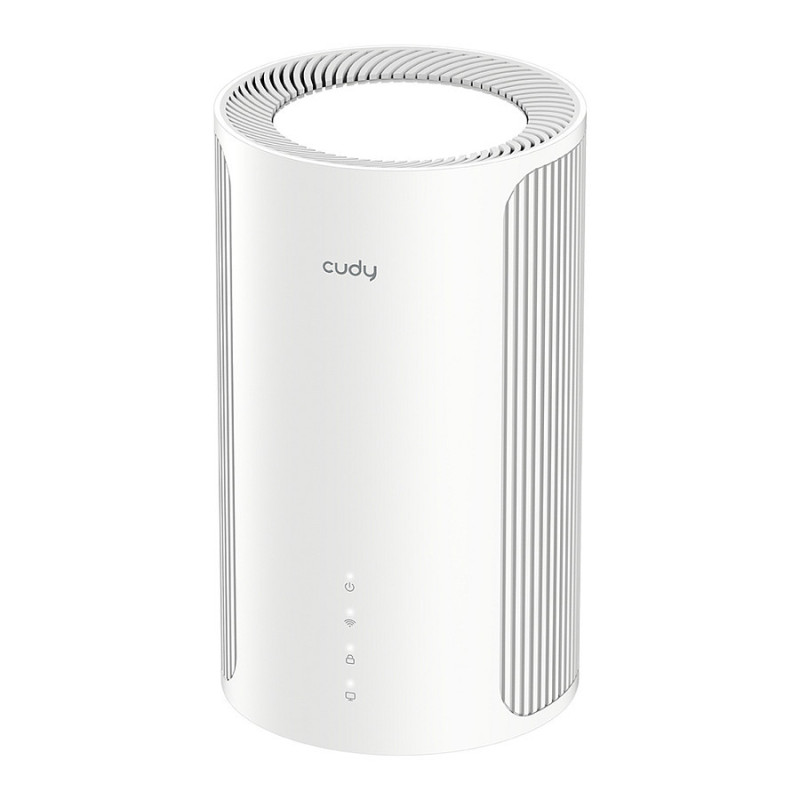

Cudy M11000

Cudy M11000. Product colour: White, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 4324 Mbit/s. Processor frequency: 1.5 GHz, Internal memory: 128 MB, Flash memory: 512 MB. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, AC adapter output voltage: 12 V. Certification: FCC, CE

A tri-band WiFi 7 Mesh System catering to latency-sensitive, speed-demanding, and large-scale scenarios. MLO provides extraordinary Wi-Fi speed boost. Suitable for internet access up to 2.5 Gbps.

Design

Product type: Mesh router
Product colour: White
LED indicators: Status, System
Antenna type: Internal
Antennas quantity: 6
Antenna direction type: Omni-directional
Maximum coverage: 260 m²
Feature: Reset button

Wireless LAN features

Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 4324 Mbit/s
WLAN data transfer rate (first band): 2882 Mbit/s
WLAN data transfer rate (second band): 2882 Mbit/s
WLAN data transfer rate (third band): 688 Mbit/s
Networking standards: IEEE 802.11be
Security algorithms: WPA, WPA2, WPA3
Feature: Guest access

Features

Feature: Built-in processor
Processor cores: 4
Processor frequency: 1.5 GHz
Internal memory: 128 MB
Flash memory: 512 MB
Virtual assistant: No
Feature: Quality of Service (QoS) support
Feature: Parental control
Feature: MU-MIMO technology
Feature: MIMO

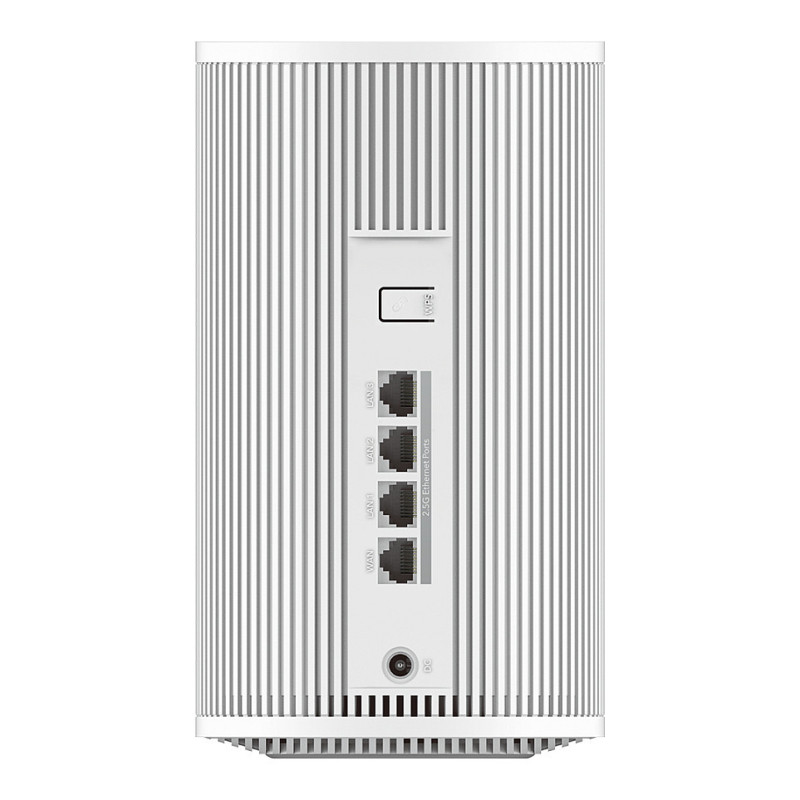

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: Ethernet WAN
Feature: DC-in jack

Power

AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 12 V
AC adapter output current: 2 A

Certificates

Certification: FCC, CE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 116 mm
Depth: 116 mm
Height: 202 mm
Weight: 852.5 g

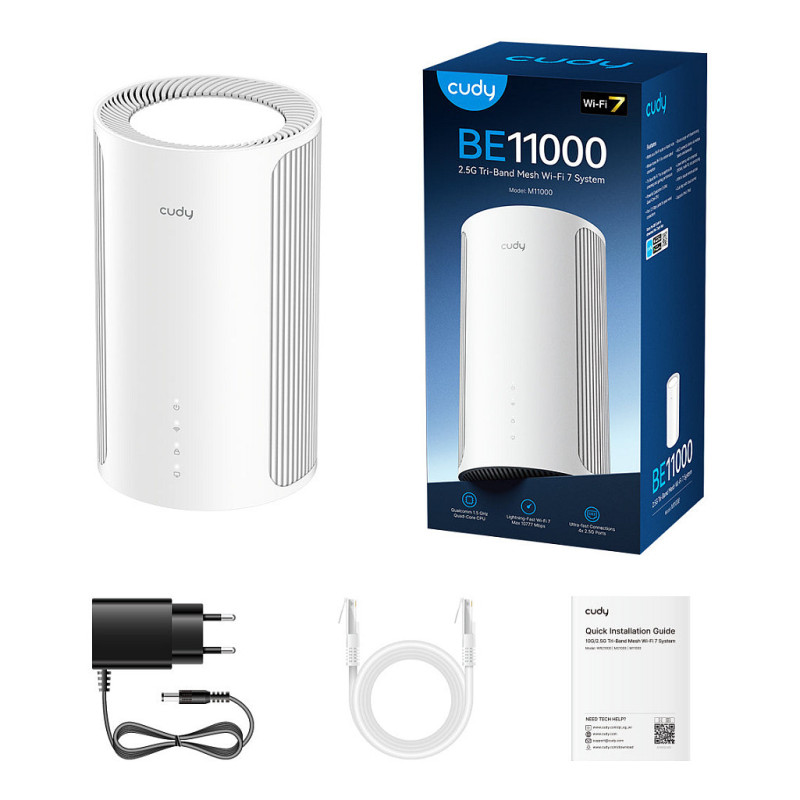

Packaging content

Number of products included: 1 pc(s)
Feature: AC adapter included
Feature: Ethernet cable
Feature: Quick installation guide

Packaging data

Package width: 313 mm
Package depth: 152 mm
Package height: 132 mm
Package weight: 852.5 g
