„Cudy GS1005P“ tinklo komutatorius

Cudy GS1005P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery
Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

PoE Management Made Simple

Extend PoE Reach. Enhance Client Security.

Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Easy Installation. Robust Protection.

Plug and Play
Connect your router to the uplink port, client devices to PoE ports, and power on the PoE switch—then you're good to go.

Fit into a Distribution Box
Fits easily into most distribution boxes and makes cable management a breeze.

Protect Clients with Outstanding EMC
Shield your cameras and access points, from surges in power grid and ESD, delivering rock-solid reliability.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Metal Casing. Wallmount Ready.
Metal casing delivers simplicity and protection for the network hub. Need to save floor spaces? The wall-mounting kit is included in the box to help you.

Versatile Scenarios

Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Uplink ports quantity: 1
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2048 entries

Design

Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, PoE, Power

Performance

Feature: Plug and Play

Power

Power source: DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 1.25 A
Input voltage: 52 V
Power consumption (typical): 5 W
Power consumption (max): 60 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 60 W

Other features

Warranty period: 1 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 119 mm
Depth: 85 mm
Height: 28 mm
Weight: 261 g

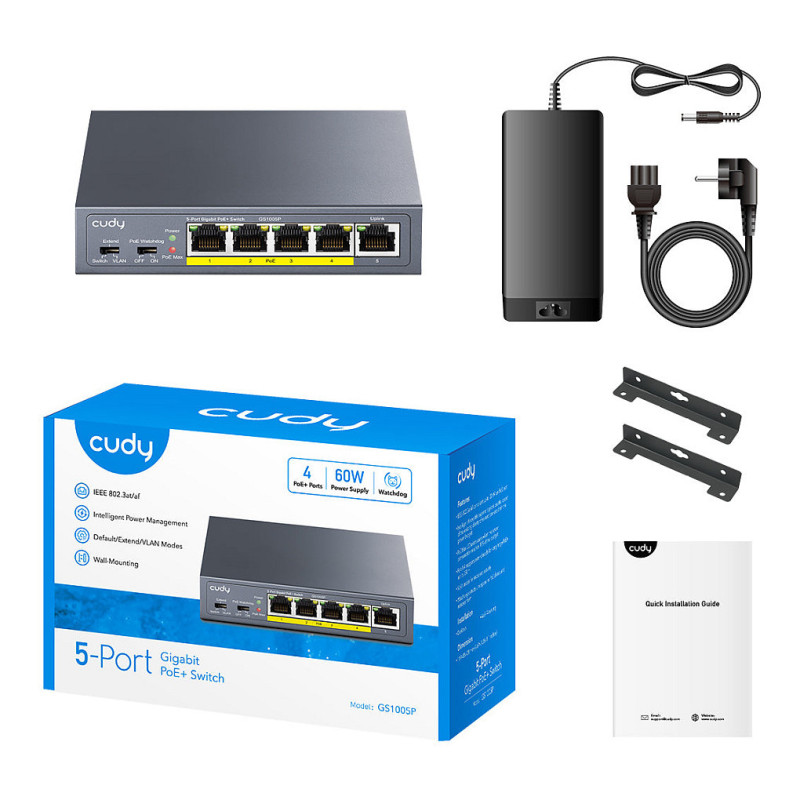

Packaging content

Cables included: AC, DC
Feature: User guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 186 mm
Package depth: 123 mm
Package height: 81.5 mm
Package weight: 784 g

Logistics data

Country of origin: China
