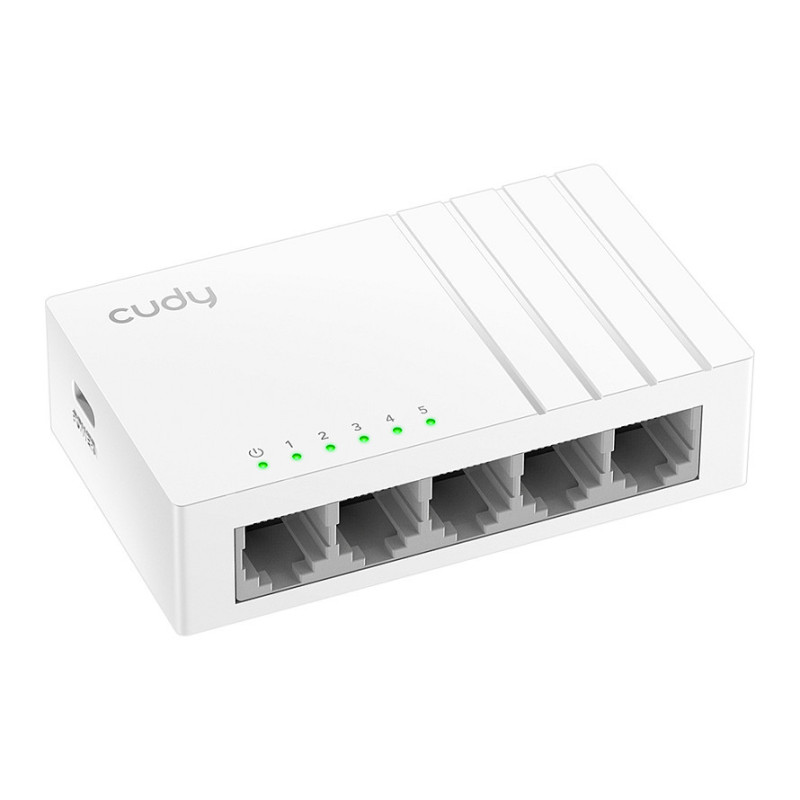

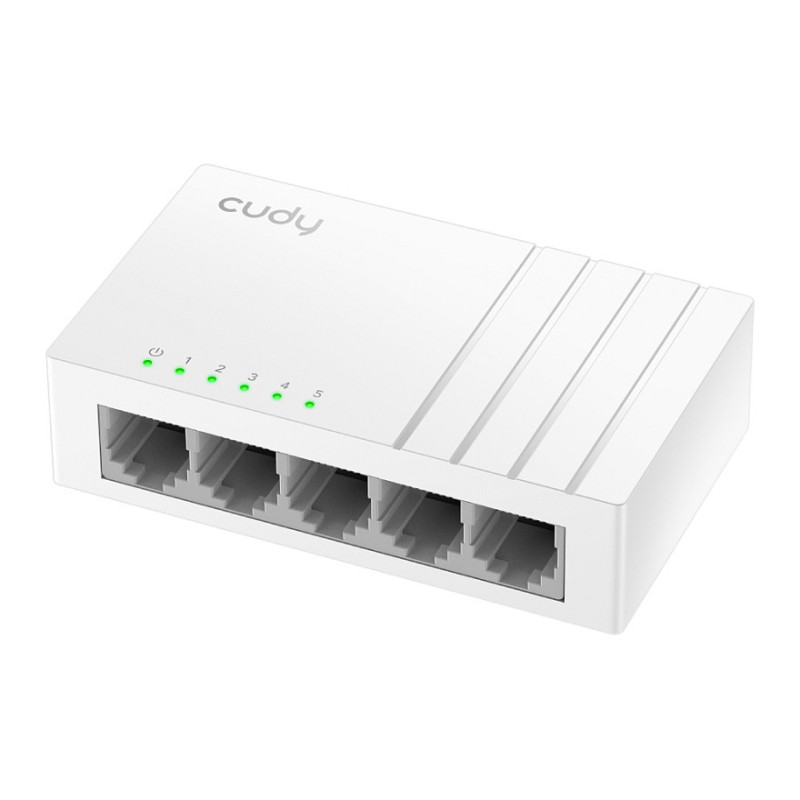

„Cudy FS105D“ tinklo komutatorius

Cudy FS105D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 512 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

10/100Mbps Speed
Connect PC, cameras, AP, and TV for stable wired connectivity

Compact Design
Place it in a distribution box or cable box without assigning extra space.

Power-Efficient Chipset
Super power-efficient with 0.5 maximum and 0.32W standby power consumptions.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting scenario.

Flexible USB-C Powering

No Sockets Nearby? No Worries
No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.


A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.

Suitable for Business and Home Users
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet

A 5-FE switch with USB-C power input designed for wired network expansion in home and office environments.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat5
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100 Mbit/s

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.744 Mpps
MAC address table: 512 entries
Packet buffer memory: 0.448 MB

Design

Product colour: White
LED indicators: LAN, Power

Power

Power source: DC
Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A

Other features

Warranty period: 1 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 88 mm
Depth: 52.5 mm
Height: 24 mm
Weight: 46.6 g

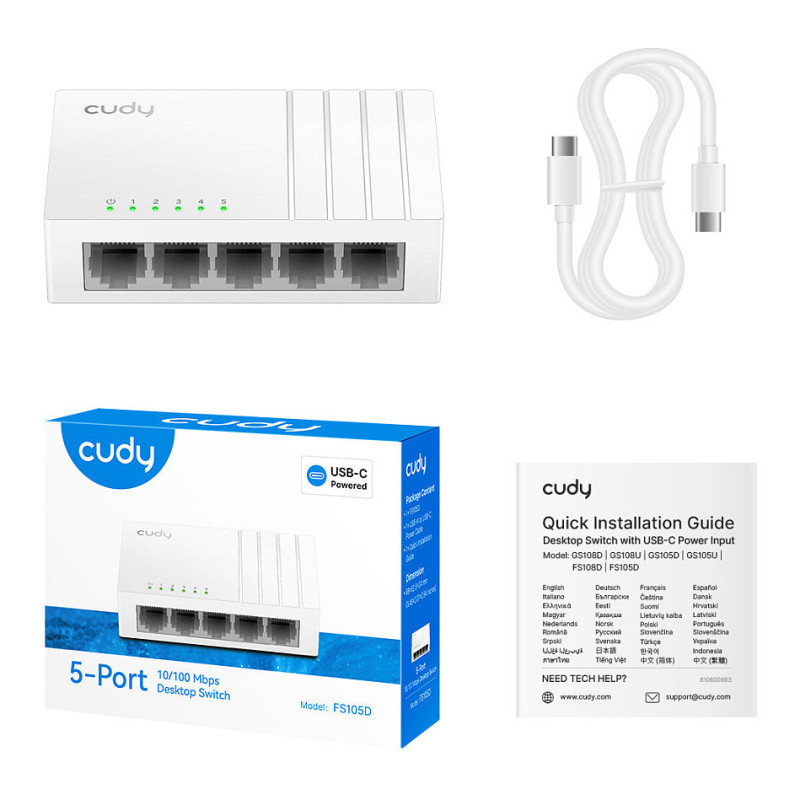

Packaging content

Cables included: DC
Feature: Manual

Packaging data

Package width: 105 mm
Package depth: 80 mm
Package height: 32 mm
Package weight: 100.2 g

Logistics data

Country of origin: China
