„Cudy FS1010P“ tinklo komutatorius

Cudy FS1010P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2048 entries, Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i. Power connector: AC-in jack. Power over Ethernet (PoE)

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

Simplify PoE Management

Extend PoE Reach. Enhance Client Security.

VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

Versatile Scenarios

Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Uplink ports quantity: 2

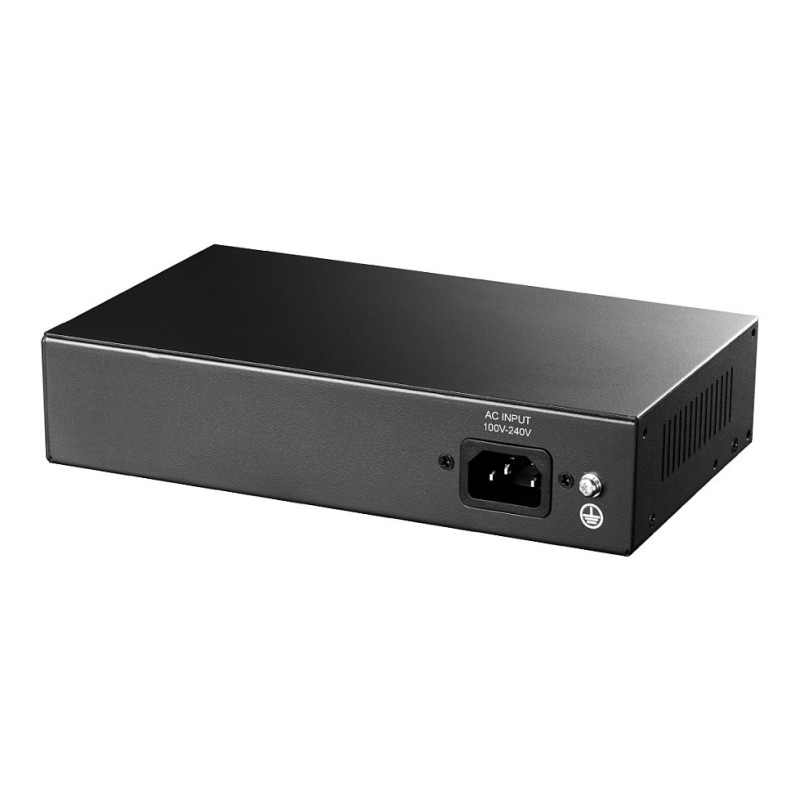

Power connector: AC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat5, Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100 Mbit/s

Data transmission

Switching capacity: 2 Gbit/s
Forwarding rate: 1.488 Mpps
MAC address table: 2048 entries
Feature: Store-and-forward
Packet buffer memory: 0.25 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, PoE, Power

Performance

Feature: Plug and Play
Feature: Fanless
Mean time between failures (MTBF): 50000 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 2 W
Power consumption (max): 120 W
Feature: Surge protection
Surge protection voltage: 4 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Other features

Warranty period: 1 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 200 mm
Depth: 120 mm
Height: 45 mm
Weight: 610 g

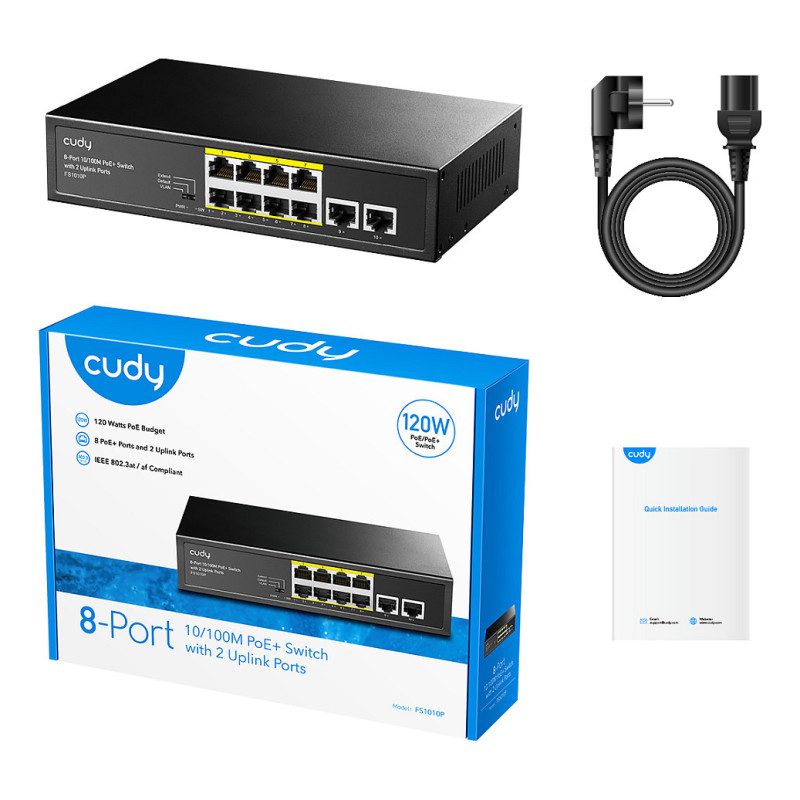

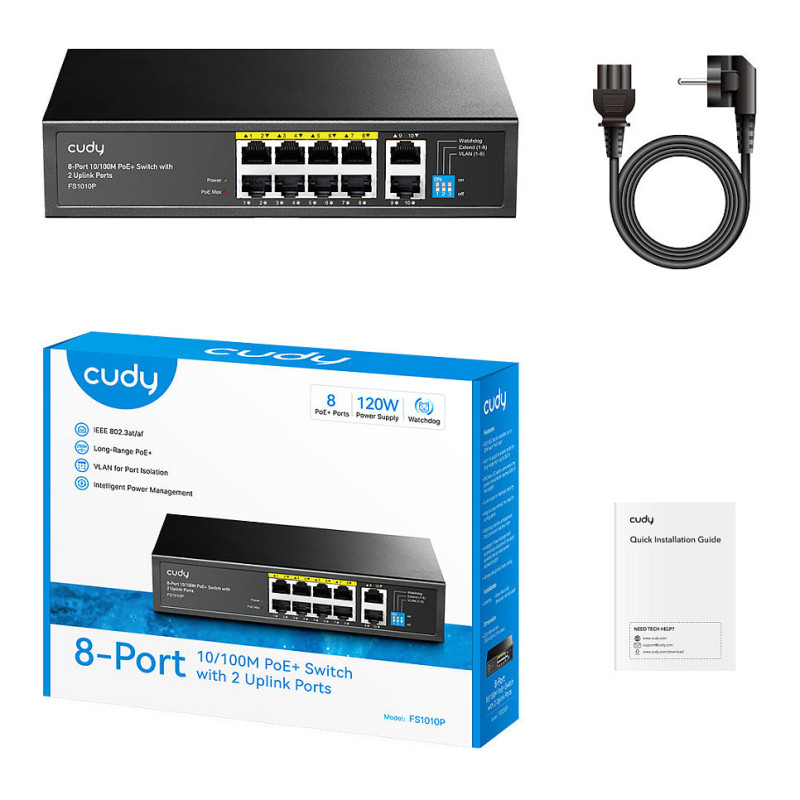

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

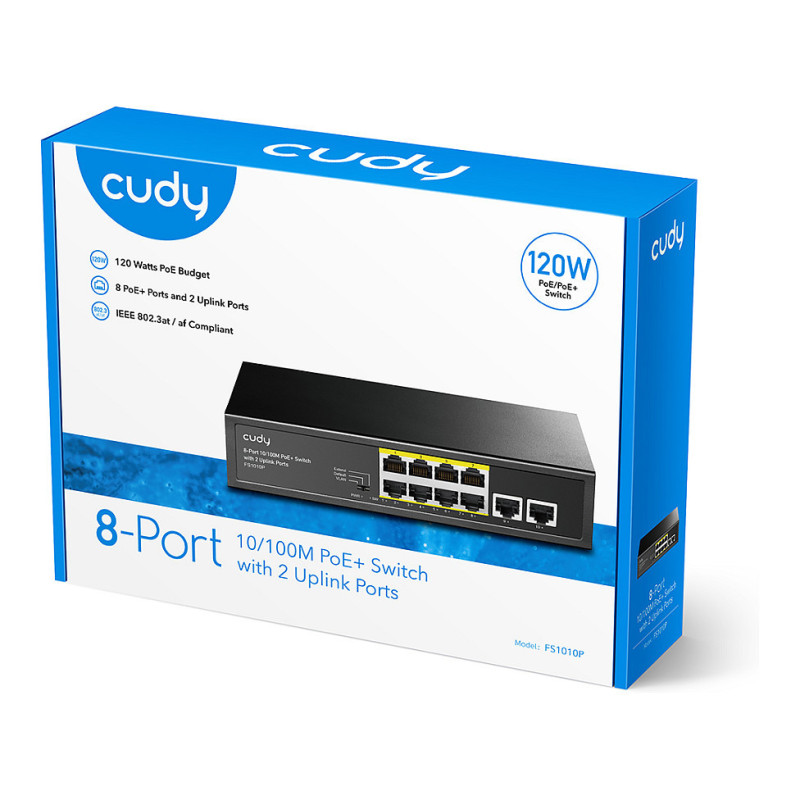

Package type: Box
Package weight: 926 g

Technical details

Products per shipping (inner) case: 16 pc(s)

Logistics data

Country of origin: China
