„Cudy AP3000“ belaidis prieigos taškas

Cudy AP3000. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2976 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 12 W

Premium Wi-Fi 6 with 2.5G Port
Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.

Connects 150 Devices with 512 MB RAM
1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.

5 Antennas and 3+2 Strucutre Boost Coverage
Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.

Seamless Coverage with Fast Roaming

Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

Advanced Business Features

Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).

Band Steering
Assign devices to less congested bands.

Auto Channel Selection
Avoid signal interruptions with nearby access points.

Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.

Multi-Mode for Multiple Scenarios

Access Point
Simply create a Wi-Fi spot behind a router.

Wi-Fi Router
Please use the Router mode when PPPoE authorization or creating a separate subnet is needed.

Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

Flexible Wired-and-Wireless Hybrid Backhaul

Simple Wireless Mesh Backhaul

Hybrid Backhaul for Higher Performance
Versatile Powering and Installation

Flexible PoE/DC Power Options
Supports 802.3at/af PoE, 48-57V Passive PoE, 12-48V DC Power input. Please note: DC adapter is not included in the package.

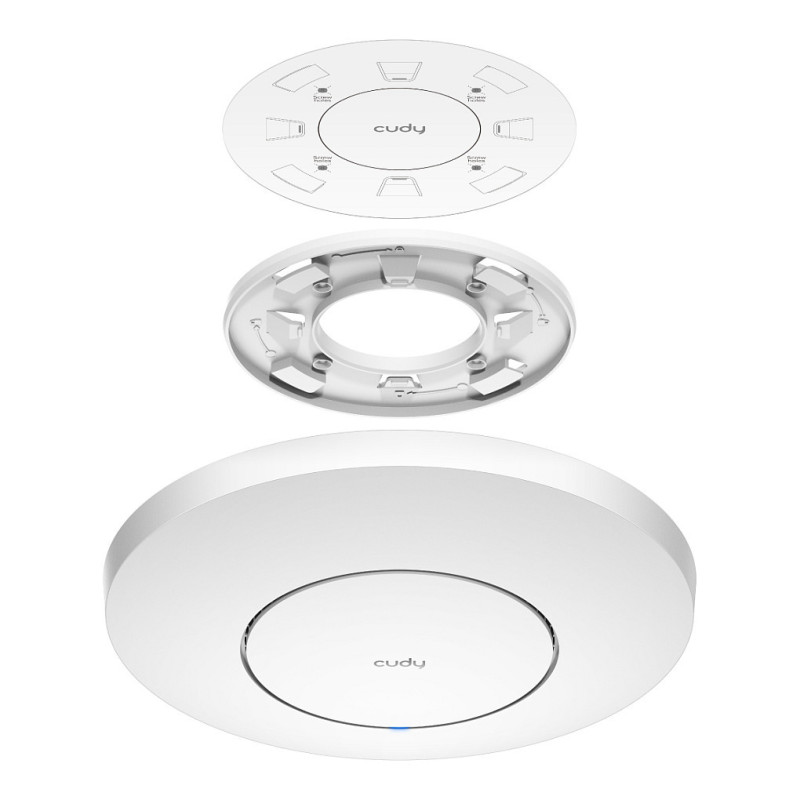

Versatile Mounting
Ceiling Mounting
Wall Mounting

Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2976 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Channel bandwidth: 160 MHz
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Fast roaming
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Operating modes: Wireless Access Point, Wireless Router, Wireless Extender, WISP
Feature: Quality of Service (QoS) support
Feature: BeamForming
Maximum outdoor range: 200 m

Security

Security algorithms: WPA, WPA2, WPA3
Number of SSID supported: 8
Feature: Guest access

Protocols

Feature: DHCP client

Management features

Feature: Web-based management
Feature: Syslog

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE
DC voltage range: 48-57 V
Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 6.1 W
Power consumption (max): 12 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: System

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 5

Performance

Chipset: MT7981BA+MT7976CN+RTL8221B
Feature: Built-in processor
Processor frequency: 1300 MHz
Flash memory: 256 MB
Compatible operating systems: Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Technical details

Products per shipping (inner) case: 20 pc(s)

Weight & dimensions

Width: 232 mm
Depth: 232 mm
Height: 57.1 mm
Weight: 489.6 g

Packaging data

Package width: 283 mm
Package depth: 238 mm
Package height: 68 mm
Package weight: 850.9 g

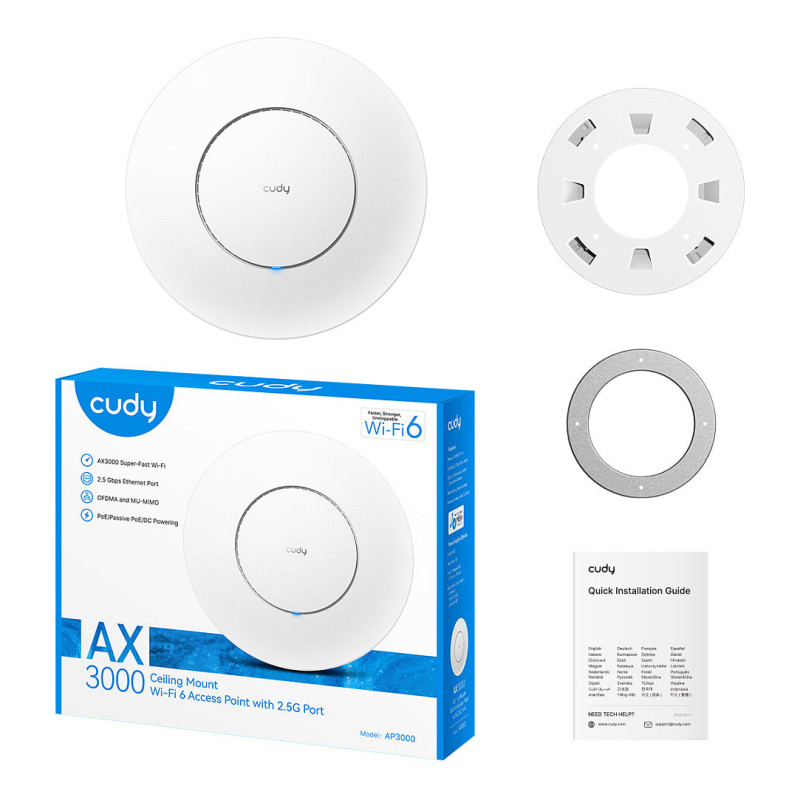

Packaging content

Feature: Mounting kit
Feature: Quick start guide
Bundled software: Cudy Software

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Logistics data

Warranty period: 1 year(s)
Country of origin: China
