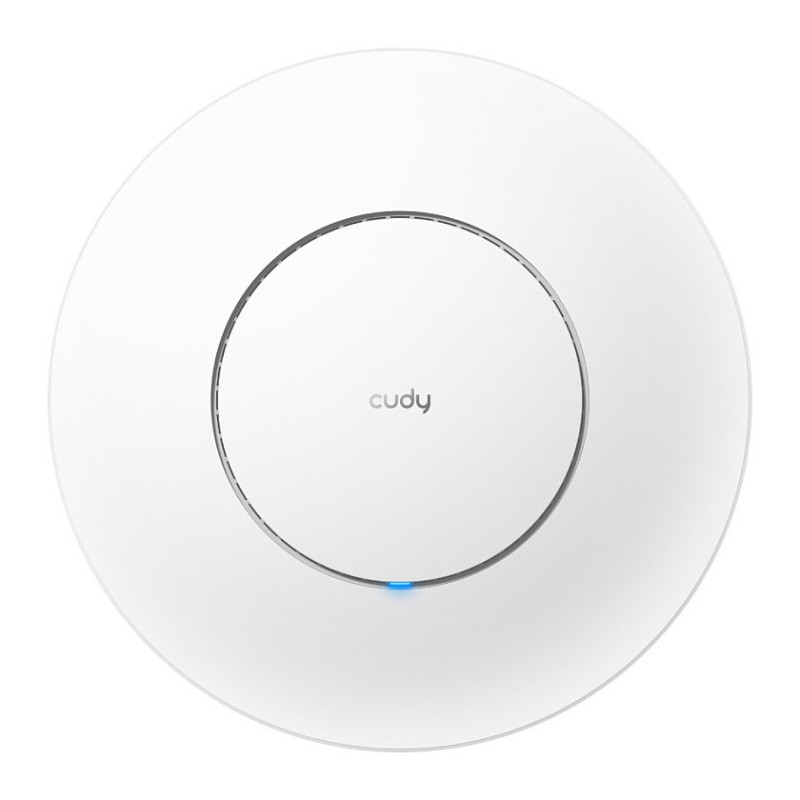

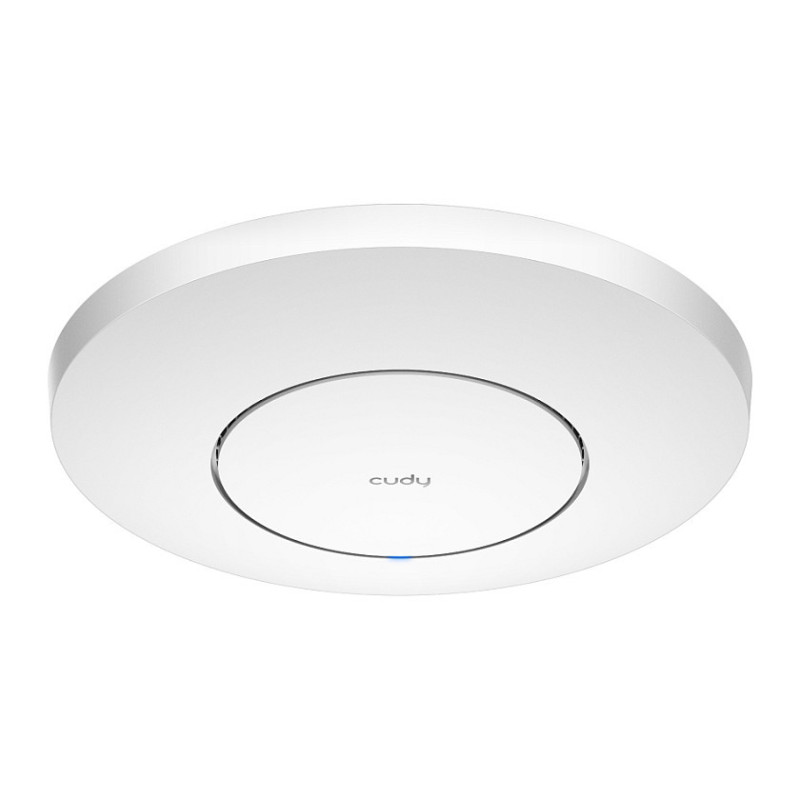

„Cudy AP11000“ belaidis prieigos taškas

Cudy AP11000. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 10777 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 20 W

Pristine 6 GHz for Business-Grade Connectivity
The expanded 6 GHz band offers up to 2.4× more channels than 5 GHz, allowing the AP11000 to deliver unprecedented speeds and handle more client devices in interference-free environments. Perfect for high-density business environments.

Ultra-Performance 10G SFP+ Fiber Uplink
With 10G SFP+ uplink support, AP11000 goes beyond the limits of standard Gigabit connections, ensuring high-throughput, low-latency fiber connectivity and offering a reliable, future-proof solution for enterprise and commercial networks.

Seamless Wi-Fi for Everywhere

Campus

Hospitality

Conference Center

Shopping Mall
Advanced Business Features

Captive Portal
Improve your brand awareness by displaying a customized login page for new clients.

Band Steering
Assign devices to less congested bands.

Auto Channel Selection
Avoid signal interruptions with nearby access points.

Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.

Versatile Powering and Installation

Flexible PoE/DC Power Options
12V/2A DC
802.3at
48-57V Passive PoE
Please note: DC adapter is not included in the package.

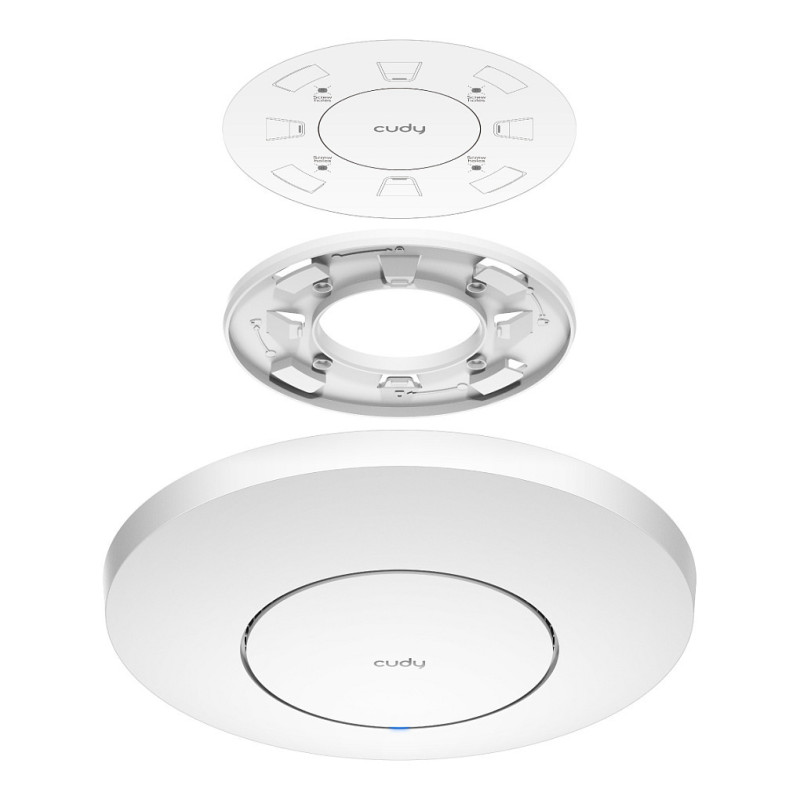

Versatile Mounting
Ceiling Mounting
Wall Mounting
Mounting kits are included in the box.

Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 10777 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4320 Mbit/s
Maximum data transfer rate (6 GHz): 5760 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: BeamForming
Maximum outdoor range: 260 m

Security

Security algorithms: WPA, WPA2, WPA3
Feature: MAC address filtering
Feature: IGMP snooping

Protocols

Feature: DHCP client

Management features

Feature: Syslog
Feature: Cloud-managed

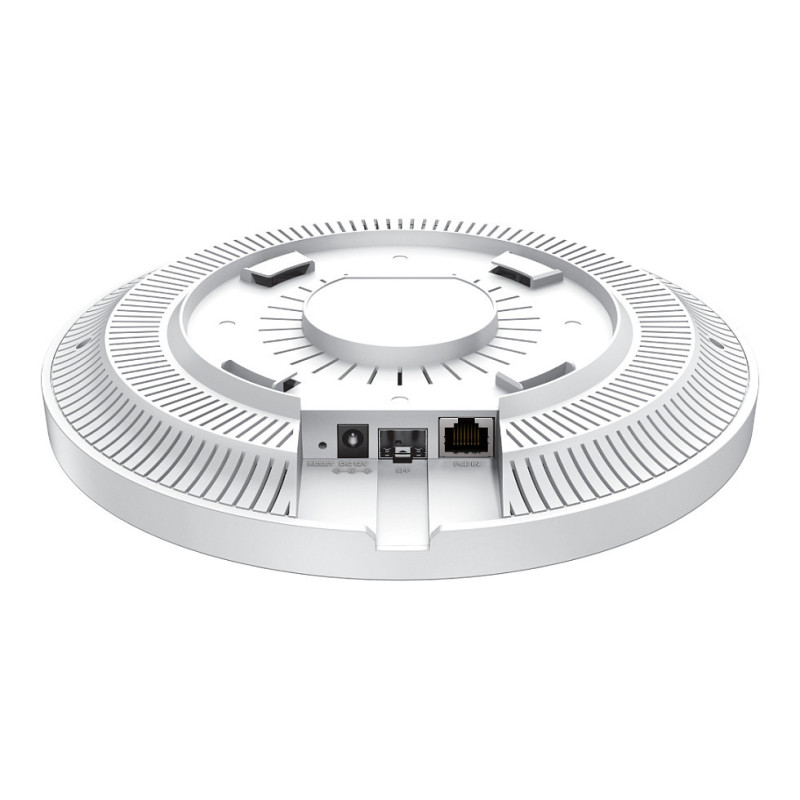

Ports & interfaces

Interface: 2
Ethernet LAN (RJ-45) ports: 1
SFP/SFP+ slots quantity: 1
WAN connection: SFP+, Ethernet (RJ-45)
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
DC voltage range: 48-57 V
Output voltage: 12 V
Output current: 2 A
Power consumption (typical): 12 W
Power consumption (max): 20 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: System

Antenna

Antenna type: Internal
Antennas quantity: 6
Antenna gain level (max): 5.8 dBi

Performance

Processor frequency: 1500 MHz
Flash memory: 128 MB
Internal memory: 512 MB

Technical details

Products per shipping (inner) case: 10 pc(s)

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Width: 231.9 mm
Depth: 57.1 mm
Height: 231.9 mm
Weight: 578.2 g

Packaging data

Package width: 310 mm
Package depth: 238 mm
Package height: 73 mm
Package weight: 944 g

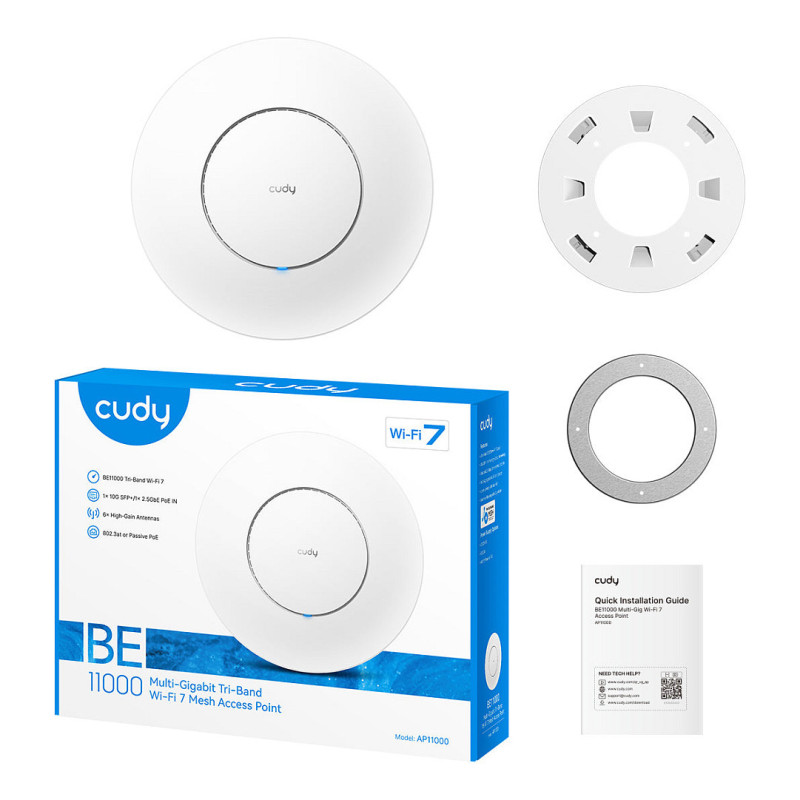

Packaging content

Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Quick start guide
Bundled software: 1

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Warranty period: 1 year(s)
Country of origin: China
