Conceptronic Jareth

Conceptronic Jareth. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 65°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 6 mm

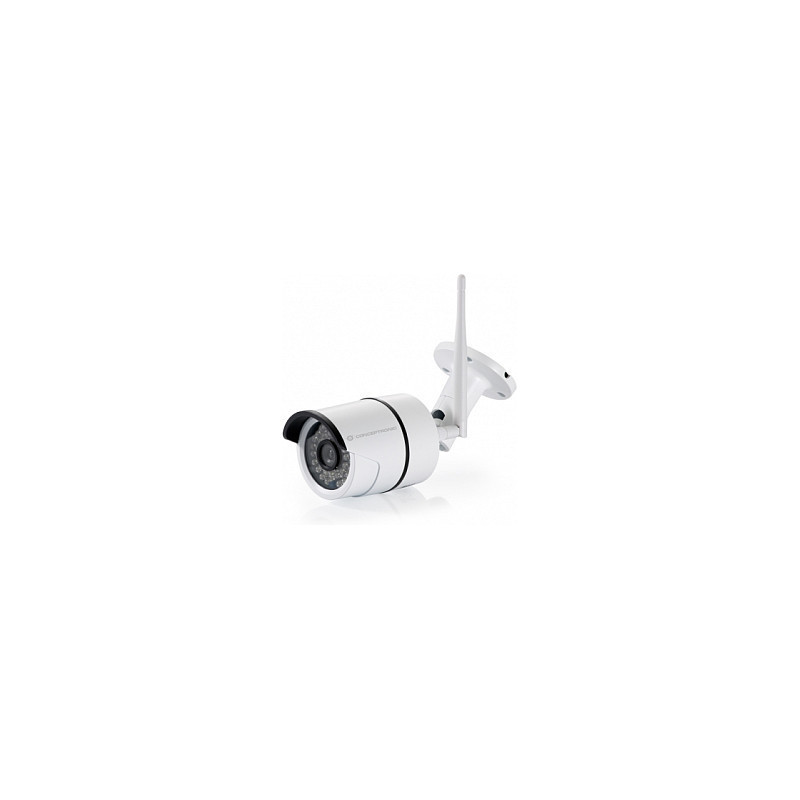

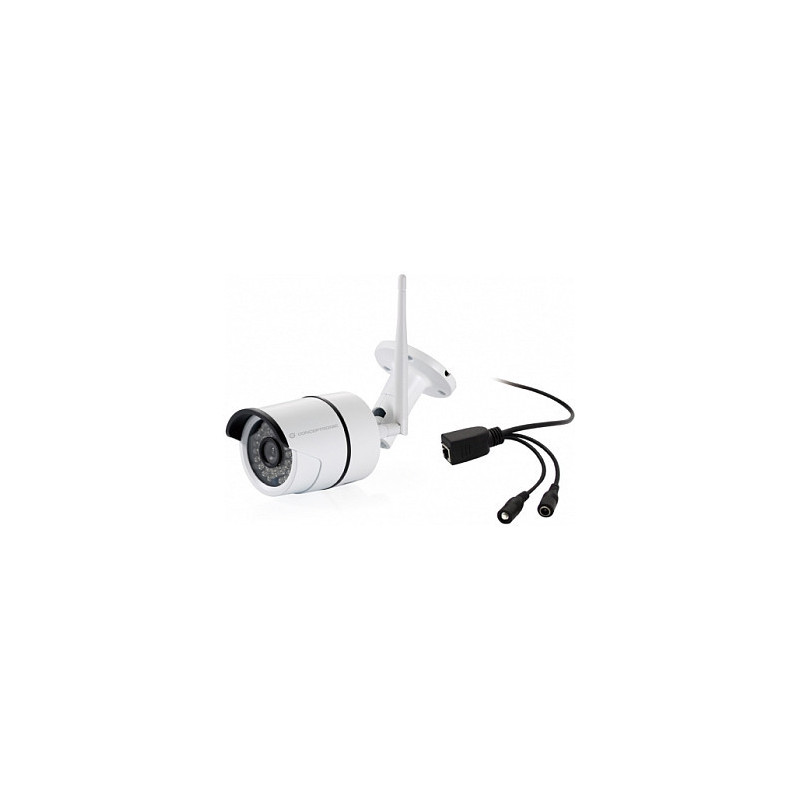

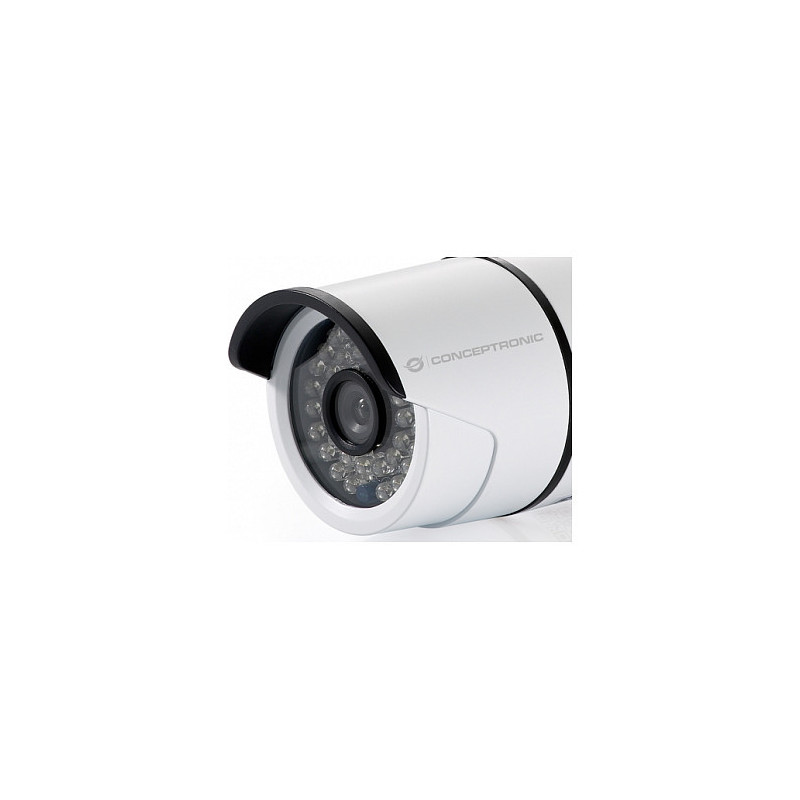

With a rugged weatherproof case rated at IP66, this 2-megapixel wireless network camera provides outstanding security for both indoor and outdoor use. Connect the IP camera to a wireless network to access live images via the cloud from anywhere in the world via a PC, notebook or mobile device. Infrared LEDs offer premium night viewing of up to 20 metres, along with a high resolution lens providing crystal clear images at a viewing angle of 65 degrees. Motion detection features trigger an alarm or email alerts to the user, providing exceptional levels of security for the home or office.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired & Wireless
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Remote viewing
Antenna type: External
Antennas quantity: 1
Certification: CE

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP66
Feature: Weatherproof
Country of origin: China

Camera

Angle of rotation: 65°

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Fixed focal length: 6 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR
Number of illumination LEDs: 36

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.264
Supported graphics resolutions: 320 x 180, 640 x 360, 1920 x 1080 (HD 1080)
Frame rate: 30 fps

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, DHCP, FTP, SMTP, NTP, UPNP, HTTP, UDP/IP, DDNS, P2P
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max): 150 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Security algorithms: WEP, WPA, WPA2, WPS

Management features

Feature: Reset button

Power

Power source type: DC
Power consumption (typical): 7 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 3 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows XP
Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina

Weight & dimensions

Width: 67.5 mm
Depth: 67.5 mm
Height: 180 mm
Diameter: 38 cm

Packaging data

Package width: 148 mm
Package depth: 100 mm
Package height: 225 mm
Package weight: 740 g
Package type: Box

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Mounting brackets included
Feature: AC adapter included
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85258900
