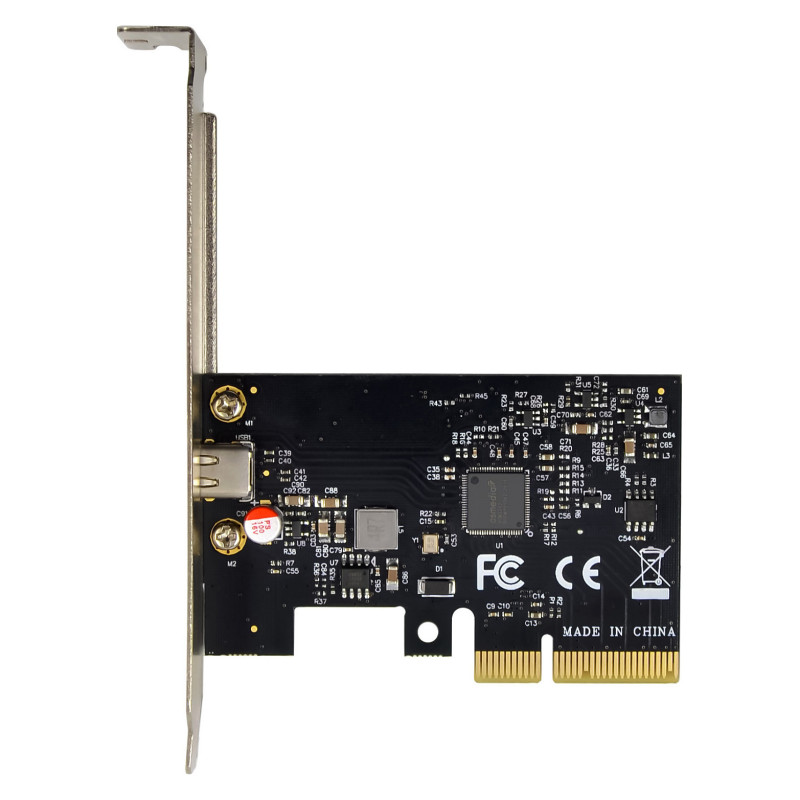

Conceptronic EMRICK14B sąsajos plokštės / adapteris

Conceptronic EMRICK14B 1-Port USB 3.2 Gen 2x2 Type-C PCIe Card. Host interface: PCIe, Output interface: USB 3.2 Gen 2x2 Type-C, Expansion card standard: PCI 3.0. Country of origin: China. Chipset: ASM3242, Data transfer rate (max): 20 Gbit/s. Windows operating systems supported: Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave,.... Width: 79 mm, Depth: 51 mm, Height: 30 mm

This PCIe card lets you easily add an ultra-fast USB 3.2 Gen 2x2 Type-C port to your desktop computer. With a maximum data transfer rate of 20Gb/s, it enables quick and efficient transfers of large files and documents. Transform your desktop with cutting-edge USB 3.2 Gen 2x2 technology for faster and more efficient data management.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 2x2 Type-C
Expansion card standard: PCI 3.0

Design

Feature: Hot-swap
Country of origin: China

Features

Chipset: ASM3242
Data transfer rate (max): 20 Gbit/s
Feature: UASP support

Operational conditions

Operating temperature (T-T): 0 - 85 °C
Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Linux operating systems supported: Yes

Technical details

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 79 mm
Depth: 51 mm
Height: 30 mm
Weight: 32 g

Packaging data

Feature: Mounting brackets included
Feature: Quick installation guide
Package width: 30 mm
Package depth: 130 mm
Package height: 140 mm
Package weight: 120 g
Package type: Box

Logistics data

Harmonized System (HS) code: 8471800000
Products per master (outer) case: 30 pc(s)
Master (outer) case width: 405 mm
Master (outer) case length: 340 mm
Master (outer) case height: 205 mm
Master (outer) case gross weight: 3.6 kg
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 163 cm
Master (outer) cases per pallet: 36 pc(s)
