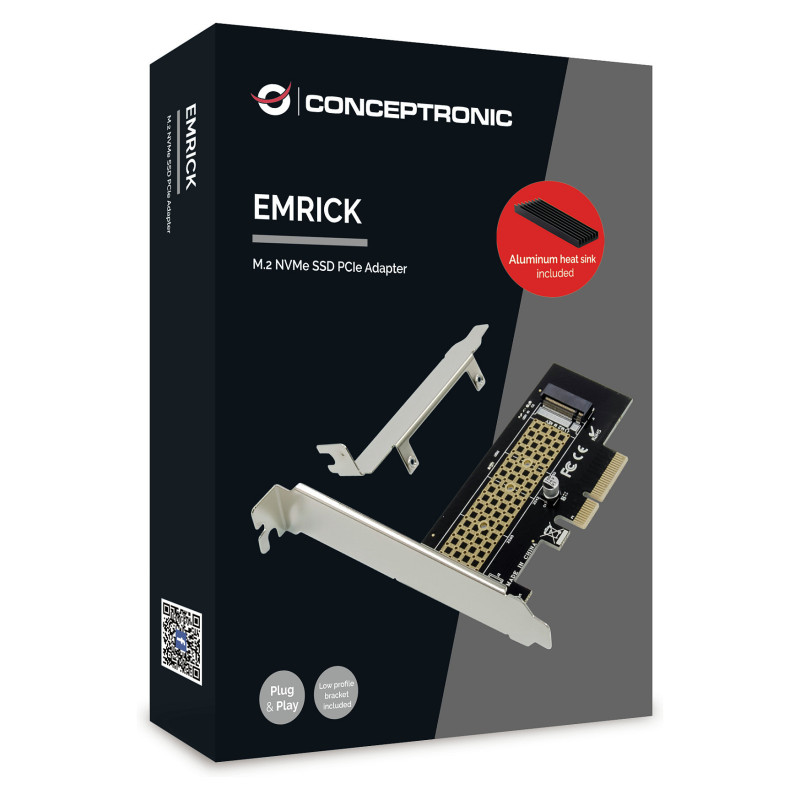

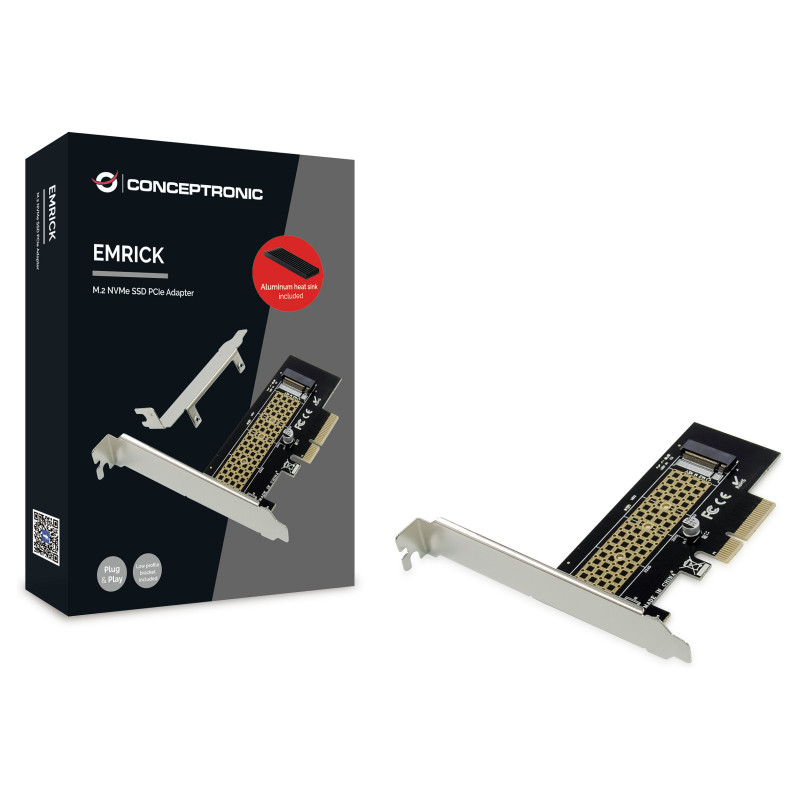

Conceptronic EMRICK05BS sąsajos plokštės / adapteris

Conceptronic EMRICK M.2 NVMe SSD PCIe Adapter. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 3.0. Country of origin: China. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 40 mm, Depth: 102 mm, Height: 18 mm. Package width: 132 mm, Package depth: 156 mm, Package height: 26 mm

This M.2 NVMe SSD PCIe Adapter connects directly to the motherboard, and features ultra-fast PCIe 3.0 X4 lanes which transmit bandwidth up to 32GT/S. It also supports the majority of M.2 key M SSD drive sizes. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 3.0
Number of M.2 (M) slots: 1

Design

Feature: Internal
Country of origin: China

Features

Feature: Plug and Play

System requirements

Linux operating systems supported: Yes

Weight & dimensions

Width: 40 mm
Depth: 102 mm
Height: 18 mm
Weight: 42 g

Packaging data

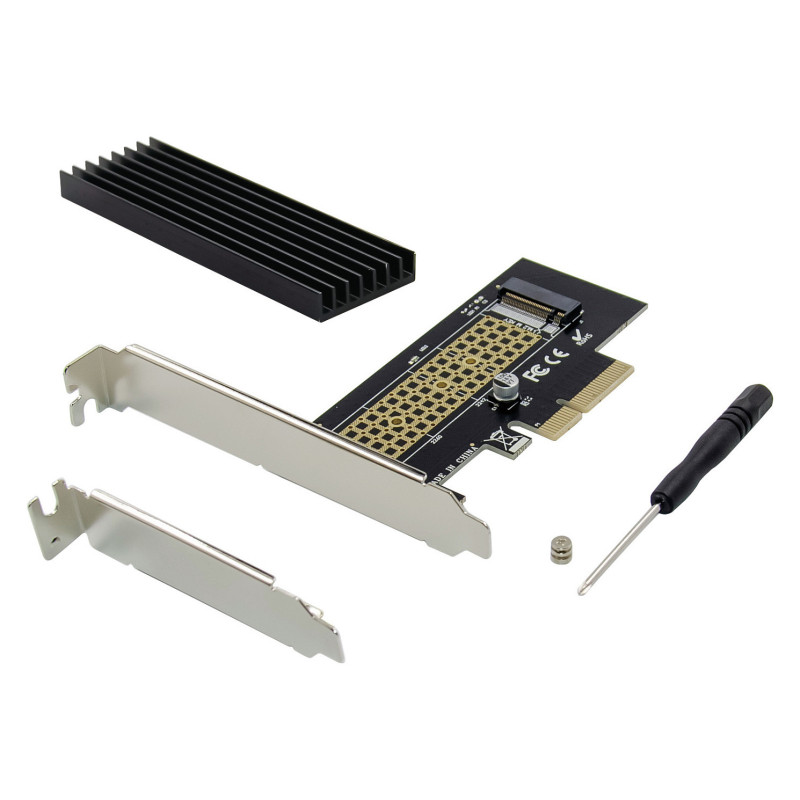

Feature: Mounting brackets included
Feature: Screws included
Feature: Quick installation guide
Package width: 132 mm
Package depth: 156 mm
Package height: 26 mm
Package weight: 110 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 30 pc(s)
Master (outer) case width: 280 mm
Master (outer) case length: 180 mm
Master (outer) case height: 415 mm
Master (outer) case gross weight: 3.7 kg
