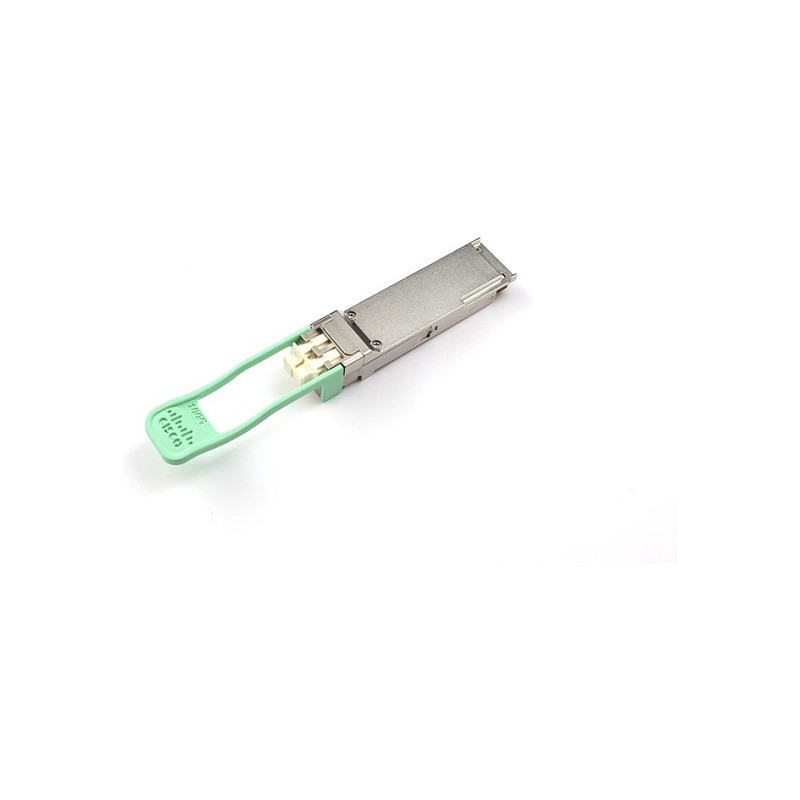

„Cisco QSFP-100G-FR-S“ tinklo siųstuvo-siųstuvo modulis

Cisco QSFP-100G-FR-S=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP. Product colour: Green. Power consumption (typical): 4.3 W. Warranty period: 5 year(s)

The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.

Cisco QSFP-100G-FR-S
The Cisco QSFP-100G-FR-S Module supports link lengths of up to 2 km over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. QSFP-100G-FR-S can also be used in applications meant for IEEE 100GBASE-DR, such as interoperability with IEEE 400GBASE-DR4 via fiber break-out cables.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 100000 Mbit/s
Interface type: QSFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
SFP transceiver standard: FR
Maximum transfer distance: 2000 m
Wavelength: 1310 nm
Tx power (min): -3.1 dBmW
Tx power (max): 4 dBmW
Rx power (min): -7.1 dBmW
Rx power (max): 4 dBmW
Ethernet interface type: 100 Gigabit Ethernet
Networking standards: IEEE 802.3ba, IEEE 802.3bm
Fiber ethernet cabling technology: 400GBASE

Features

Product colour: Green
Feature: Hot-swap

Power

Power consumption (typical): 4.3 W

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C

Logistics data

Warranty period: 5 year(s)
