„Cisco GLC-SX-MMD“ tinklo siųstuvo-siųstuvo modulis

Cisco 1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=). SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Power consumption (typical): 1.5 W. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Quantity per pack: 1 pc(s). Package width: 143 mm, Package depth: 158.8 mm, Package height: 44.5 mm

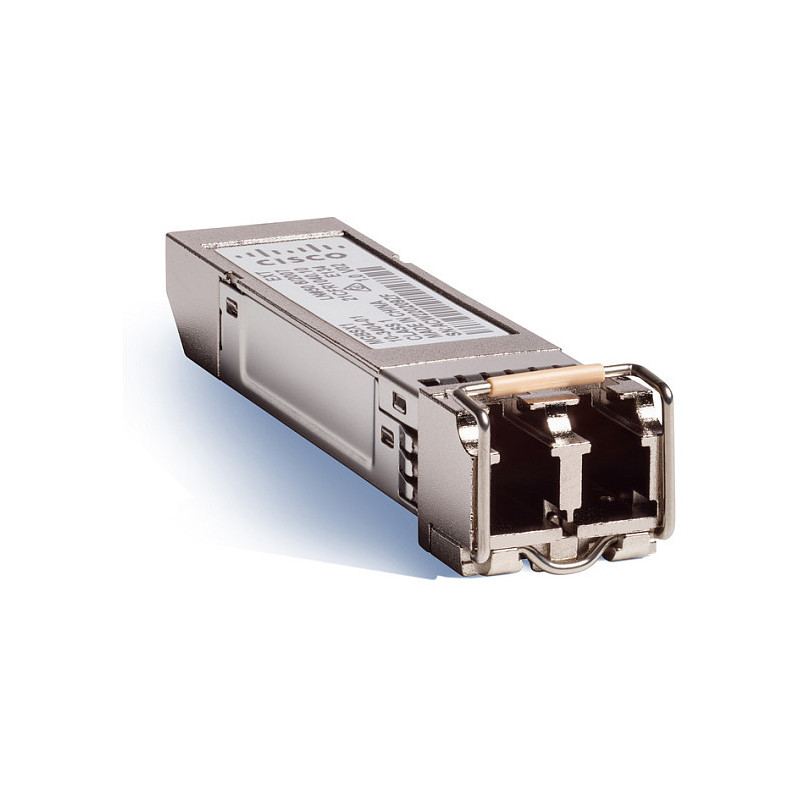

The Cisco 1000BASE-SX SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
SFP transceiver standard: SX
Maximum transfer distance: 10000 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z
Fiber ports quantity: 2

Features

Feature: Hot-swap

Power

Power consumption (typical): 1.5 W

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions

Width: 13.4 mm
Depth: 56.5 mm
Height: 8.5 mm
Weight: 75 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 143 mm
Package depth: 158.8 mm
Package height: 44.5 mm
Package weight: 90.7 g

Logistics data

Harmonized System (HS) code: 85369010
Country of origin: China
