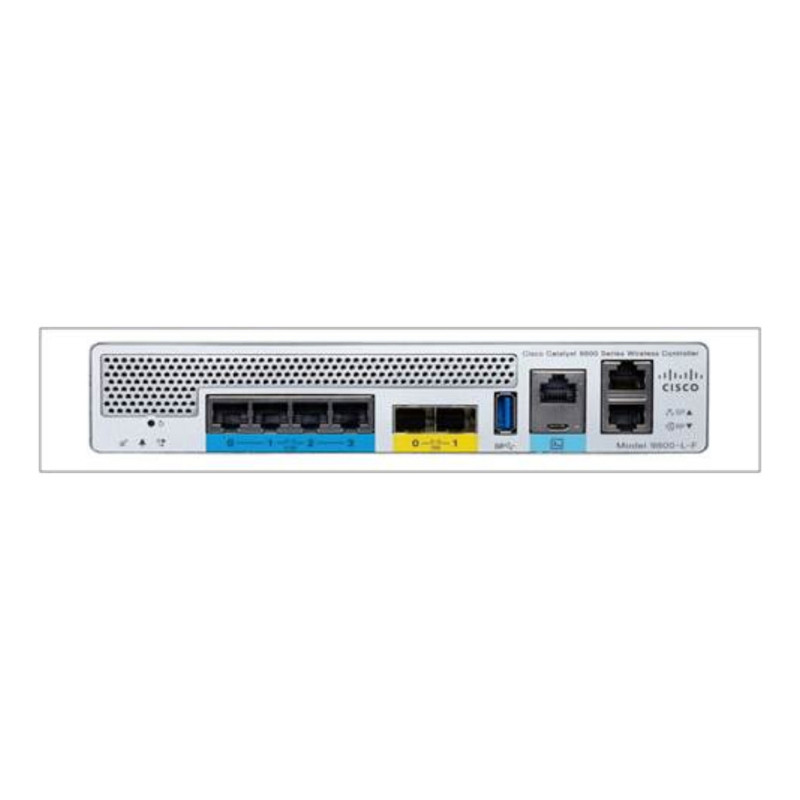

„Cisco Catalyst 9800-LF“ šliuzas / valdiklis

Cisco Catalyst 9800-L-F. Product colour: Grey. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE.... Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2. Console port: RJ-45. Width: 215.9 mm, Depth: 230.1 mm, Height: 40.2 mm

The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.

Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.

The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.

Design

Product colour: Grey
LED indicators: Yes

Network

Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Feature: Wi-Fi

Security

Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2
Feature: VLAN support

Ports & interfaces

Console port: RJ-45
Ethernet LAN (RJ-45) ports: 6
Fixed SFP ports quantity: 2

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Syslog

Weight & dimensions

Width: 215.9 mm
Depth: 230.1 mm
Height: 40.2 mm
Weight: 1.82 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Certificates

Safety: UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1
Certification: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3

Logistics data

Harmonized System (HS) code: 85176990
