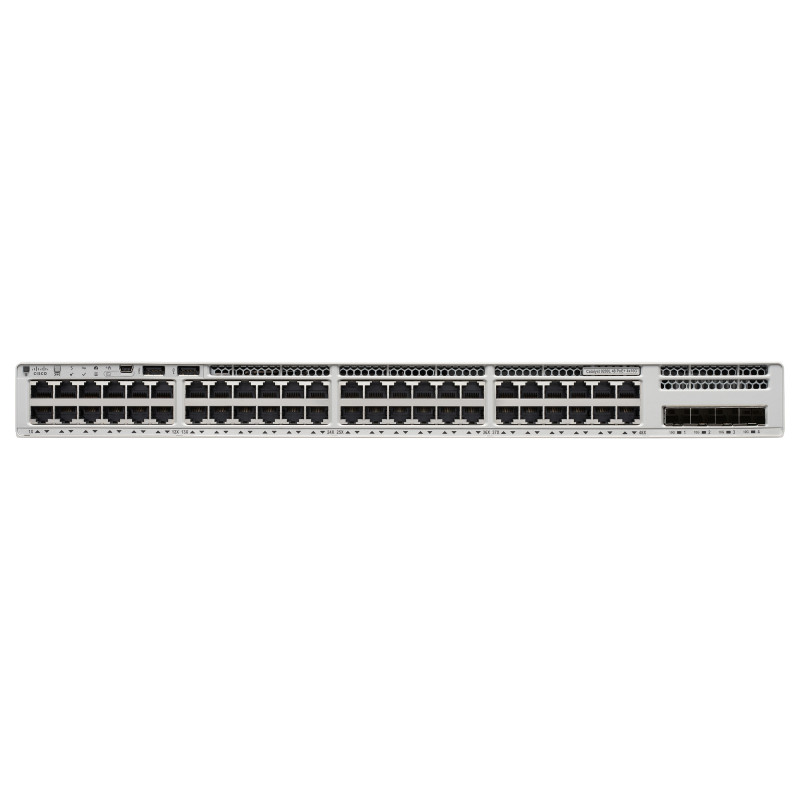

Cisco Katalizatorius 9200L

Cisco Catalyst 9200L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 3. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE)

Extend Intent-Based Networking Everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
USB 2.0 ports quantity: 3

Network

Feature: 10G support
Copper ethernet cabling technology: 100BASE-FX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Feature: IP routing
Routing entries: 3000
Feature: Spanning tree protocol
Network virtualization technologies: Virtual Extensible LAN (VXLAN)
IPv4 routes: 3000
IPv6 routes: 1500
Number of VLANs: 1024

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 130.95 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 9198
Packet buffer memory: 6 MB

Security

Feature: Access Control List (ACL)
Security algorithms: 128-bit AES

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1/v2c/v3
Routing protocols: CDP, EIGRP, OSPF, RIP, VRRP

Design

Feature: Stackable
Product colour: Grey
Safety: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment

Performance

Memory type: DRAM
Internal memory: 2048 MB
Flash memory: 4096 MB
Noise level: 42 dB
Feature: Plug and Play
Mean time between failures (MTBF): 346270 h

Power

Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 6 - 12 A

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 48
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 740 W

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 3412 BTU/h

Weight & dimensions

Width: 445 mm
Depth: 329 mm
Height: 44 mm
Weight: 4.8 kg

Certificates

Certification: RoHS

Logistics data

Harmonized System (HS) code: 85176990
