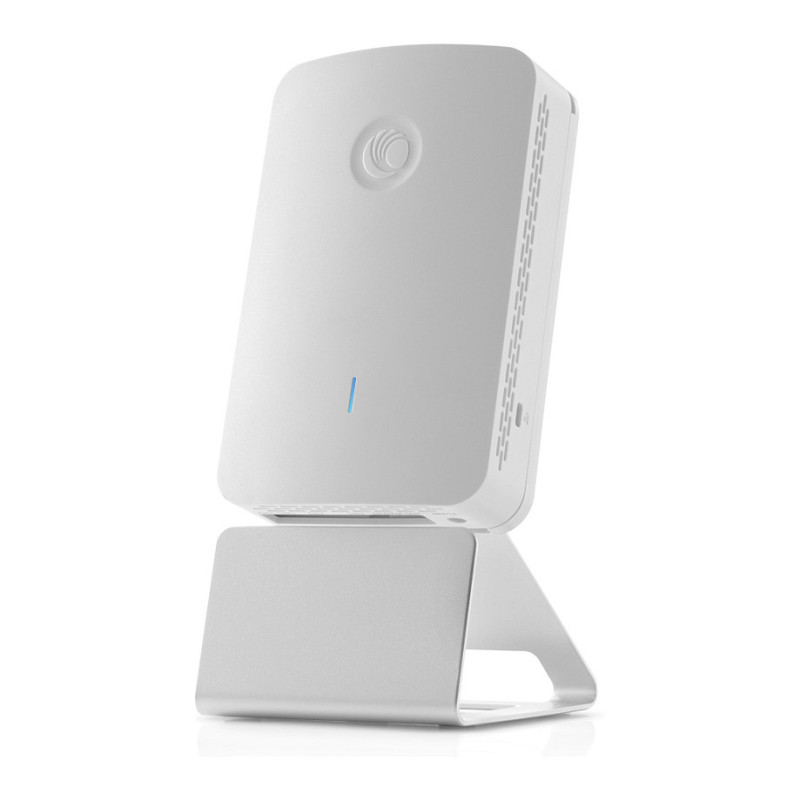

Cambium Networks cnPilot e430H

Cambium Networks cnPilot e430H. 2.4 GHz, 5 GHz. Security algorithms: 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 25 W

The cnPilot™ e430 Enterprise class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs).

Features

Feature: 2.4 GHz
Feature: 5 GHz
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Cabling technology: 10/100/1000Base-T(X)
Feature: Bluetooth
Bluetooth version: 4.0
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Feature: Quality of Service (QoS) support

Security

Security algorithms: 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WDS, WPA-TKIP, WPA2, WPA2-AES
Feature: MAC address filtering
Feature: IGMP snooping
Feature: Auto Wireless Distribution System (WDS)

Protocols

Feature: DHCP server
Management protocols: SNMP v1, v2c, v3

Management features

Feature: Command-line interface (CLI)
Feature: Syslog

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
Power consumption (typical): 9 W
Power consumption (max): 25 W

Design

Placement: Table, Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 4.9 dBi

Certificates

Certification: FCC, CE, IC, UL, WEEE, RoHS

Weight & dimensions

Width: 94 mm
Depth: 34 mm
Height: 147 mm
Weight: 390 g

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): 5 - 95 °C

Logistics data

Harmonized System (HS) code: 85176990
