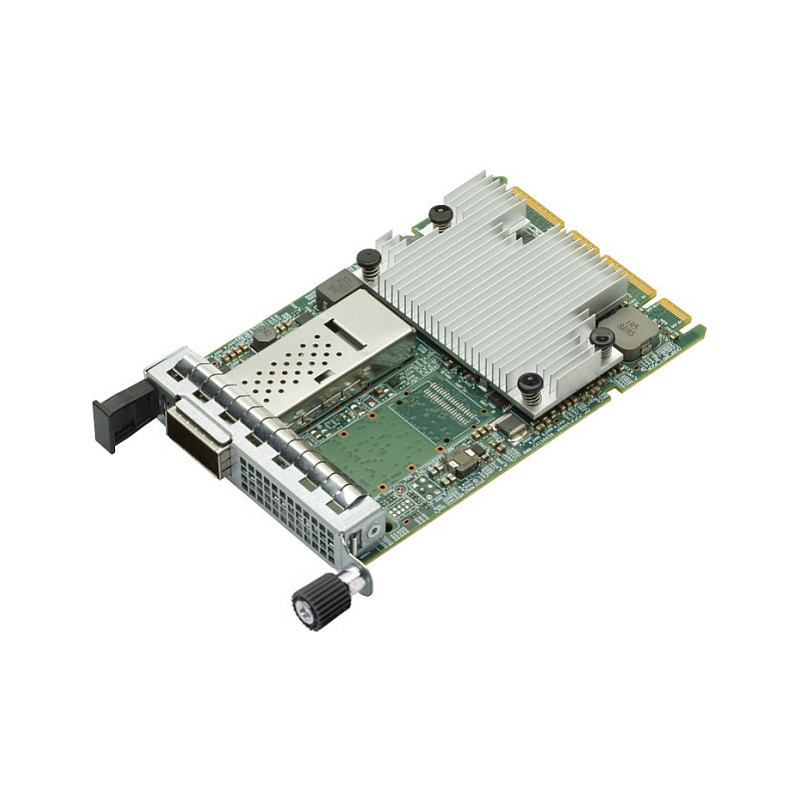

„Broadcom BCM957504-N1100G“ sąsajos plokštės / adapteris

Broadcom BCM957504-N1100G. Host interface: PCIe, Output interface: QSFP56, Host interface gender: Male. Product colour: Green, Silver, Cooling type: Passive, LED indicators: Activity, Link. Package weight: 90 g

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series N1100G 1x100G OCP 3.0 adapter is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.

The N1100G 1x100G OCP 3.0 adapter builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency.

Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and

NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

With its market-leading hardware acceleration technologies, the NetXtreme-E Series N1100G 1x100G OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Ports & interfaces

Host interface: PCIe
Host interface gender: Male
Output interface: QSFP56
Expansion card standard: PCIe 3.0

Design

Feature: Internal
Product colour: Green, Silver
Cooling type: Passive
LED indicators: Activity, Link

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C

Technical details

Doesn't contain: Halogen

Packaging data

Package weight: 90 g
