„Axis P1245 Mk II“

Axis P1245 Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Covert. Minimum illumination: 0.2 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 61°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm, Closest focusing distance: 0.2 m

AXIS P1245 Mk II Modular Standard Camera

Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that's easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.

Compact and discreet

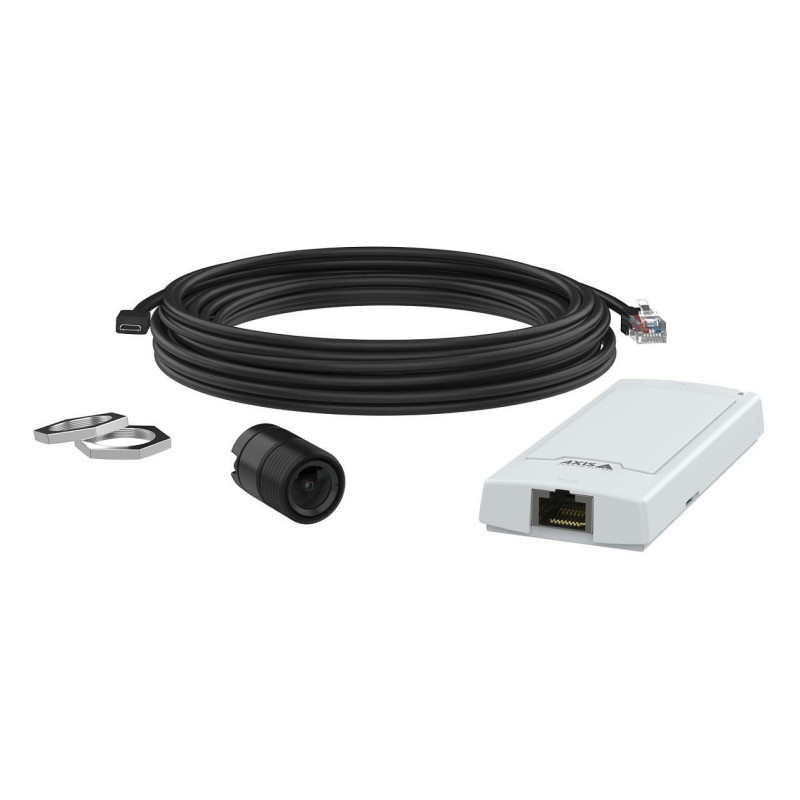

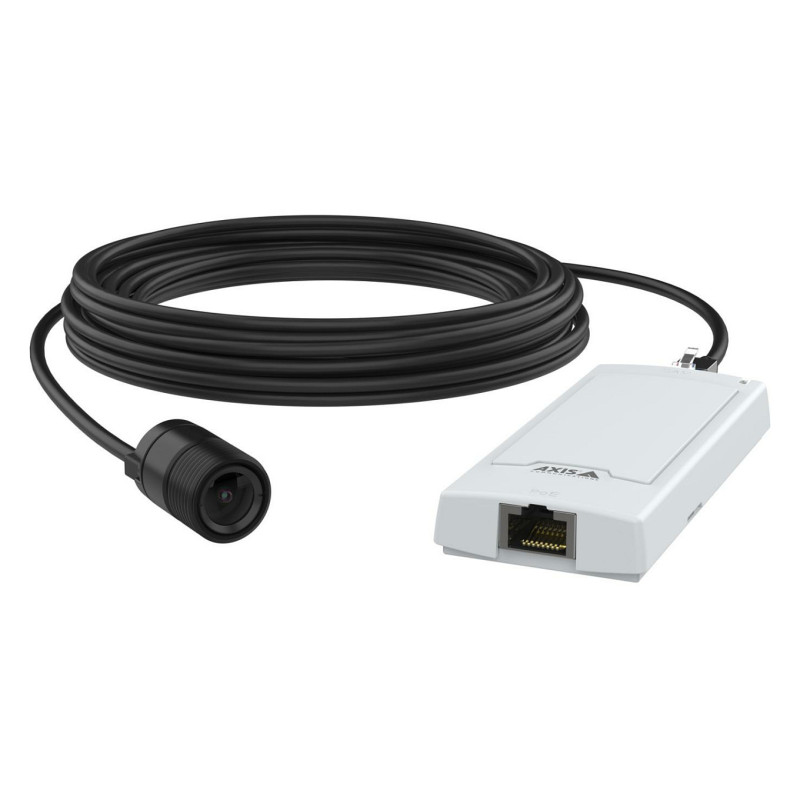

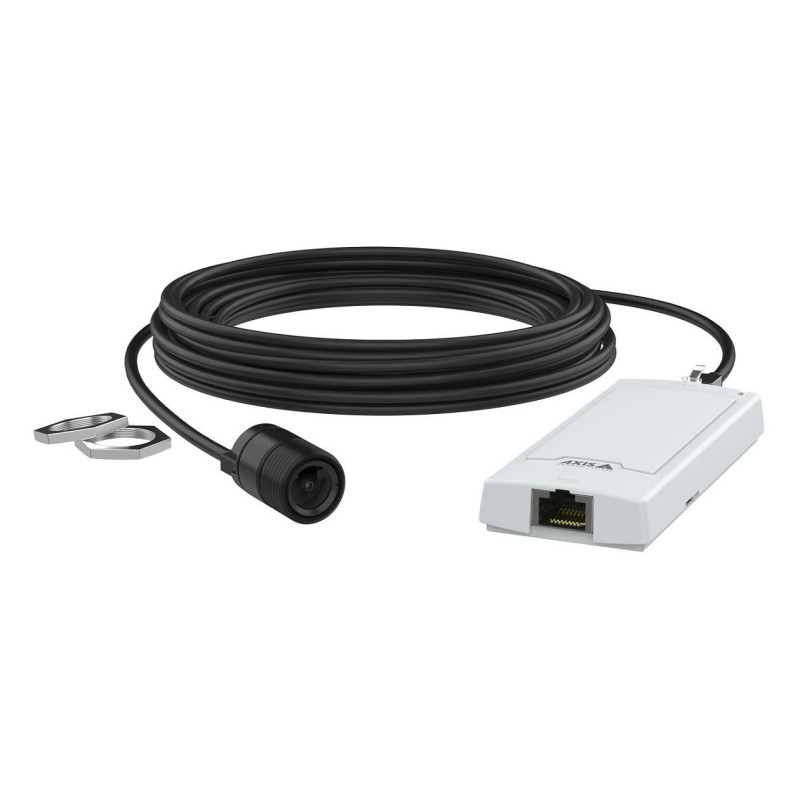

With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.

Highly flexible

Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won't fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it's easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade

Great image quality and support for advanced analytics

AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there's both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)

Design

Form factor: Covert
Mounting type: Ceiling
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic, Steel
International Protection (IP) code: IPX3

Camera

Minimum illumination: 0.2 lx
Lens viewing angle, horizontal: 111°
Lens viewing angle, vertical: 61°
Camera shutter speed: 1/6500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2
Fixed focal length: 2.8 mm
Closest focusing distance: 0.2 m

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: AVC, H.264, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Privacy masking
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Video motion detection
Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Vehicle detection
Feature: Pixel counter
Feature: Human and vehicle targets classification

Management features

Behavior analysis: Line crossing detection, Scene change detection

Power

Power source type: PoE
Power consumption (typical): 3.4 W
Power consumption (max): 4.1 W

Operational conditions

Operating temperature (T-T): -20 - 45 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Weight: 75 g

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Feature: Manual

Other features

Doesn't contain: PVC
