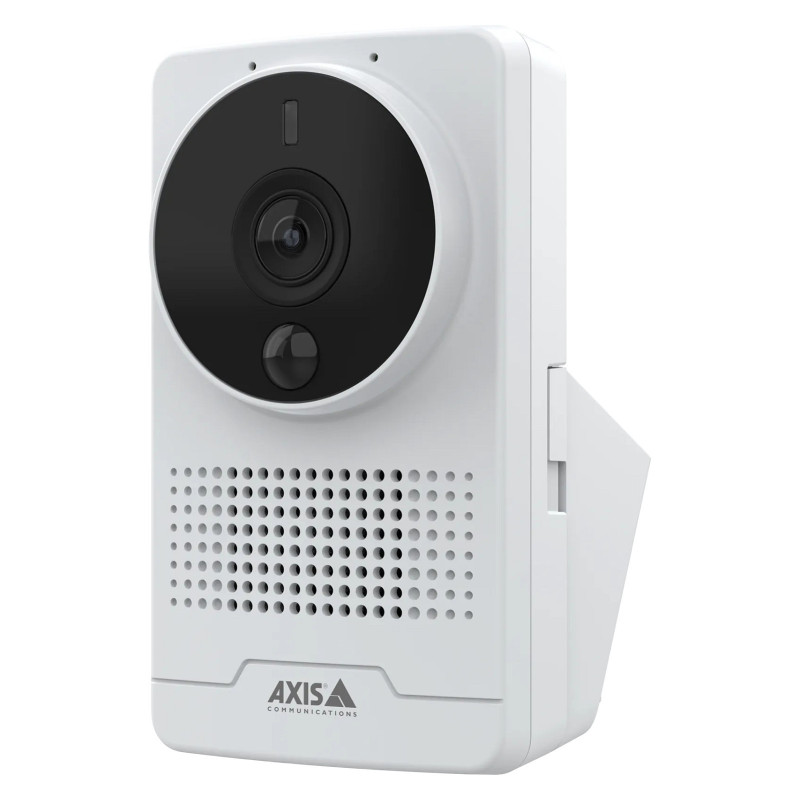

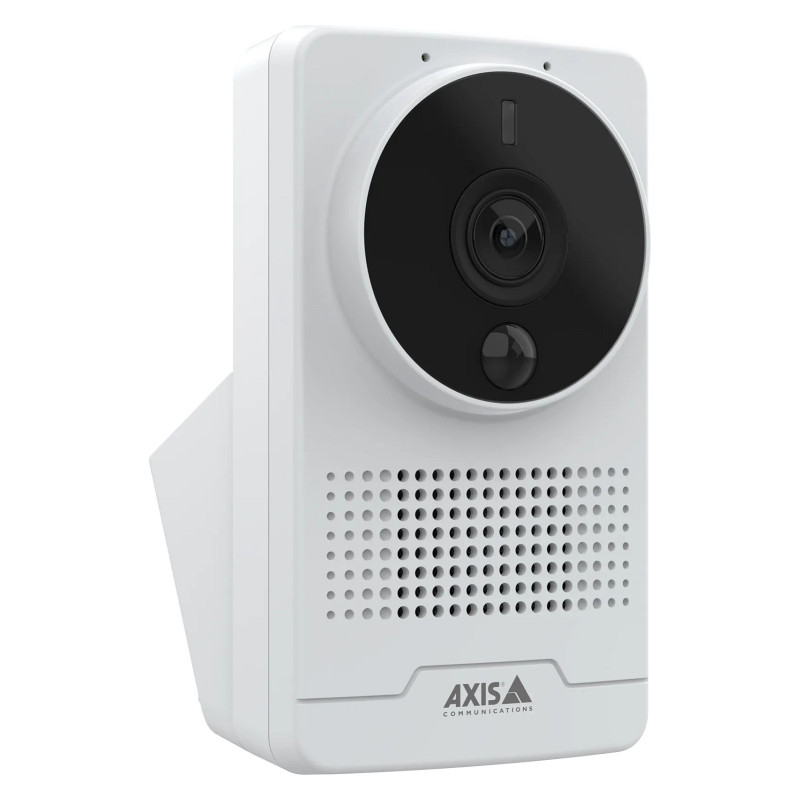

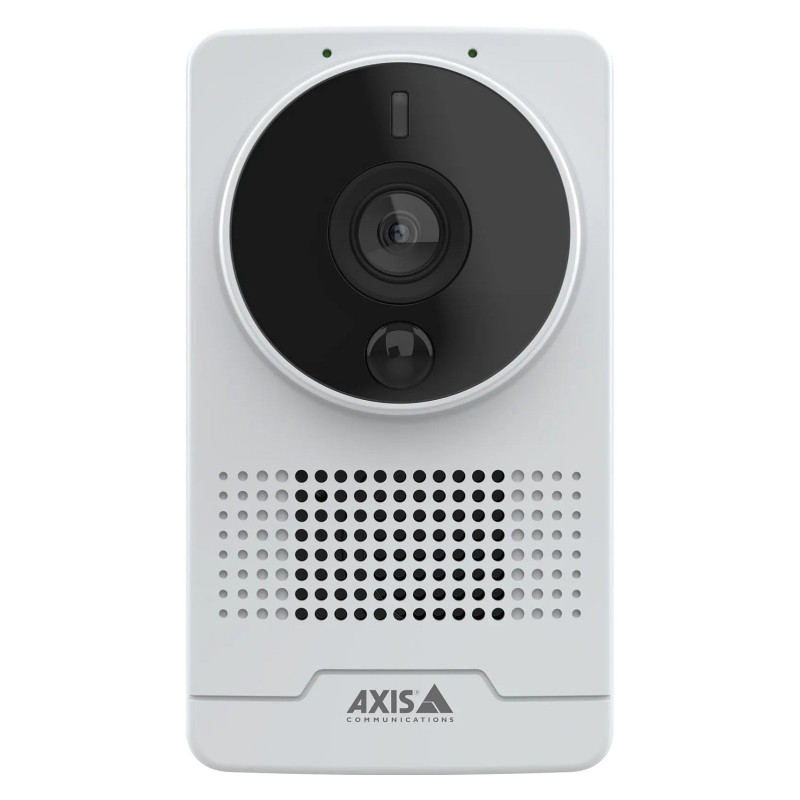

„Axis M1075-L Mk II“

Axis M1075-L Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.18 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 42 m, Observe distance: 16 m, Recognize distance: 8 m

Ideal for residential care and small stores, this compact, easy-to-install camera offers two-way audio and great image quality - around the clock. AI-powered, it supports advanced features and powerful video and audio analytics on the edge.

Ensure privacy and security
This fully featured camera is designed with privacy and security in mind. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. A tally LED indicates video streaming or recording. And, with AXIS Live Privacy Shield, it's easy to remotely monitor activities while protecting privacy. Furthermore, AXIS TM1903 Privacy Cover is available as an accessory to temporarily protect privacy when needed. Plus, a built-in pencil privacy filter ensures discreet images that safeguard privacy.

AI-powered analytics
AXIS M1075-L Mk II includes a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. With AXIS Object Analytics preinstalled, it can detect, track, and count humans. It also includes AXIS Audio Analytics, which detects sounds such as breaking glass, screams, shouts, speech, and coughing fits, and provides instant alerts when these events occur. In addition, generated metadata can be gathered and visualized in a dashboard for valuable insights.

Extended possibilities
This compact camera supports PoE and includes a USB and I/O port for optional Wi-Fi-dongle connectivity. The I/O port also allows you to connect external devices, such as a panic button - ideal in elderly care facilities and small stores. It can be mounted in corners for complete coverage with a 103° field of view and features a built-in speaker and dual microphones. Plus, voice enhancer ensures great two-way audio communication. With an IR-corrected lens, it offers professional-quality video both day and night. What's more, a passive infrared (PIR) sensor can detect movement in total darkness. And an HDMI port lets you display live video on a public viewing monitor.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: People counting function
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Processor model: Ambarella CV25
Feature: Built-in processor
Dynamic range: 120 dB

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Yes
Housing material: Aluminium, Plastic
International Protection (IP) code: IP40

Camera

Minimum illumination: 0.18 lx
Lens viewing angle, horizontal: 103°
Lens viewing angle, vertical: 55°
Camera pixel size: 2.8 µm
Camera shutter speed: 1/19000 - 1/5 s

Image sensor

Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Detect distance: 42 m
Observe distance: 16 m
Recognize distance: 8 m
Maximum aperture number: 2
Identify distance: 4 m
Fixed focal length: 3.16 mm

Night vision

Feature: Night vision
Night vision distance: 18 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264H, H.264M, H.265
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Saturation, Contrast, Brightness, Sharpness, White balance

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio formats supported: AAC-LC, LPCM, G.711, PCM, ADPCM, OPUS
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at
Feature: Bluetooth
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Flash memory: 1024 MB
RAM capacity: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Feature: Terminal block port

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Video motion detection
Feature: Active tampering alarm
Feature: HTTPS encryption
Feature: Network access storage (NAS)

Management features

Feature: Cloud-managed

Power

Power source type: PoE
Power consumption (typical): 5.4 W
Power consumption (max): 12.95 W

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 60 mm
Depth: 93 mm
Height: 105 mm
Weight: 153 g

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
