„Axis 02814-001“ apsaugos kamera

Axis 02814-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

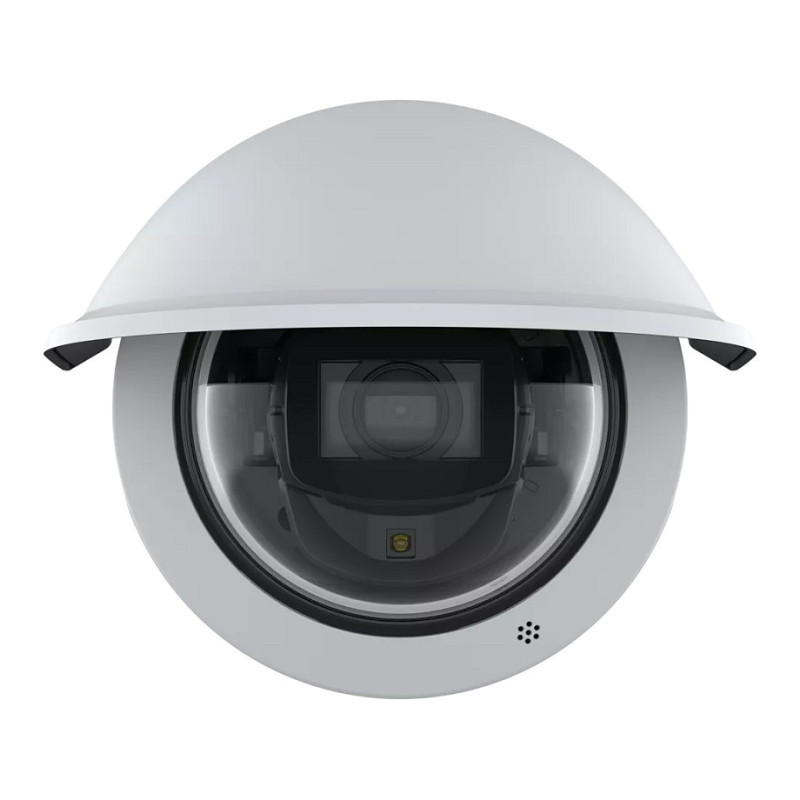

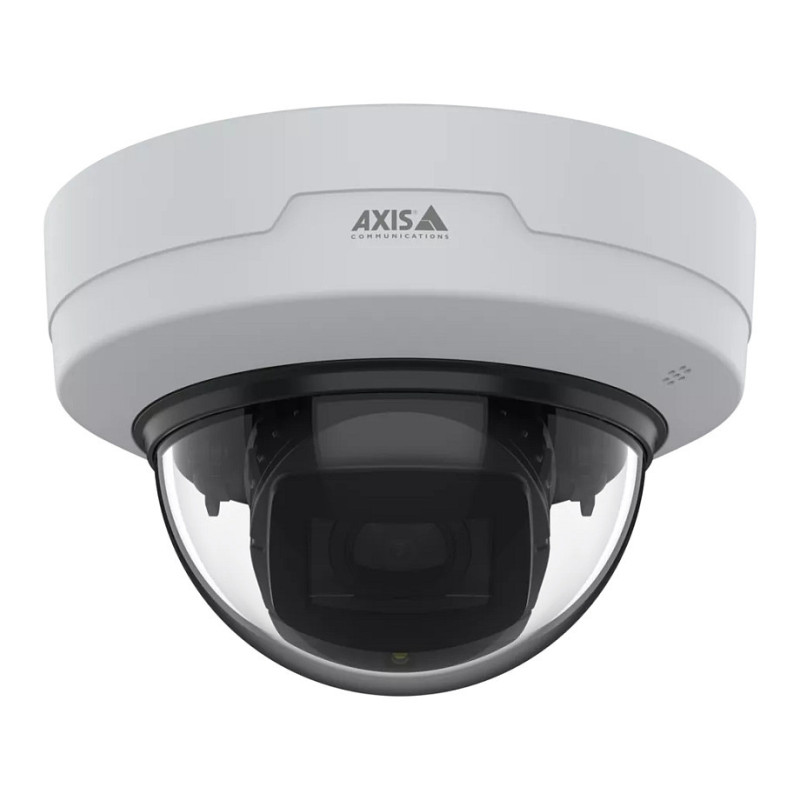

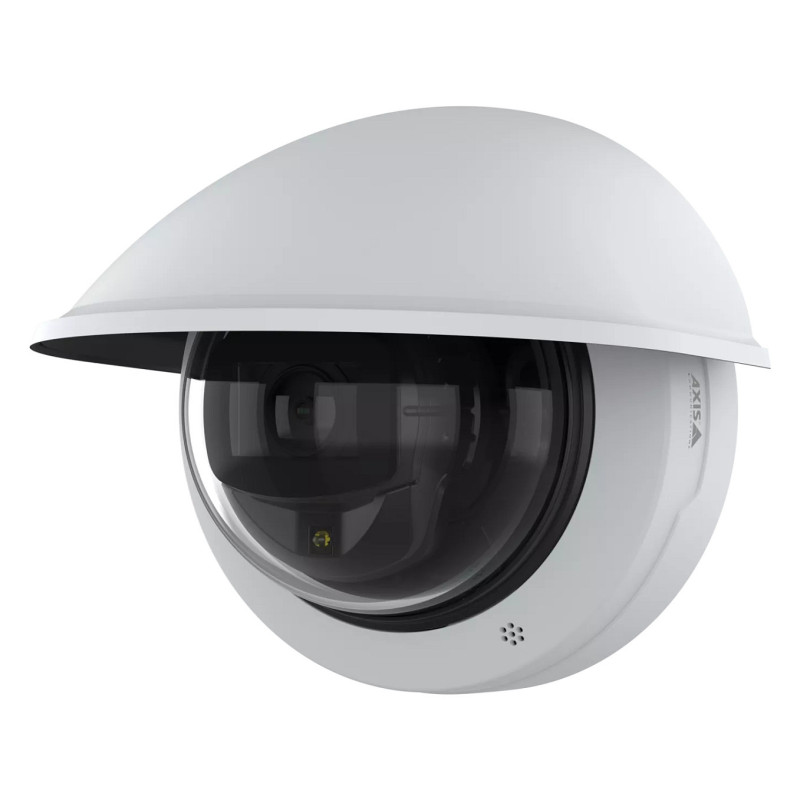

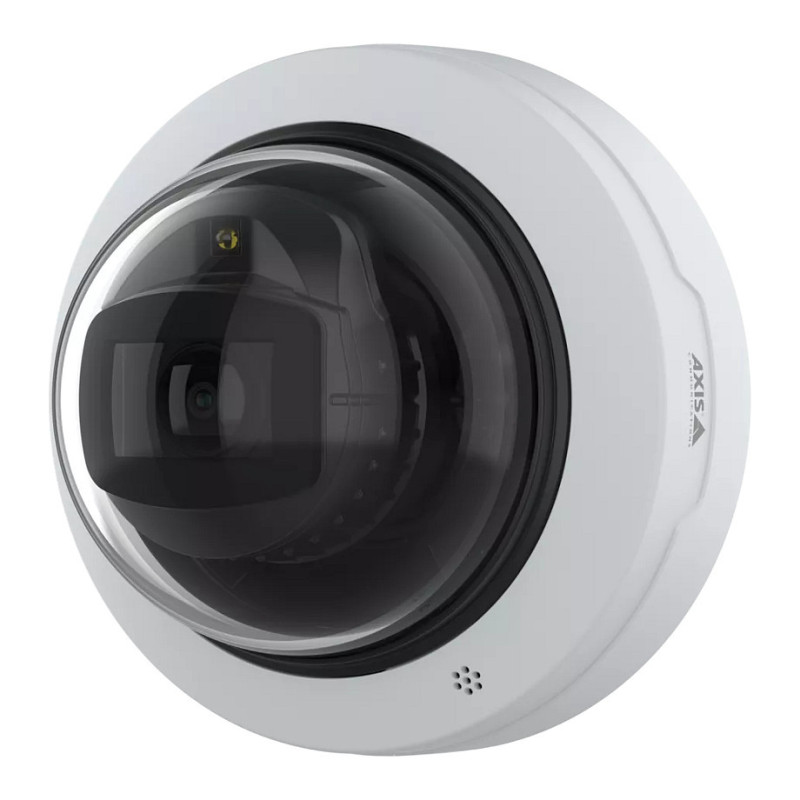

AXIS M4225-LVE Dome Camera

This compact, varifocal dome camera offers great images in 2 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.

Great images, every time

AXIS M4225-LVE delivers great image quality in 2 MP. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Powerful with strong security

Featuring a deep learning processing unit (DLPU), AXIS M4225-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it's out-of-the-box-ready for AXIS Audio Analytics which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.

Small and discreet

This compact and discreet dome camera blends in with any environment. There's also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Auto-tracking
Feature: Tour recording
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Wall
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.03 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 100°
Lens viewing angle, vertical: 52°
Tilt angle range: -10 - 65°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/20000 - 1.5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 3.2 - 7.2 mm
Feature: Auto focus
Maximum aperture number: 2.7
Minimum aperture number: 2.9
Detect distance (wide): 43.7 m
Detect distance (tele): 101.8 m
Observe distance (wide): 17.4 m
Observe distance (tele): 40.4 m
Recognize distance (wide): 8.8 m
Recognize distance (tele): 20.4 m
Identify distance (wide): 4.4 m
Identify distance (tele): 10.2 m
Closest focusing distance: 1 m

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 240, 640 x 360, 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)

Audio

Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Streaming method: Multicast

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 1000 MB

Security

Security algorithms: EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Abandoned object, Line crossing detection, Moving object
Feature: Human and vehicle targets classification

Management features

Feature: Cloud-managed

Power

Power source type: PoE
Power consumption (typical): 2.7 W
Power consumption (max): 10.5 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 140 mm
Depth: 112 mm
Height: 126 mm
Weight: 540 g

Sustainability

Compliance certificates: BSMI, CE, EAC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL

Packaging content

Number of cameras: 1
Feature: Sun shield included
Feature: Manual

Other features

Doesn't contain: Brominated Flame Retardant (BFR), CFR, PVC
