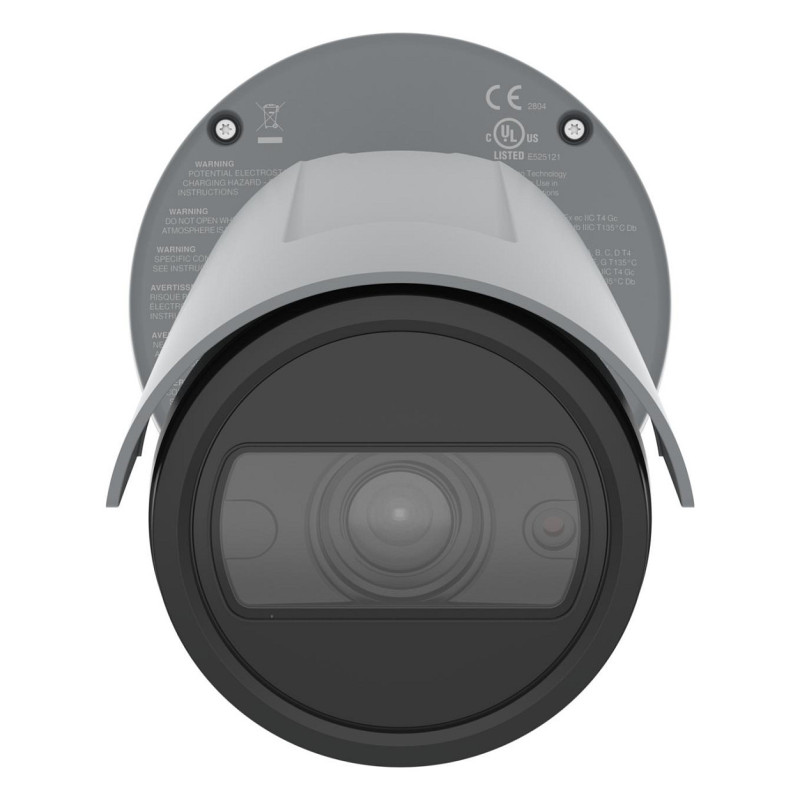

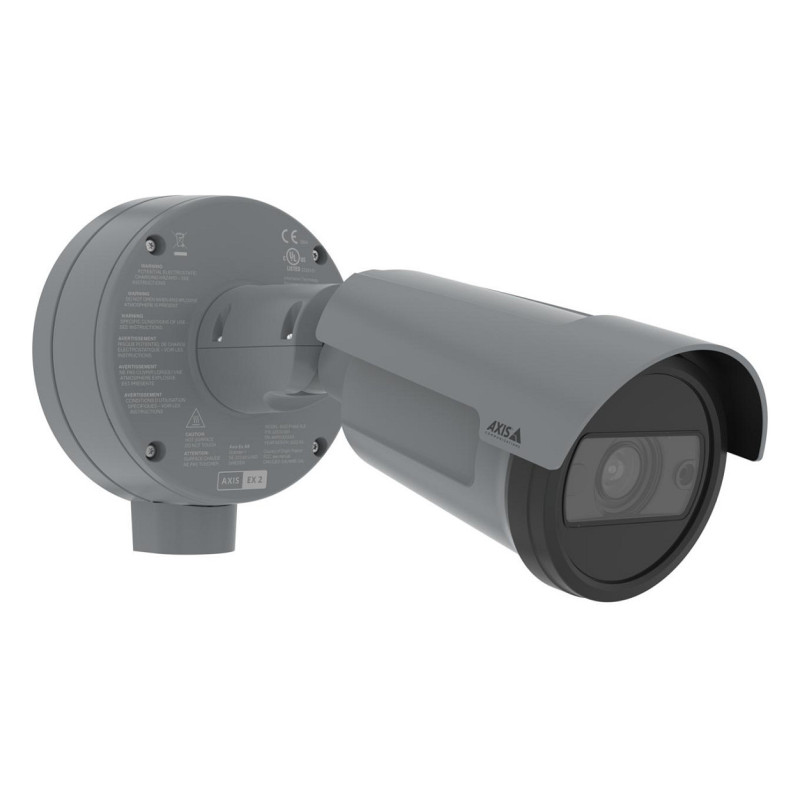

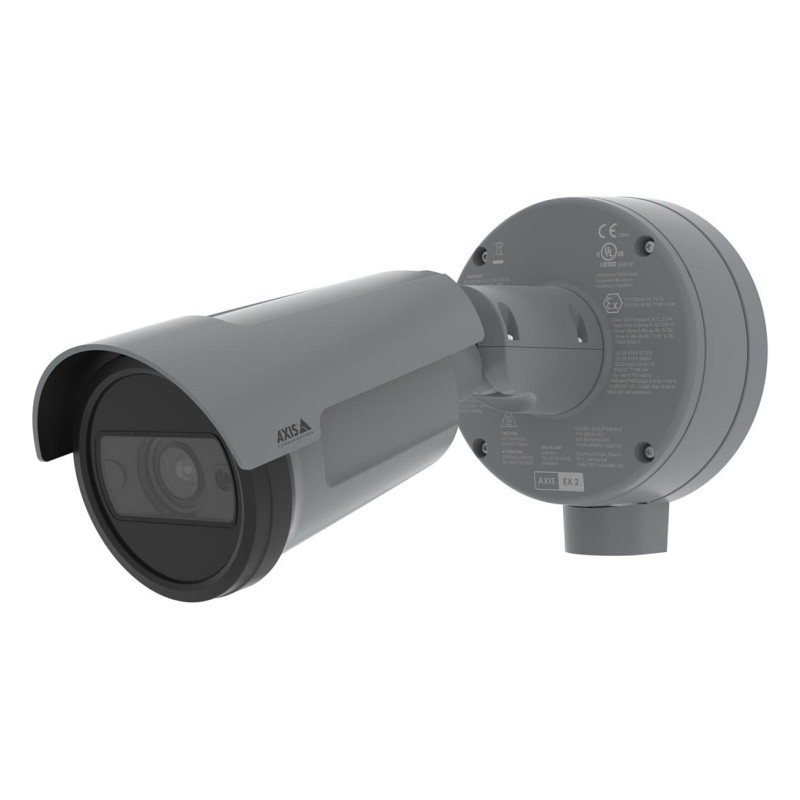

Axis 02534-001 apsaugos kamera

Axis 02534-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Grey, Form factor: Bullet. Minimum illumination: 0.07 lx, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2.08x, Focal length range: 6.2-12.9

This sturdy 4K camera is the world's first explosion-protected camera designed for Zone/Division 2. Ideal for health and safety applications as well as operational efficiency, it supports deep-learning based analytics that run on the edge.

A camera that's fit for its purpose
Designed and certified for Zone and Division 2 hazardous locations (Zone 2,22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus), this multitasking camera provides many benefits within health and safety applications as well as operational efficiency. For instance, smoke alert analytics monitors for signs of smoke or fire in potentially combustible environments. In operational efficiency applications, it can help increase efficiency, maintain peak operability, and maximize uptime. For instance, you can gain deeper understanding and awareness by creating an advanced data-driven sensory network that integrates with existing sensors and systems.

Deep learning-based analytics run on the edge
Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics that run on the edge. For instance, by connecting the camera to the process control system and continuously monitoring a process, you can fine-tune the process in real-time to maximize throughput. Plus, you'll be able to extract and send metadata, which can be used for trend monitoring and predictive maintenance.

Excellent image quality day or night
AXIS P1468-XLE offers outstanding 4K resolution at up to 60 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. And, with a large 1/1.2" sensor it ensures great light sensitivity. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. Plus, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Secure and sturdy in hazardous areas
Compact and lightweight in design, this explosion-protected camera is easy to install. It offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, this sturdy, impact-resistant camera is IP66/67, NEMA 4X, and IK10-rated for protection against dust, rain, snow, and impacts. Plus, it can withstand winds up to 50 m/s.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 11
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Grey
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.07 lx
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 2.08x
Number of lenses: 1
Focal length range: 6.2-12.9

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 1280 x 720 (HD 720)
Feature: Video recording
Frame rate: 60 fps
Feature: Video intelligence analytic
Feature: Video streaming
Feature: Flip & mirror
Feature: Privacy masking
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)
Bit rate: Configurable bit rate

Audio

Audio system: 2-way
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Feature: Audio detection

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: 256-bit AES-XTS, EAP-TLS
Feature: HTTPS encryption
Alert notification type: E-mail
Feature: Pixel counter
Feature: Digest authentication

Power

Power source type: PoE
Power consumption (typical): 7.7 W
Power consumption (max): 12.95 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 280 mm
Diameter: 13.2 cm
Weight: 1.2 kg

Packaging content

Number of cameras: 1
Feature: Mounting brackets included
Feature: Drilling template included
Feature: Manual

Other features

Doesn't contain: BFR, PVC
