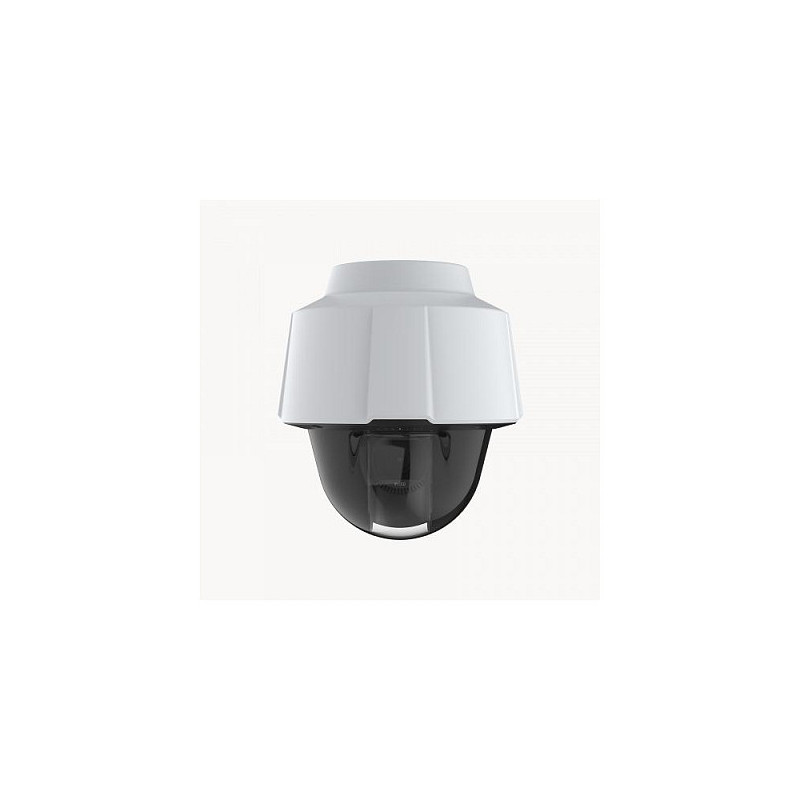

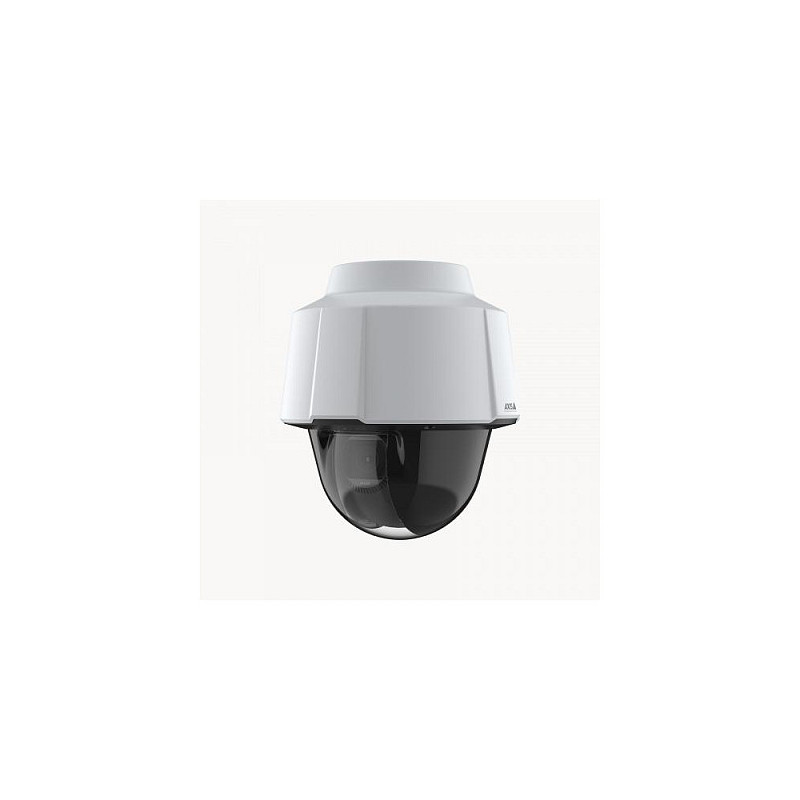

„Axis 02413-001“ apsaugos kamera

Axis 02413-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bulb. Minimum illumination: 0.1 lx, Field of view (FOV) angle: 57.1°, Lens viewing angle, horizontal: 57.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.5 - 135 mm

This high-performance PTZ camera offers 4 MP image quality with 30x optical zoom and IR. Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness. It offers support for analytics and includes AXIS Object Analytics to detect and classify people and vehicles. This cost-effective camera includes built-in cybersecurity features to safeguard your system and prevent unauthorized access. Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements. Furthermore, you can pop it into an AXIS Q6100-E using AXIS TP6901-E Adapter Bracket and enjoy 360° overview for total situational awareness.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Preset point
Feature: Auto-tracking
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Remote viewing
Processor model: ARTPEC-4
Feature: Built-in processor
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Form factor: Bulb
Mounting type: Wall
Product colour: White
Housing material: Plastic
International Protection (IP) code: IP66
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.1 lx
Field of view (FOV) angle: 57.1°
Lens viewing angle, horizontal: 57.1°
Lens viewing angle, vertical: 34.4°
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
Camera pixel size: 2.9 µm
Camera shutter type: Electronic
Camera shutter speed: 1/50000 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 30x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 4.5 - 135 mm

Night vision

Feature: Night vision
Night vision distance: 200 m
LED type: IR

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video compression formats: AVC, H.264, H.265, HEVC
Supported graphics resolutions: 2688 x 1512
Feature: Video recording
Frame rate: 60 fps
Feature: Video intelligence analytic
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Image stabilizer
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Sample rate: 48 kHz
Feature: Audio detection
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x
Feature: Quality of Service (QoS) support
Feature: Live view

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SDHC, SDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: 256-bit AES-XTS, FIPS 140-2
Alert notification type: E-mail, Text alert message
Feature: Pixel counter
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Remotely operated

Power

Power source type: DC, PoE
Power consumption (typical): 12 W
Power consumption (max): 30 W
DC output voltage: 10, 24, 28

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 242 mm
Diameter: 20.5 cm
Weight: 2.5 kg

Sustainability

Feature: Sustainability compliance
Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
