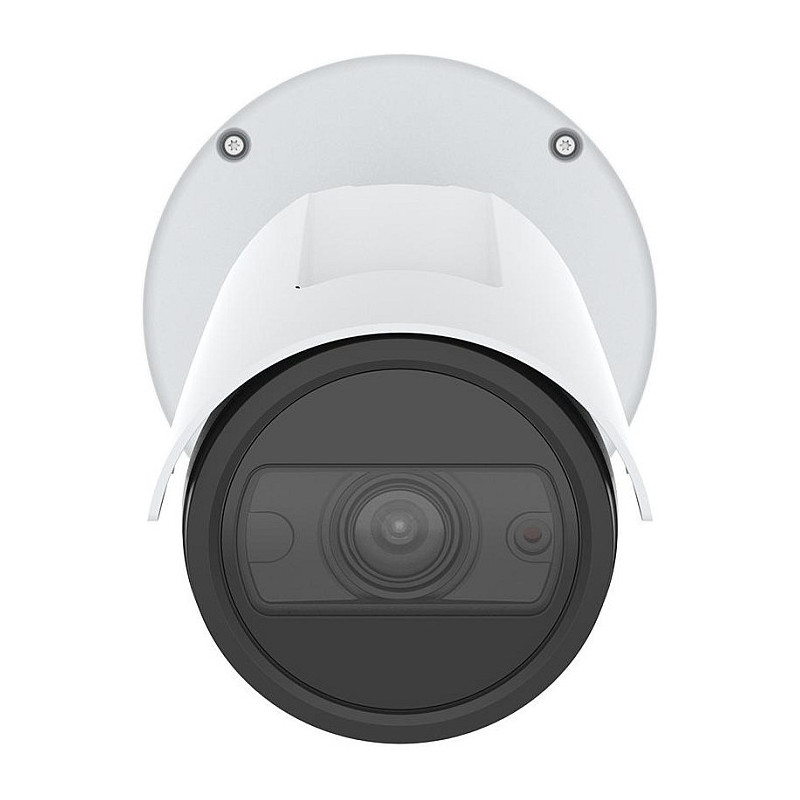

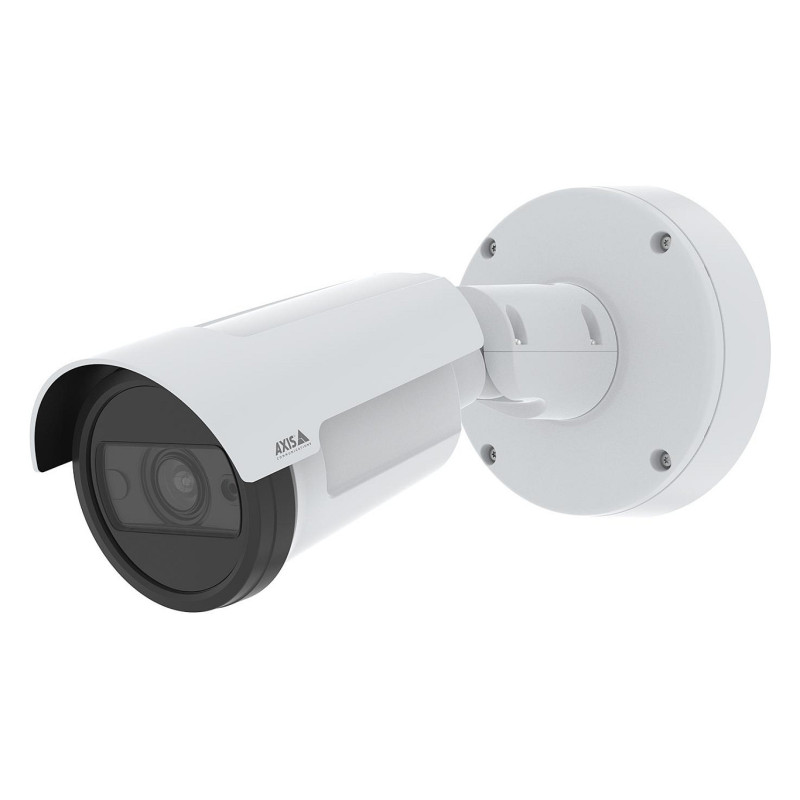

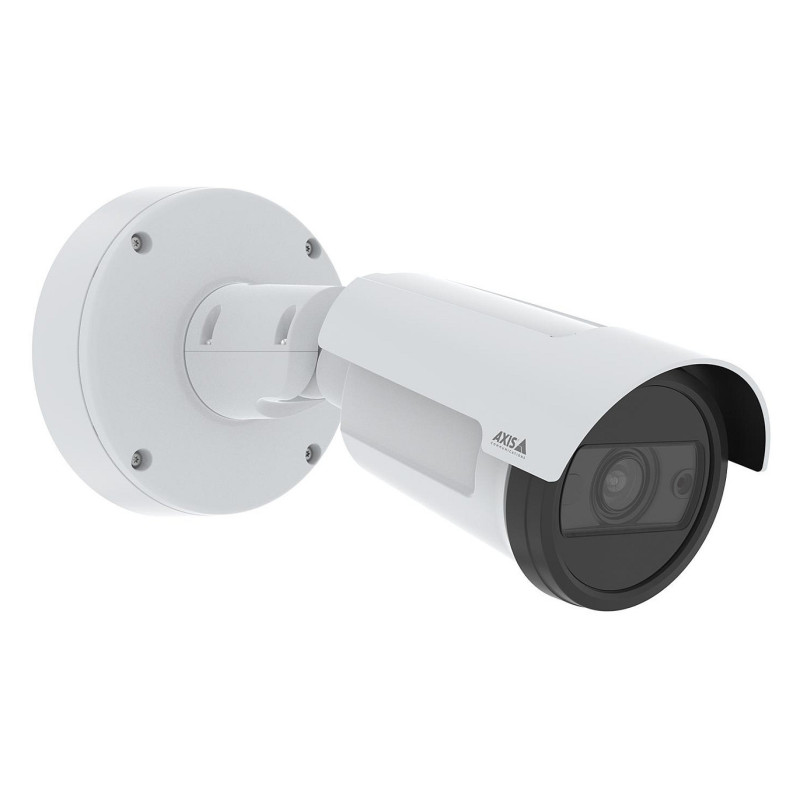

„Axis 02340-001“ apsaugos kamera

Axis 02340-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 117°, Lens viewing angle, vertical: 59°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Based on ARTPEC-8, AXIS P1465-LE delivers excellent image quality in 2 MP. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles. Available with a wide or tele lens, this IP66/IP67, NEMA 4X, and IK10-rated camera can withstand winds up to 50 m/s. Lightfinder 2.0, Forensic WDR, and OptimizedIR ensure sharp, detailed images under any light conditions. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Bullet
Mounting type: Wall/Pole
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
Protection features: Vandal proof
International Protection (IP) code: IP67
IK code: IK10
Feature: Fog proof

Camera

Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 117°
Lens viewing angle, vertical: 59°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/71500 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Feature: Zoom capability
Lens diameter: 2.9 cm
Feature: Auto focus
Closest focusing distance: 0.5 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: AVC, H.264, H.265, HEVC, MPEG4
Frame rate: 60 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Feature: Privacy masking

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack

Security

Security algorithms: EAP-TLS, HTTPS, TLS
Feature: HTTPS encryption

Power

Power source type: DC, PoE
Power consumption (typical): 7.2 W
Power consumption (max): 12.95 W
Power consumption (Power over Ethernet (PoE)): 7.9 W
DC output voltage: 10, 28

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Diameter: 13.2 cm
Length: 280 mm
Weight: 1.2 kg

Packaging content

Number of cameras: 1
