„Axis 02315-001 PoE“ adapteris

Axis 02315-001. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3bt. Product colour: Black. Power over Ethernet (PoE) voltage: 1000 V, Input current: 2 A, Power consumption (max): 95 W. Width: 27 mm, Depth: 94 mm, Height: 35 mm

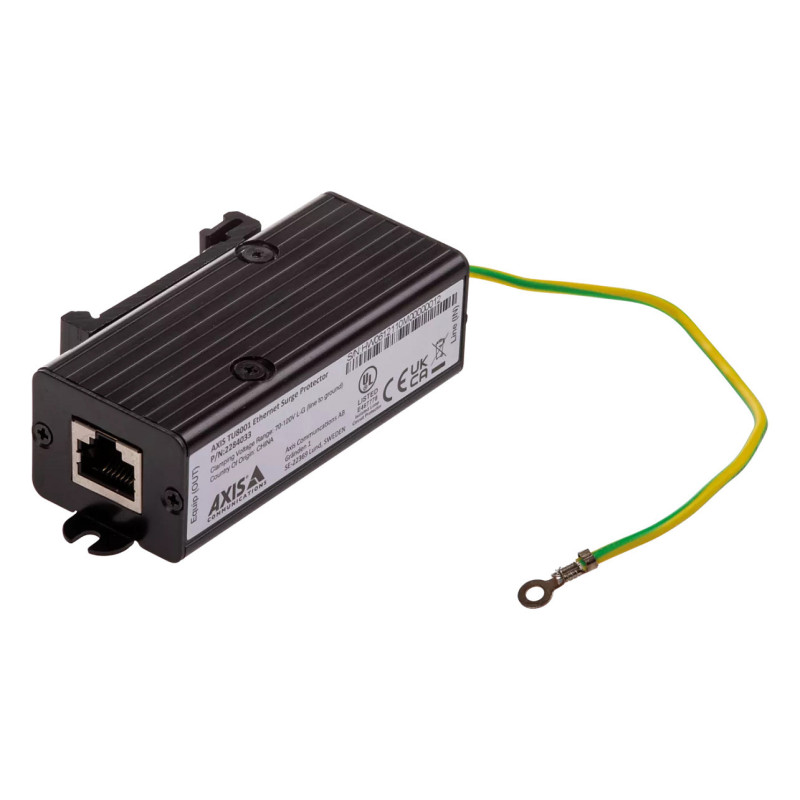

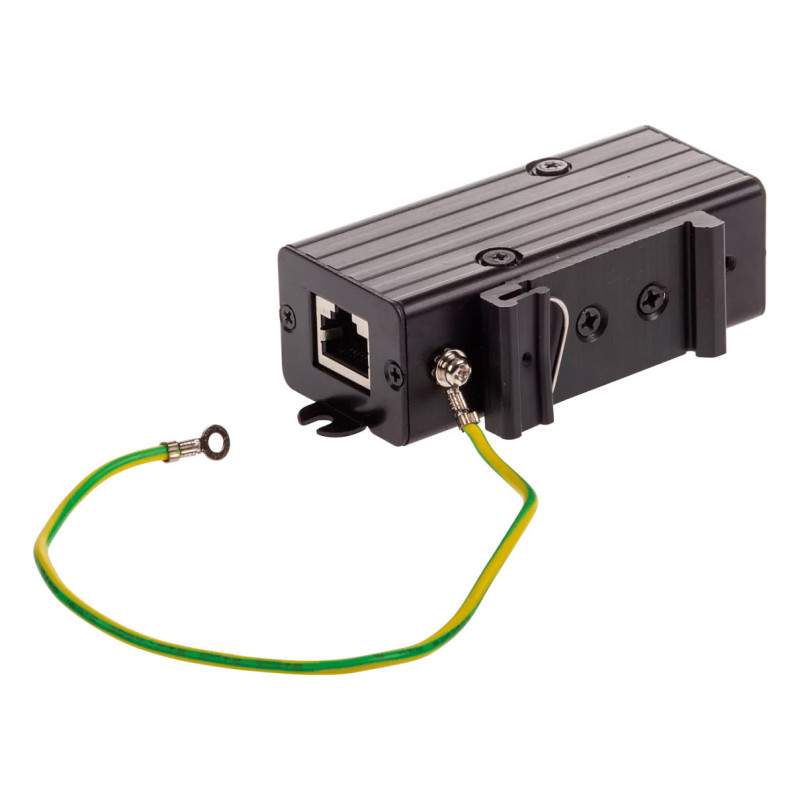

AXIS TU8001 Ethernet Surge Protector helps reduce system downtime, service and maintenance by shielding PoE devices against transient voltage spikes in the Ethernet cable. It is a compact, high-quality product validated to work seamlessly with Axis devices. AXIS TU8001 can be installed close to a PoE switch located indoors or in an outdoor electrical enclosure cabinet adjacent to a network camera or another device. Placing it in an enclosure, you get less exposed wiring, simpler troubleshooting of the whole system and less hardware visible on the pole. The product can be easily mounted on a wall or on a DIN rail.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3bt

Features

Product colour: Black
Feature: Wall mountable
Feature: Surge protection

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RJ-45 input ports: 1

Power

Power over Ethernet (PoE) voltage: 1000 V
Input current: 2 A
Power consumption (max): 95 W

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 27 mm
Depth: 94 mm
Height: 35 mm
Weight: 80 g

Logistics data

Harmonized System (HS) code: 85044095
