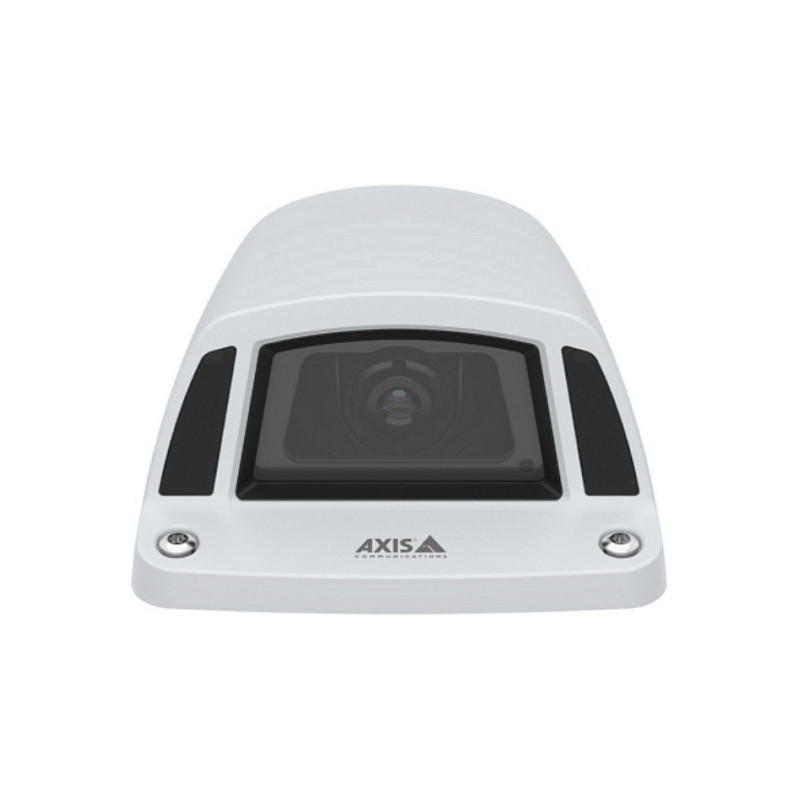

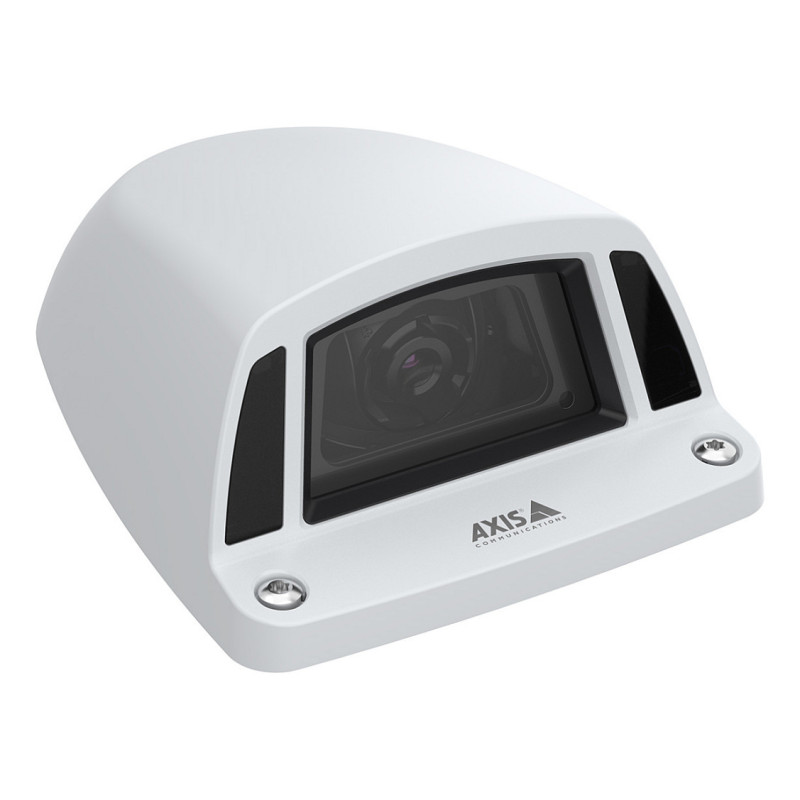

Axis 02090-001 apsaugos kamera

Axis 02090-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Aluminium, Tempered glass. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Night vision distance: 20 m, Infra-red wavelength: 850 nm

AXIS P3925-LRE specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips. This robust and compact camera features a tempered glass window and complies with transport industry standards and IK10+, IP66, IP67, and IP6K9K. It delivers HDTV 1080p with Lightfinder for color images in poor light and Forensic WDR for maximal forensic usability in mixed light conditions. Plus, built-in IR Illumination enables monitoring in complete darkness. Furthermore, it supports exchangeable lenses for full flexibility.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Number of languages: 11
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium, Tempered glass
International Protection (IP) code: IP66, IP67
IK code: IK10+
Feature: Fog proof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.02 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 56°
Lens viewing angle, vertical: 30°
Tilt angle range: 0 - 50°
Pan range: -20 - 20°
Camera shutter speed: 1/33500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1

Night vision

Feature: Night vision
Night vision distance: 20 m
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes: 720p
Frame rate: 45 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Sharpness
Feature: Privacy masking
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: Quality of Service (QoS) support
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: 802.1x RADIUS
Feature: HTTPS encryption
Alert notification type: E-mail

Power

Power source type: PoE
Power consumption (typical): 6.3 W
Power consumption (max): 11.8 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 160 mm
Depth: 116 mm
Height: 63 mm
Weight: 770 g

Packaging content

Number of cameras: 1
Feature: Manual

Other features

Doesn't contain: PVC

Logistics data

Harmonized System (HS) code: 85258900
