„Axis 02060-001“ apsaugos kamera

Axis 02060-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 3.2 mm

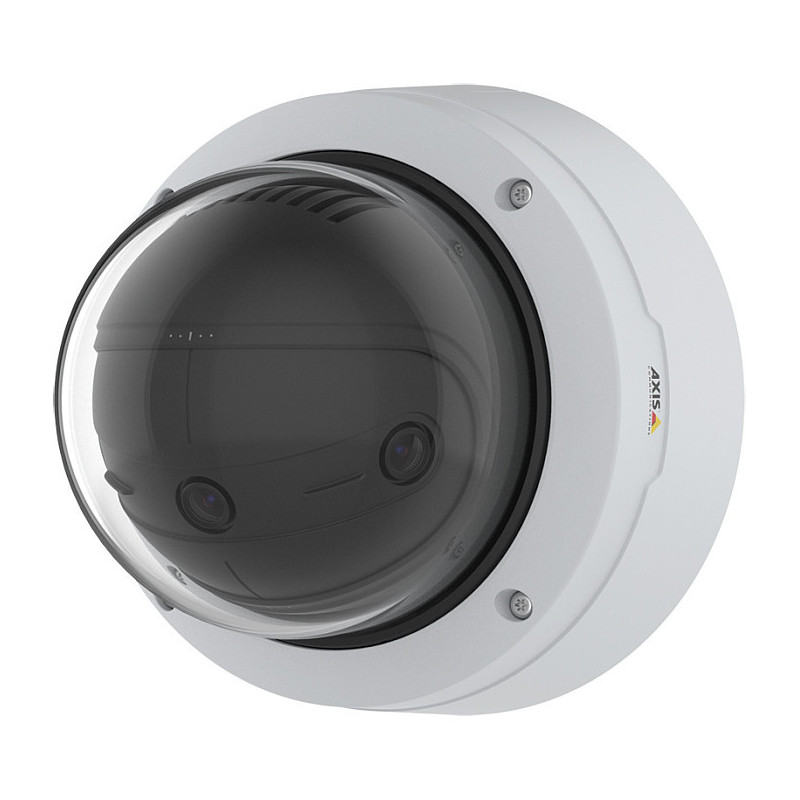

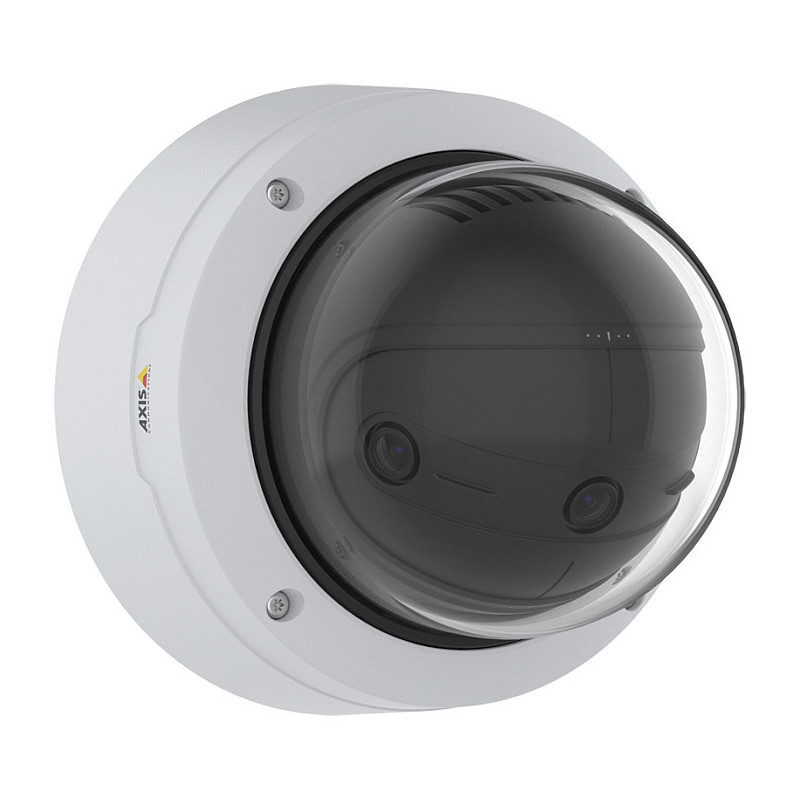

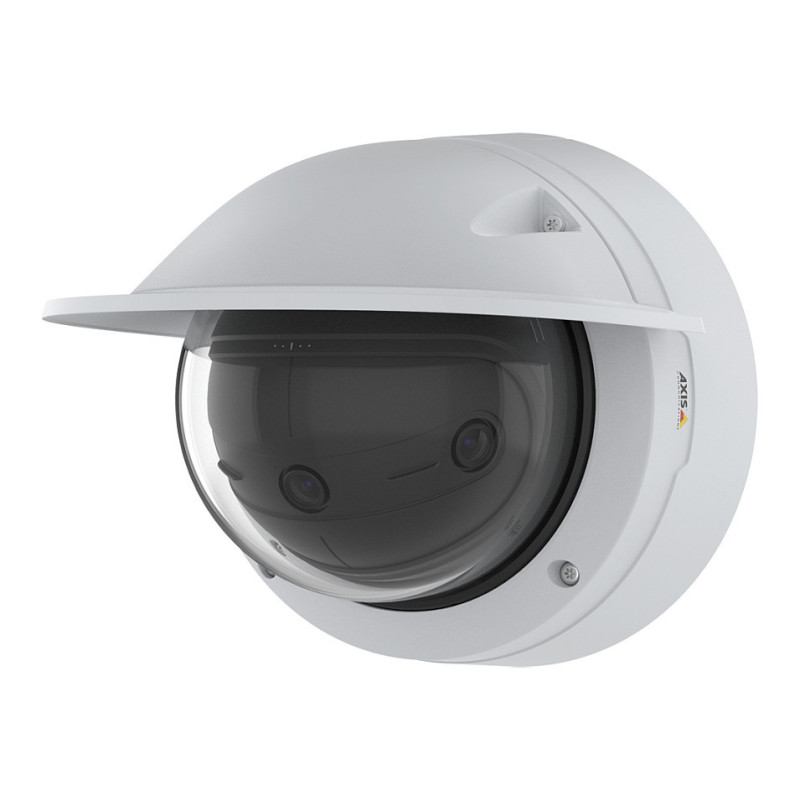

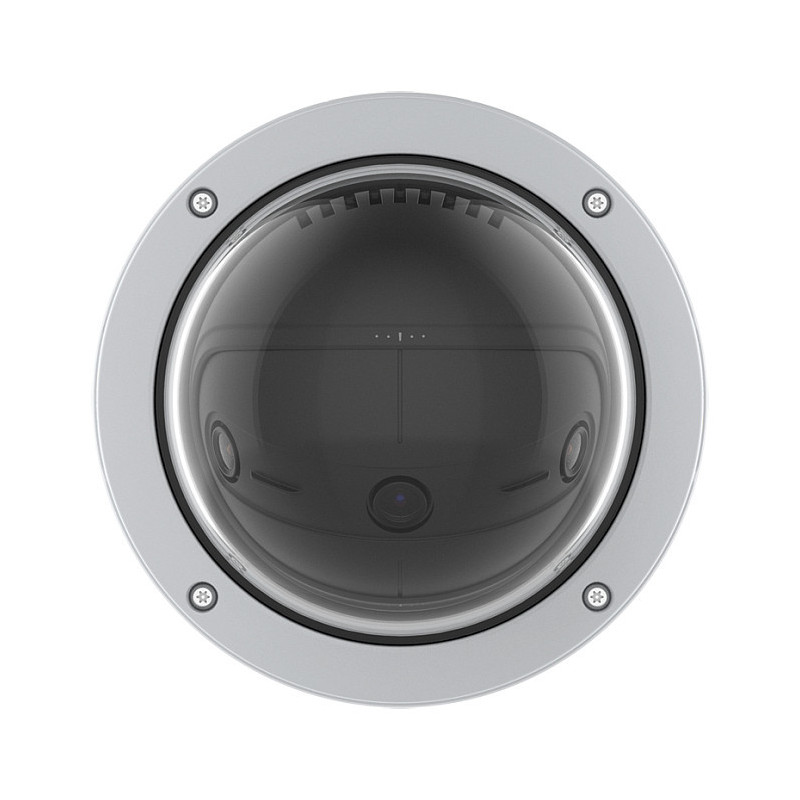

AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it's also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount. Featuring edge-to-edge technology, it's easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 11
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Mounting type: Ceiling/wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.05 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 90°
Tilt angle range: 0 - 50°
Pan range: -180 - 180°
Camera shutter speed: 1/91000 - 1/25, 1/50000 - 1/25 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Maximum aperture number: 2
Fixed focal length: 3.2 mm

Video

Maximum resolution: 5120 x 2560 pixels
Total megapixels: 13 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Audio

Audio system: 2-way
Voice codecs: G.711, G.726, OPUS

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: EAP-TLS, FIPS 140-2
Feature: HTTPS encryption

Management features

Feature: Web-based management

Power

Power source type: PoE
Power consumption (typical): 11 W
Power consumption (max): 18 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 206 mm
Height: 221 mm
Weight: 2.2 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
