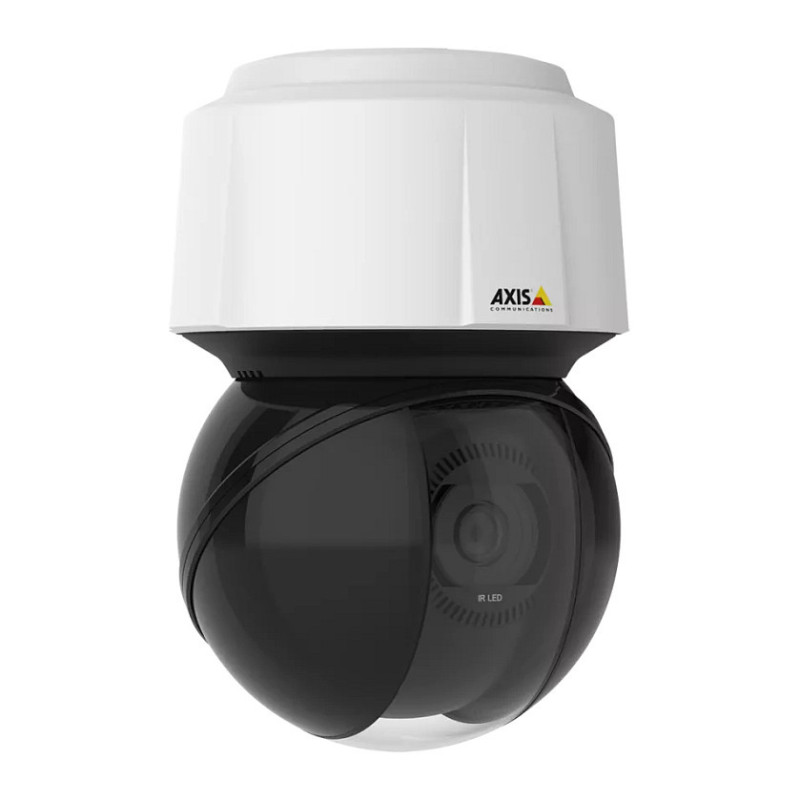

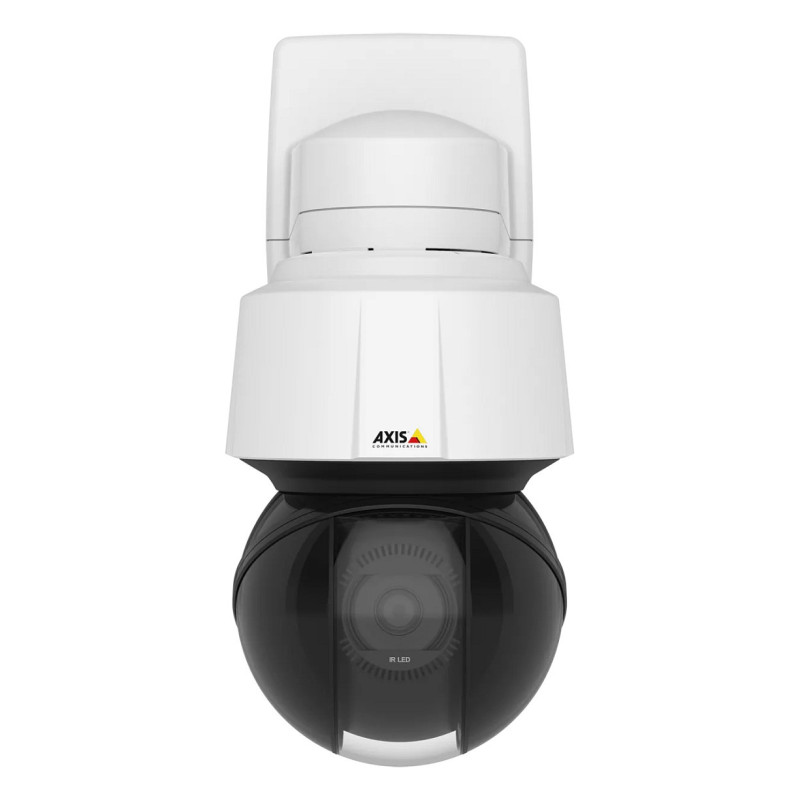

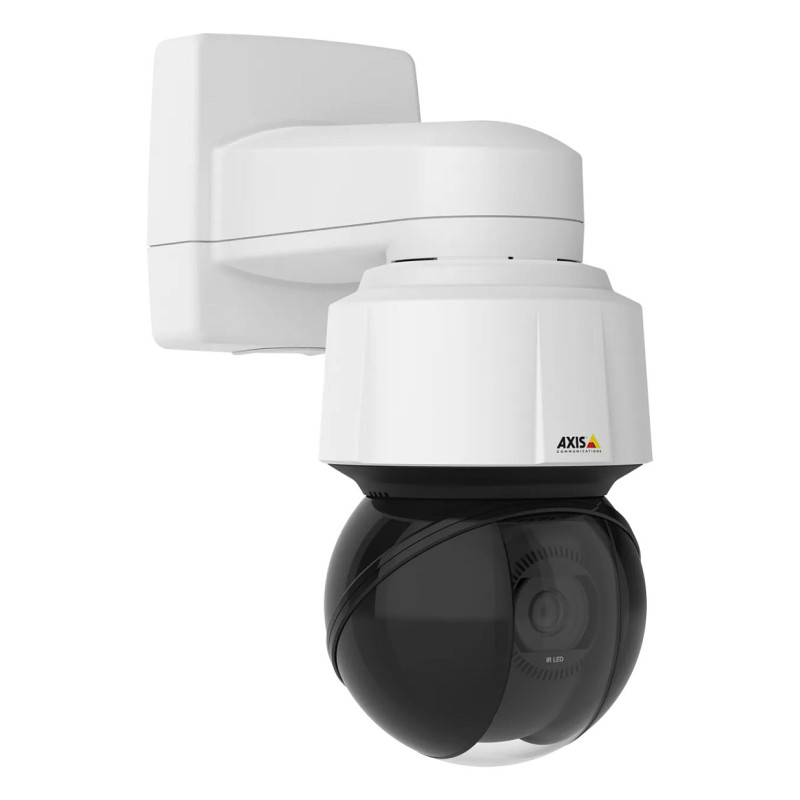

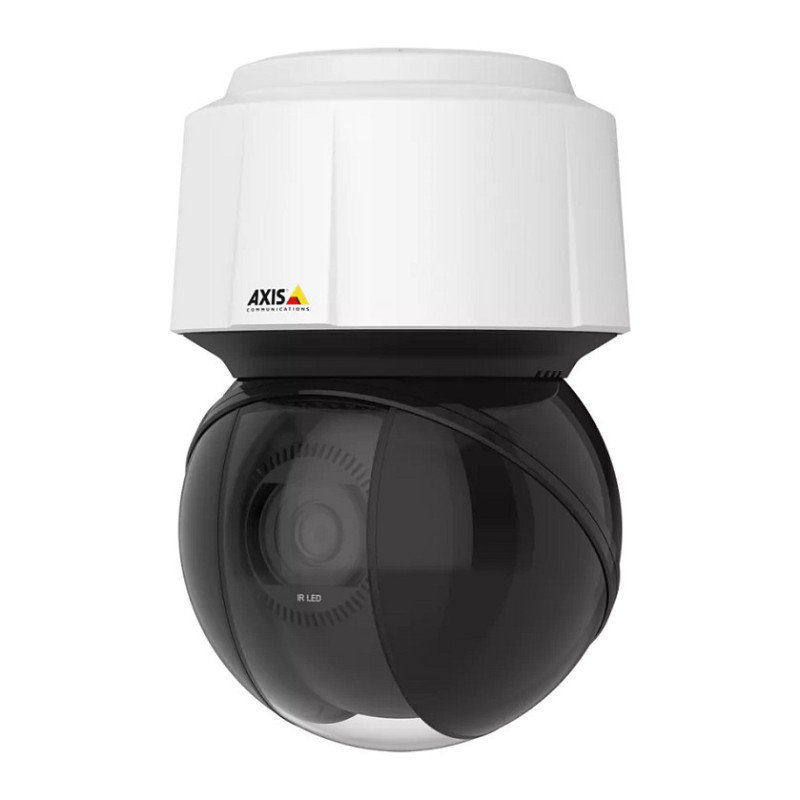

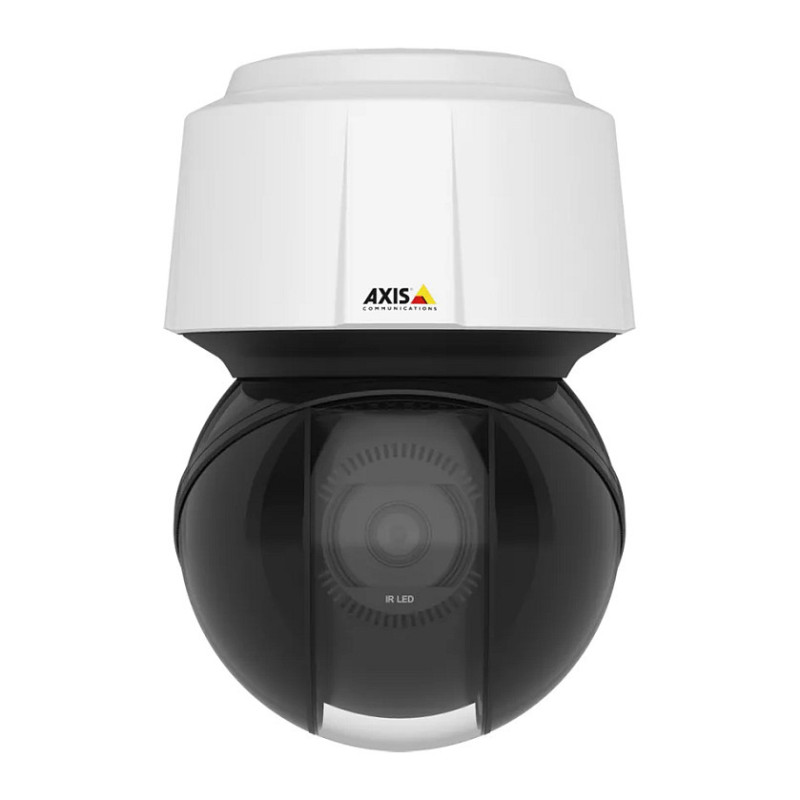

„Axis 01958-003“ apsaugos kamera

Axis 01958-003. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 58.3°, Lens viewing angle, vertical: 34.9°, Tilt angle range: -90 - 20°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Preset point
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Number of languages: 11
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Form factor: Dome
Mounting type: Wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK08

Camera

Lens viewing angle, horizontal: 58.3°
Lens viewing angle, vertical: 34.9°
Tilt angle range: -90 - 20°
Pan range: 0 - 360°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 32x
Digital zoom: 12x
Number of lenses: 1

Night vision

Feature: Night vision
Night vision distance: 250 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 180
Supported video modes: 1080p
Feature: Video recording
Frame rate: 60 fps
Feature: Video intelligence analytic
Feature: Video streaming
Feature: Text caption overlay

Audio

Audio system: 2-way
Audio input channels: 2.0 channels

Network

Feature: Ethernet LAN

Storage

Feature: Built-in HDD
HDD capacity: 1 GB
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Security

Feature: IP address filtering
Security algorithms: EAP-TLS, HTTPS
Feature: HTTPS encryption
Alert notification type: E-mail, Snapshot alert message
Feature: Pixel counter

Power

Power source type: PoE
AC input voltage: 100 - 240 V
Power consumption (typical): 13.5 W
Power consumption (max): 74 W
Power consumption (Power over Ethernet (PoE)): 74 W

Operational conditions

Operating temperature (T-T): -50 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 241 mm
Diameter: 16.5 cm
Weight: 3 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
