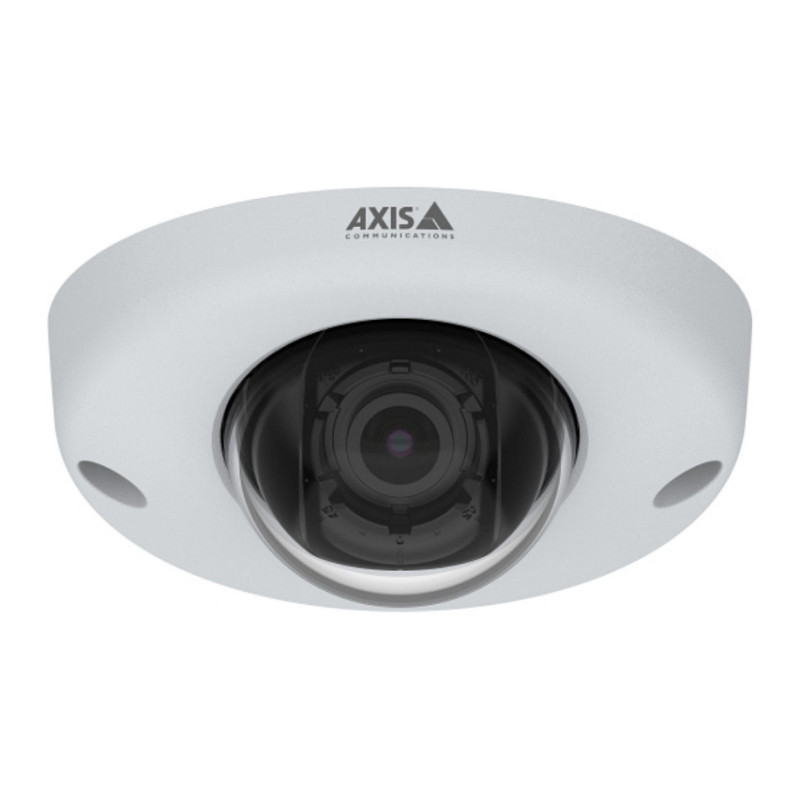

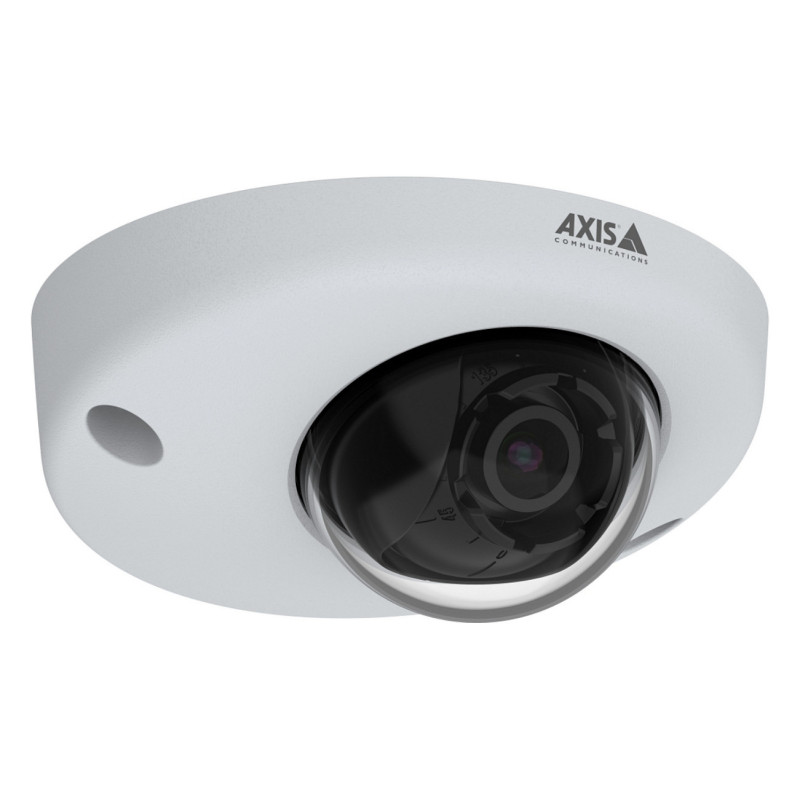

„Axis 01933-001“ apsaugos kamera

Axis 01933-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm

Specifically designed for onboard surveillance, AXIS P3925-R complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera offers extended capabilities for analytics. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.

Performance

Type: IP security camera
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66, IP67
IK code: IK10
Feature: Fog proof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.01 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 62°
Tilt angle range: 15 - 90°
Pan range: -30 - 30°
Camera shutter speed: 1/33500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 45 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Sharpness
Feature: Privacy masking
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Variable Bit Rate (VBR)

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users: 8 user(s)
Feature: Quality of Service (QoS) support
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption

Power

Power source type: PoE
Power consumption (typical): 4.2 W
Power consumption (max): 6.4 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 110 mm
Depth: 110 mm
Height: 49.5 mm
Weight: 410 g

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
