„Axis 01535-001“ tinklo komutatorius

Axis 01535-001. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Networking standards: IEEE 802.3at. Power over Ethernet (PoE)

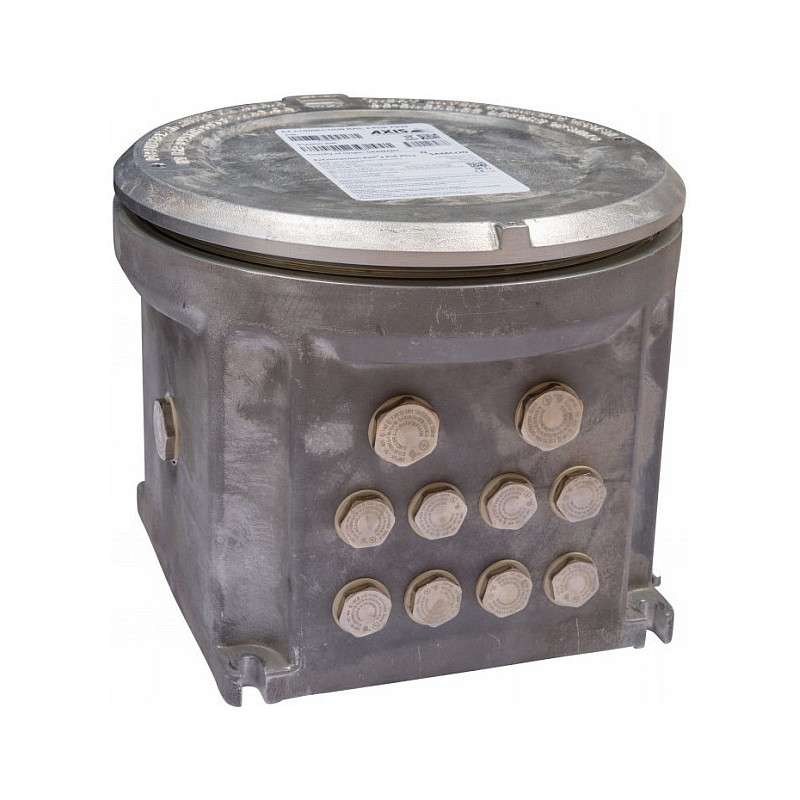

Ex Connection Rail 4-Port PoE is a high performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras over long distances. The network connection can be realized via optical fiber or copper-bound Ethernet, and is available for single-mode or multi-mode fiber. The power supply provides additional power to the cameras heater to extend the temperature range. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.3at
Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX

Design

Product colour: Aluminium
Housing material: Aluminium

Power

AC input voltage: 100 - 240 V
Output voltage: 24 V

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -60 - 50 °C
Storage temperature (T-T): -60 - 50 °C
Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

Width: 289 mm
Depth: 289 mm
Height: 227 mm
Weight: 16 kg

Certificates

Certification: ATEX, IECEx, EAC

Logistics data

Harmonized System (HS) code: 85176990
