Ubiquiti UniFi EAV-Fiber

Ubiquiti UniFi EAV-Fiber. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 800 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC-in jack. Rack mounting, Form factor: 1U

Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

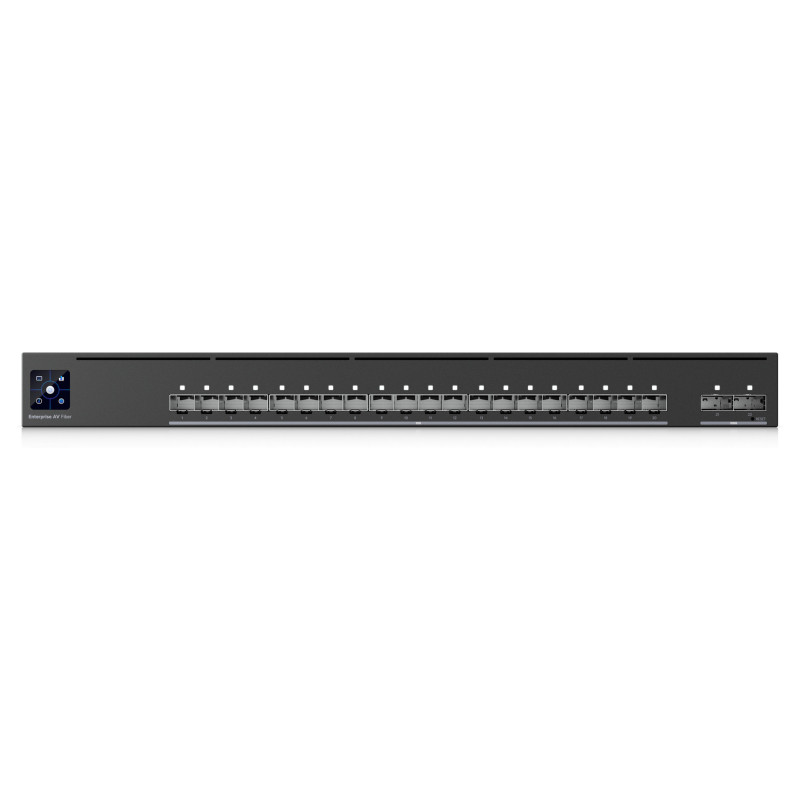

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 1
SFP+ module slots quantity: 20
Fiber ports quantity: 22
Fiber optic connector: SFP+, QSFP28
Console port: RJ-45
QSFP28 ports quantity: 2
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1x
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Ethernet LAN data rates: 10,100,1000 Mbit/s
IPv4 routes: 512
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 1000

Data transmission

Switching capacity: 800 Gbit/s
Throughput: 400 Gbit/s
Forwarding rate: 595 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 8 MB

Security

DHCP features: DHCP server, DHCP relay, DHCP guarding, DHCP snooping
Access Control List (ACL) IPv4 entries: 256
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

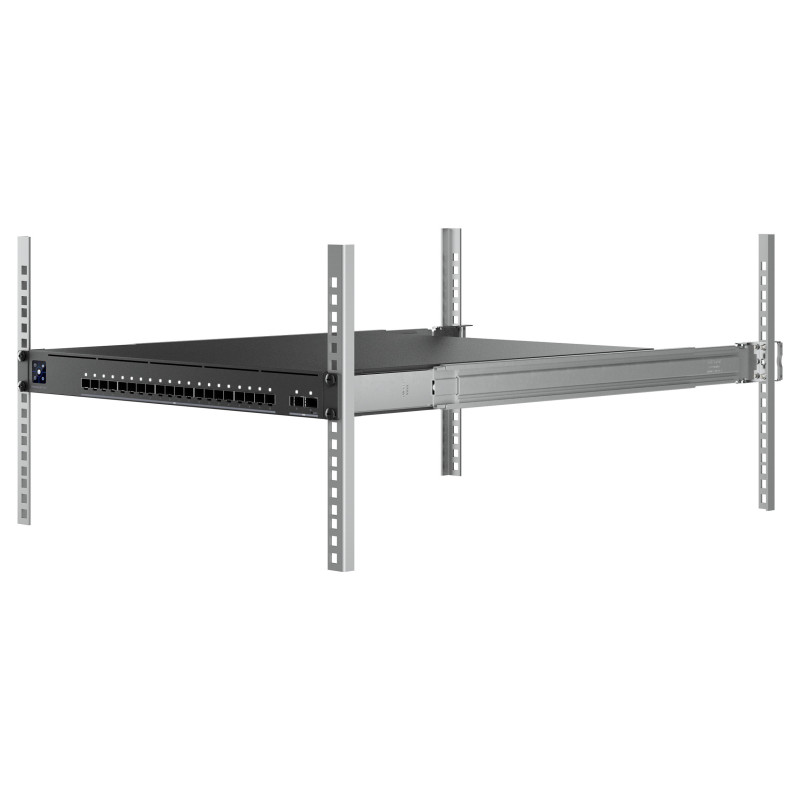

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: SGCC
Feature: Reset button
LED indicators: Fan, Power, LAN
Display type: LCM

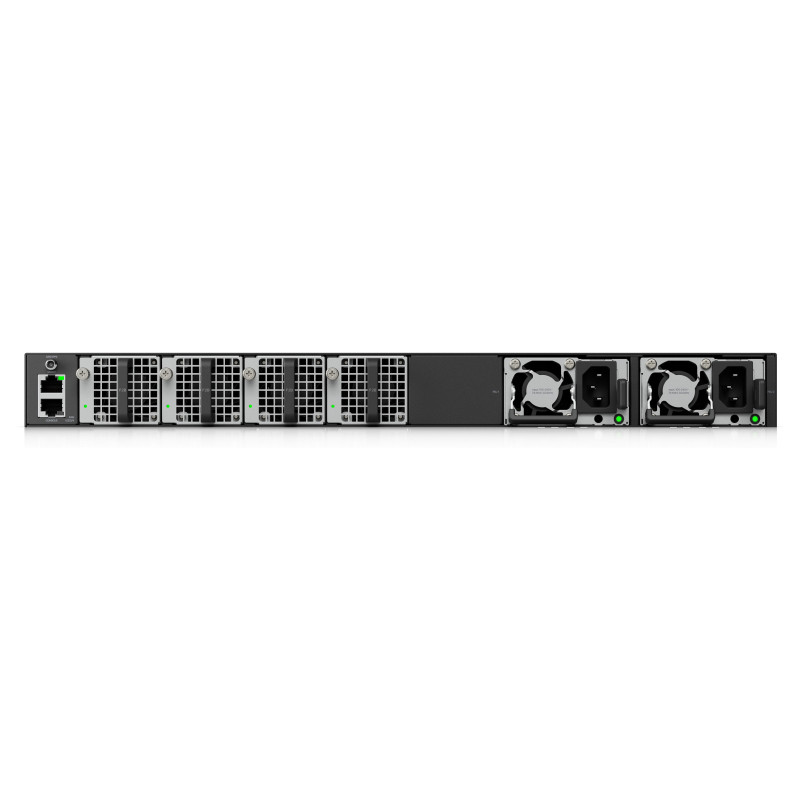

Power

Power source: AC
Feature: Power supply included
Number of power supply units: 2
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 150 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 512 BTU/h

Weight & dimensions

Width: 442.4 mm
Depth: 480 mm
Height: 43.7 mm
Weight: 8.95 kg

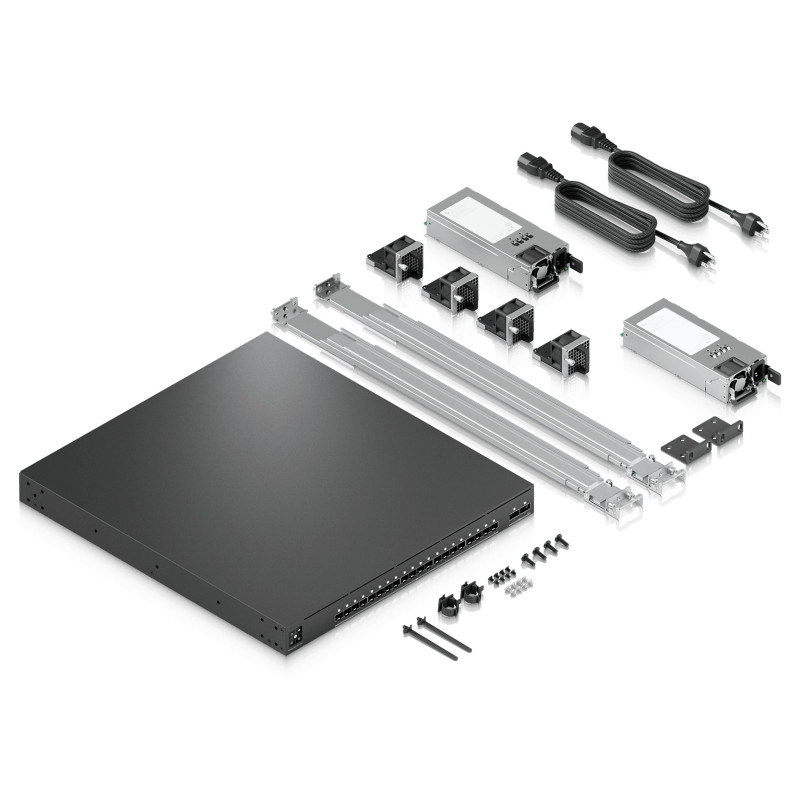

Packaging content

Cables included: AC
Feature: Rack mount kit

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
