ASSMANN elektroninis tinklo komutatorius DN-650106

ASSMANN Electronic DN-650106. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 48 V. Wall mountable

Ports & interfaces

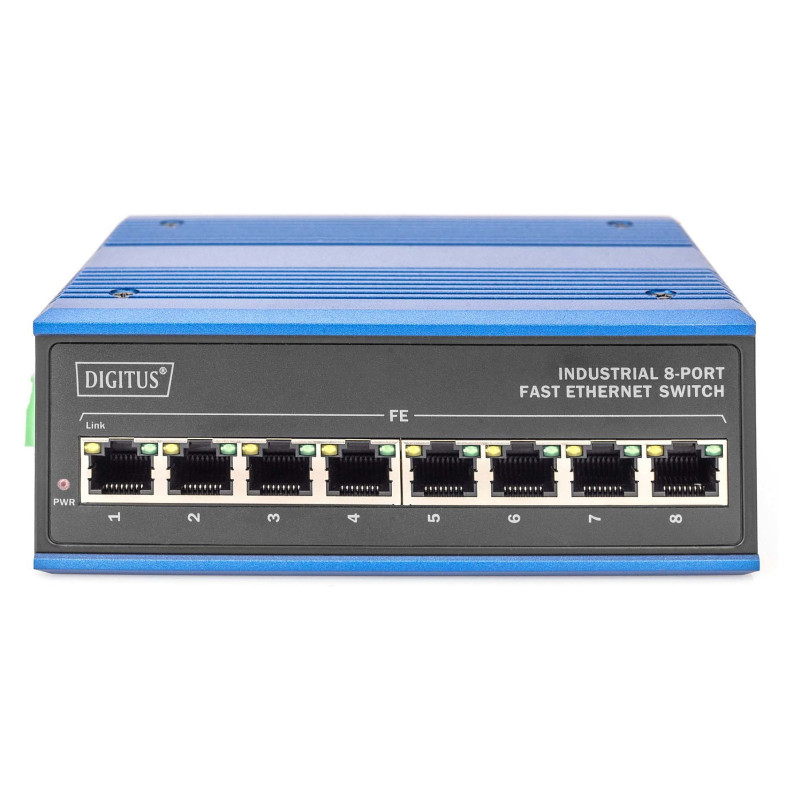

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 1.6 Gbit/s
MAC address table: 2000 entries
Feature: Store-and-forward

Design

Product colour: Black, Blue
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable

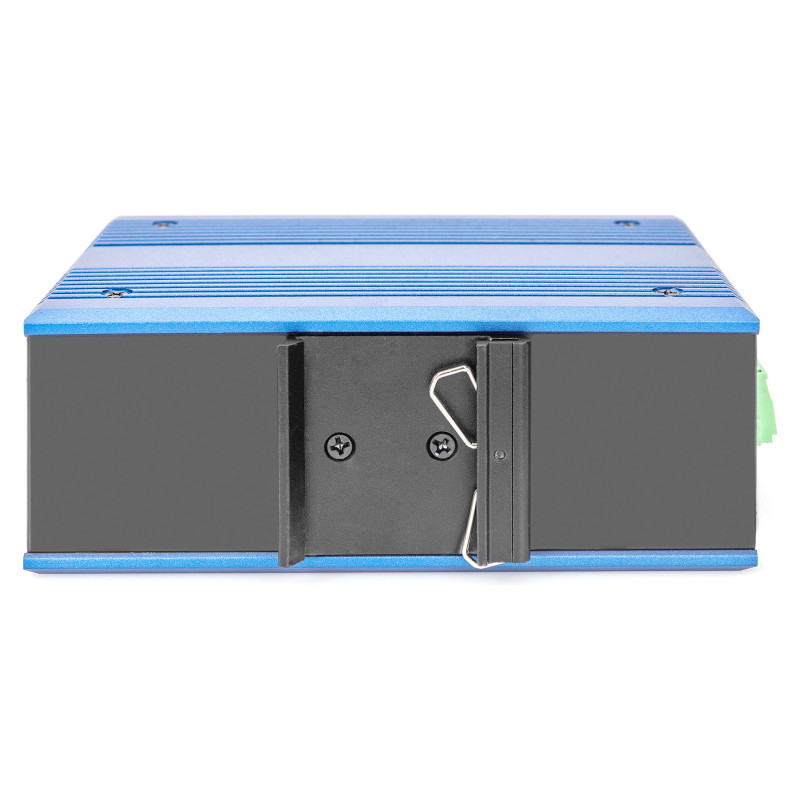

Feature: DIN rail mounting
Number of fans: 0 fan(s)

Performance

Mean time between failures (MTBF): 300000 h

Power

Feature: Redundant power supply (RPS) support

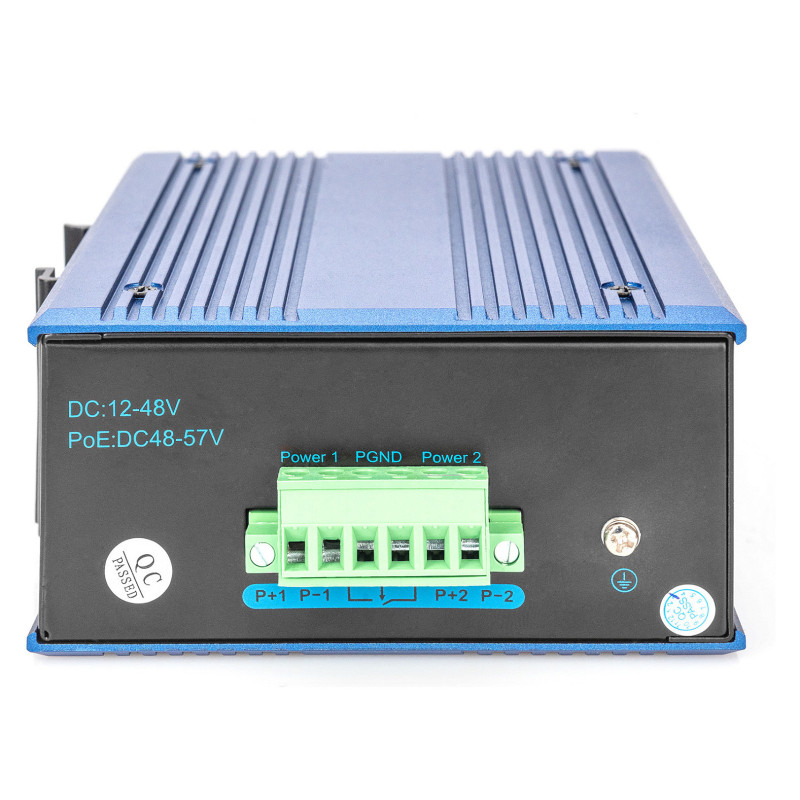

DC input voltage: 12 - 48 V

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 120 mm
Depth: 157 mm
Height: 48 mm

Packaging content

Feature: User guide

Logistics data

Harmonized System (HS) code: 85176990
